1.4 Agents window

The Agents window is used to display reports related to agents and to check alarm status and event history. By using the Quick Guide, you can create brief reports or set up alarms.

You also use this window to add new agents, edit a monitoring agents tree, and bind agents and an alarm table.

To display this window, in the navigation frame in any PFM - Web Console window, click the Agents tab.

The following figure shows the Agents window.

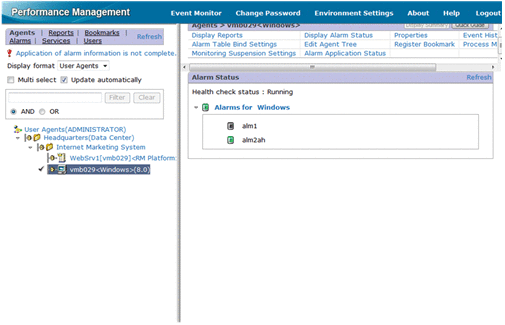

Figure 1‒12: Agents window (when the business group access control functionality is disabled)

The following describes the displayed items:

Menu bar frame

Displays a menu that is common to all windows.

For details, see the description of the menu bar frame in 1.3 Main window.

Navigation frame

Displays hierarchically the agents managed by Performance Management.

You can select the format for displaying the agents tree.

Except for the following items, the items are the same as the items in the navigation frame of the Main window. For details, see 1.3 Main window.

Message area

A message is displayed when alarm information has not been completely applied. Click the message to display the Alarm Application Status window.

Display format

Enables you to select the display format for the agents tree. The available display formats are as follows:

Products

Displays the agents tree grouped by PFM - Agent or PFM - RM products.
User Agents

Displays any Agents tree created by the login user.

Multi select

Selecting this check box enables you to select multiple target agents from the agents tree to execute the same operation on all the selected agents. This check box is cleared as a default.

Tip: If you click the root or a folder when Multi select is selected, you can select or clear all nodes under the root or selected folder. If you click a folder in which all or some nodes are cleared, all nodes under the folder are selected. However, if you click a folder that contains only selected nodes, all of the nodes under the folder are cleared. If there are any subfolders under the folder you click, the status of the nodes contained in the subfolders also changes. In short, you can switch the selection status of all nodes contained in a tree by clicking the root.

Update automatically

When you select this check box, the agent status and the health check status displayed in the navigation frame are automatically updated. This check box is selected by default.

Display separately by business group

Displayed when the business group access control functionality is enabled, and Products is set for Indication Settings. If you select this item, agent trees are displayed separately by business group. By default, this check box is cleared.

Text box

Use this text box to filter agents by keywords. Specify a character string of 1 to 1,024 characters to filter the agents that will be displayed. To perform a multi-keyword search by using AND or OR, delimit keywords by using a single-byte space, a two-byte space, or a tab. A delimiter is counted as one word. The maximum number of words that can be entered as filtering keywords is 100.

Filter button

Filters agents by using the string specified in the text box.

Clear button

Clears the filtering status and the filtering condition.

AND

Select this option button to perform an AND search.

OR

Select this option button to perform an OR search.

Agents tree:

The display differs depending on whether you select Products or User Agents in Display format:

When Products is selected in Display format

The root is Products. On the second level of the hierarchy, folders with the product names of PFM - Agent or PFM - RM are displayed in alphabetical order. The agents are displayed on the third level of the hierarchy. For each agent, its service ID is displayed. In the case of a product with multiple data model versions, service-ID + (data model version) is displayed.

For details about service IDs, see the section that explains the naming rules of services in the appendix of the JP1/Performance Management Planning and Configuration Guide.
When User Agents is selected in Display format

The root is User Agents (login-user-name). Levels 2 through n of the hierarchy display the folders created by the login user. Each monitoring agent is displayed at its applicable hierarchical level. The name of each agent is shown as service-ID + (data-model-version).

For details about service IDs, see the section that explains the naming rules of services in the appendix of the JP1/Performance Management Planning and Configuration Guide.

When Products is selected in Display format, if PFM - Agent or PFM - RM has not been registered with a monitoring agent for which a PFM - Agent or PFM - RM other than PFM - Agent for Platform has been installed (the jpcconf agent setup command has not been executed), that agent is displayed under the folder named Unknown. When you add a new PFM - Agent or PFM - RM product, you must restart the Performance Management service. After the restart, product information is acquired again when PFM - Web Console is accessed.

Icons

An icon is displayed to the left of each component of the Agents tree. For details about icons, see Table 1-10 Configuration component icons and their meaning.

These icons have the following meanings:

: Indicates the root.
: Indicates a folder.
: Indicates a monitoring agent.
: Indicates the Remote Monitor Collector service.
: Indicates a remote agent.
: Indicates a group agent.

Icons also indicate each agent's status.

: Normal status
: Warning status
: Abnormal status
: Monitoring suspended status
: Indicates that the status of the agent is either of the following, and that there is no substance:

- Agent service information was deleted, after which PFM - Web Console was updated by the jpctool service sync command.

- Because of configuration changes in a business group, the user's reference privilege for agents was deleted.

This icon is displayed only when User Agents is selected in Indication Settings. You cannot perform any agent operation for an agent with a translucent icon.

A health check status icon is displayed to the left of folder icons and agent icons. Note that group agents and agents without substance are not included in health checks. Therefore, the Not Supported icon is always displayed as the health check status for them.

For details about the health check status, see the chapter that explains error detection of Performance Management in the JP1/Performance Management User's Guide.

: Not Supported
: Running
: Monitoring suspended
: Incomplete
: Stopped
: Unconfirmed
: Host Not Available

The status of a folder icon reflects the status of all the lower-level agents. As the health check status, only the status with the highest priority in a lower level of the folder appears. The display order by priority is as follows:

Host Not Available > Unconfirmed > Stopped > Incomplete > Monitoring suspended > Running > Not Supported

You can use config.xml to change the priority of the lower-level status propagated to a folder. For details about config.xml, see Initialization file (config.xml).

The displayed statuses are updated at the following times:

When Refresh is clicked in the navigation frame.
When a monitoring agent is clicked in the agents tree.
When the results of the operation selected in the method frame are displayed.

If Update automatically was selected, the statuses are refreshed automatically.

Note

For PFM - RM or PFM - Agent other than PFM - Agent for Platform, if you have not used the jpcwagtsetup command to register PFM - Agent or PFM - RM, icons for the reports will not be correctly displayed. To correctly display the icons, use the jpcwagtsetup command to register PFM - Agent or PFM - RM, and then restart PFM - Web Console.

Method frame

The agent name selected in the navigation frame is displayed as the title of the method frame.

When multiple agents are selected, the agents are displayed in the order in which they were selected. When four or more agents are selected, the number of selected agents is displayed instead of the agent names. If some agent names are duplicated, the number of unique agent names is displayed. Clicking the link for the number of agents opens the List of Selected Agents window as a new window.

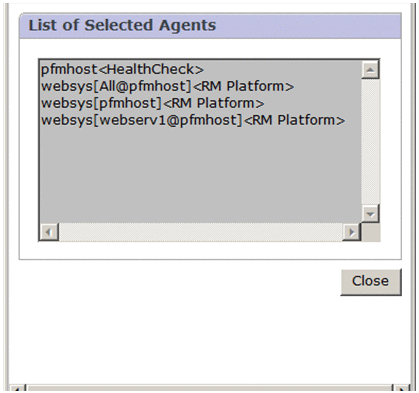

Figure 1‒13: List of Selected Agents window

The following describes the items in the List of Selected Agents window:

List of Selected Agents: Lists the agent names selected in the navigation frame.
Close button: Closes the List of Selected Agents window.

The following describes the items displayed in the method frame of the Agents window. Displays the operations that can be executed on each agent in the agents tree. The operation items that are displayed depend on the selected object.

Display Summary

Lists the operating statuses of the agents selected in the navigation frame.

Quick Guide

Enables you to create brief reports or set up alarms.

Display Reports

Displays reports related to the selected monitoring agent. This item is displayed when a monitoring agent is selected in the navigation frame. You can select multiple agents of the same product.

When you choose this item, the View Report window appears. By switching the reports tree and the bookmarks tree in the information frame, you can display the report of a specific bookmark or combination bookmark. However, note that if you select a report from the bookmarks tree, the monitoring agent selected in the navigation frame is ignored.

Display Alarm Status

Displays the alarm status in the alarm table bound to (associated with) the selected monitoring agent. This item is displayed when only one monitoring agent is selected in the navigation frame. Choosing this item displays the Alarm Status window.

Properties

Displays the selected monitoring agent service (Agent Collector and Remote Monitor Collector services) or the properties of the remote agent or group agent. This item is displayed when only one monitoring agent is selected in the navigation frame. Choosing this item displays the Service Properties window, which displays the same information that is displayed in the Service Properties window displayed from the Services window. However, when the Properties window is displayed from this item, properties cannot be changed.

Event History

Displays event log information for the monitoring agents. Choosing this item displays the Event History window. If a monitoring agent is selected in the Navigation frame, event log information for the selected monitoring agent is displayed; if no agent is selected, event log information for all the monitoring agents is displayed.

Alarm Table Bind Settings (When the functionality for binding multiple alarm tables is enabled)

Binds (associates) or unbinds (releases the association between) an alarm table and monitoring agents when PFM - Web Console 09-00 or later is used. This item is displayed when a monitoring agent is selected in the Navigation frame. This item is displayed only when the login user has the administrator user permission.

You can select multiple agents for the same product. You can bind or unbind multiple alarm tables to one monitoring agent.

Choosing this item displays the Alarm Table Bind Settings [Select Alarm Tables] window.

Bind Alarm Table (When the functionality for binding multiple alarm tables is disabled)

Binds (associates) an alarm table and monitoring agents. This item is displayed when a monitoring agent is selected in the Navigation frame. This item is displayed only when the login user has the administrator user permission.

You can select multiple agents of the same product. Note that only one alarm table can be bound to a monitoring agent.

If this operation is executed on an agent to which an alarm table has already been bound, the more recent alarm table binding takes effect.

Choosing this item switches to the Bind Alarm Table [Select Alarm Tables] window.

UnBind Alarm Table

Unbinds (releases association between) an alarm table and monitoring agents. This item is displayed when a monitoring agent is selected in the Navigation frame. This item is displayed only when the login user has the administrator user permission.

You can select multiple agents for the same product. Choosing this item displays a message box for confirming execution of the unbinding operation.

Edit Agent Tree

Edits the agents tree. Choosing this item displays the Edit Agent Tree window, in which you can create new components and copy, delete, and rename folders in the Agents tree.

Register Bookmark

Registers a report located in the agent tree as a bookmark. Choosing this item opens the Regist Bookmark > Select Report window, in which clicking a report opens the Bookmark window.

Process Monitoring Settings

Specifies the process monitoring settings for PFM - Agent for Platform and PFM - RM for Platform. Choosing this item switches to the Process Monitoring Settings window.

Monitoring Suspension Settings

Suspends or resumes monitoring. Choosing this item switches to the Monitoring Suspension Settings window.

Alarm Application Status

Checks the alarm application status and applies alarm information. Choosing this item switches to the Alarm Application Status window.

Information frame

Displays the results of the operation selected in the method frame on the object(s) selected in the Navigation frame.

Immediately after you log in, the operation status is listed for all agents displayed when User Agents is selected in Display format (Display Summary).
