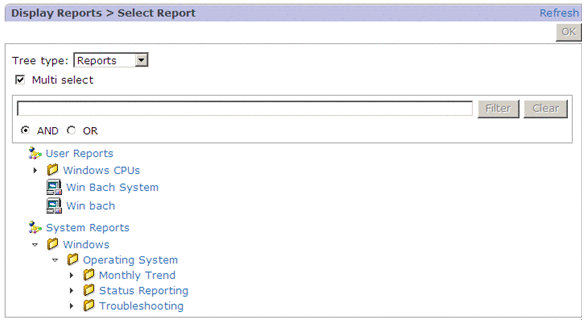

1.4.4 Display Reports > Select Report window

Refreshes the information displayed in the contents area. Refreshing the information does not change the selection status in the Reports tree.

This button is not available when Multi select is selected. The button is activated when you select a report in the reports tree in the contents area. Choosing this button displays the report selected in the reports tree in the contents area in a separate window. If multiple reports are selected, each report is displayed in a separate window.

You can select the information to be displayed in the contents area from the pull-down menu.

Selecting this check box enables you to select multiple reports from the reports tree. By clicking the root or a folder, you can select all the reports under the root or folder. By default, this check box is cleared.

Note that the check box is not displayed if multiple monitoring agents are selected in the navigation frame in the Agents window.

Tip

If you click the root or a folder when Multi select is selected, you can select or clear all nodes under the root or selected folder. If you click a folder in which all or some nodes are cleared, all nodes under the folder are selected. However, if you click a folder that contains only selected nodes, all of the nodes under the folder are cleared. If there are any subfolders under the folder you click, the status of the nodes contained in the subfolders also changes. In short, you can switch the selection status of all nodes contained in a tree by clicking the root.

Use this text box to filter reports by keywords. Specify a character string of 1 to 1,024 characters to filter the reports that will be displayed. To perform a multi-keyword AND or OR search, delimit keywords by using a single-byte space, a two-byte space, or a tab. A delimiter is counted as one word. The maximum number of words that can be entered as filtering keywords is 100.

Filters reports by using the string specified in the text box.

Clears the filtering status and the filtering condition.

Select this option button to perform an AND search.

Select this option button to perform an OR search.

Displays the Reports tree. The default is that System Reports is displayed as the root. Under System Reports, a folder for each PFM - Agent or PFM - RM program is displayed. Each folder contains the reports provided as the monitoring template. If the logged-on user has created his or her own reports, two levels, User Reports and System Reports, are displayed. The created folders and reports are displayed under User Reports.

Updates the information displayed in the contents area to the latest status. Updating the displayed information does not change the selection status in the reports tree.

You can select the information to be displayed in the contents area from the pull-down menu.

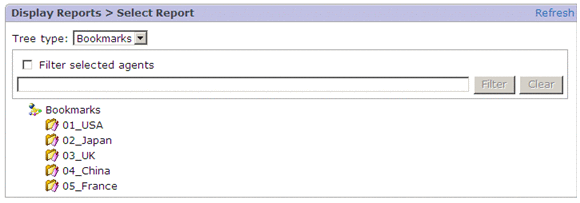

To filter displayed bookmarks by the agents selected in the navigation frame, select Filter selected agents. Bookmarks that contain an agent name selected in the navigation frame at that time are displayed. To cancel filtering, clear Filter selected agents.

Use this text box to filter bookmarks by keywords. Specify a character string of 1 to 1,024 characters to filter the bookmarks that will be displayed. To perform a multi-keyword AND search, delimit keywords by using a single-byte space, a two-byte space, or a tab. A delimiter is counted as one word. The maximum number of words that can be entered as filtering keywords is 100.

Filters bookmarks by using the string specified in the text box.

Clears the filtering status and the filtering condition.

The bookmarks tree appears. By default, Bookmarks is displayed as the root. The bookmarks or the combination bookmarks created by the logged-on user are displayed under Bookmarks.

When you select bookmarks from the bookmarks tree in the contents area, the reports that are registered as bookmark destinations are displayed in separate windows.
