1.4.9 Service Properties window
The Service Properties window displays the properties of the selected monitoring agent service (Agent Collector service, Remote Monitor Collector service, or each remote agent and group agent). To display this window, from the method frame in the Agent window, choose Properties. Note that the property settings cannot be changed in this window.

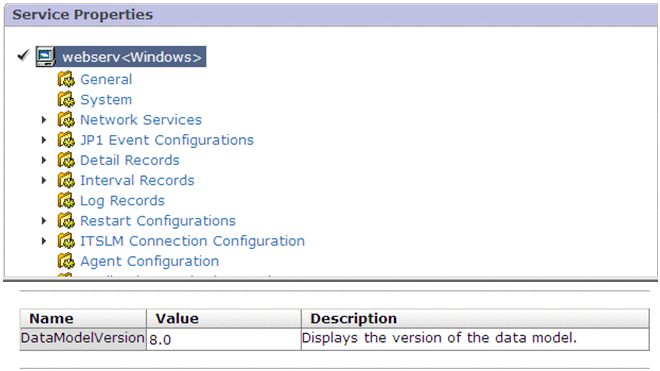

The following figure shows the Service Properties window.
|
|
![[Figure]](GRAPHICS/ZU201445.GIF)
The following describes the displayed items:
- Contents area
-
Displays hierarchically the properties of the selected monitoring agent service (Agent Collector service, Remote Monitor Collector service, or each remote agent and group agent). The properties of the monitoring agent service depend on the PFM - Agent or PFM - RM in use. For details, see the appropriate PFM - Agent or PFM - RM manuals.
- Property list area
-
Displays a list of properties when a node is selected in the contents area. The following items are displayed for each property:
- Name
-
Displays the name of the property item.
- Value
-
Displays system information, such as the OS, and the existing setting.
- Description
-
Displays a description of the property.
