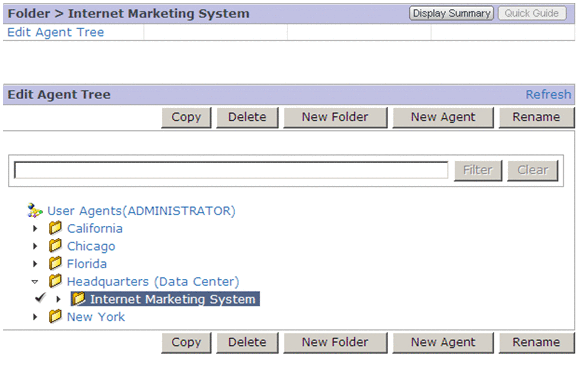

1.4.13 Edit Agent Tree window

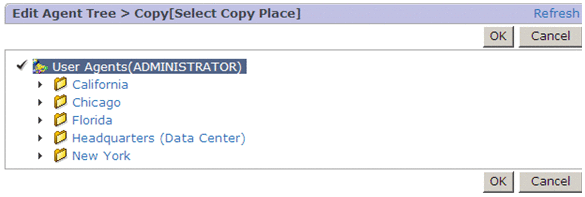

Updates the Edit Agent Tree > Copy [Select Copy Place] window to the latest status.

Copies the monitoring agent or folder selected as the copy source to the root or folder selected as the copy destination.

If any of the following is applicable to the folder at the copy destination, the copy operation will be disabled:

• The copy destination already contains a folder with the same name as the copy source folder.

• Copying the source will exceed the maximum number of hierarchies.

• Copying the source will exceed the maximum number of elements per node.

The maximum number of hierarchies is 8. In the root or a folder, the maximum number of folders is 64, and the maximum number of the agents is 128.

Cancels the operation.

Displays the Agents tree created by the login user. From the Agents tree displayed here, select the copy destination. The root or a folder can be selected.

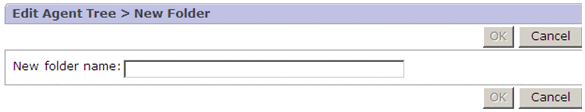

Adds a folder with the name entered in New folder name under the object selected in the Edit Agent Tree window.

If any of the following is applicable to the target folder, the new folder cannot be created:

• A folder with the name entered in New folder name already exists.

• Adding the folder will exceed the maximum number of hierarchies.

• Adding the folder will exceed the maximum number of folders that can be placed in the root or a folder.

The maximum number of hierarchies is 8. The maximum number of folders is 64.

Cancels the operation.

Enter a folder name by using 1 to 64 single-byte or two-byte characters.

You can enter both single-byte and two-byte characters for a folder name.

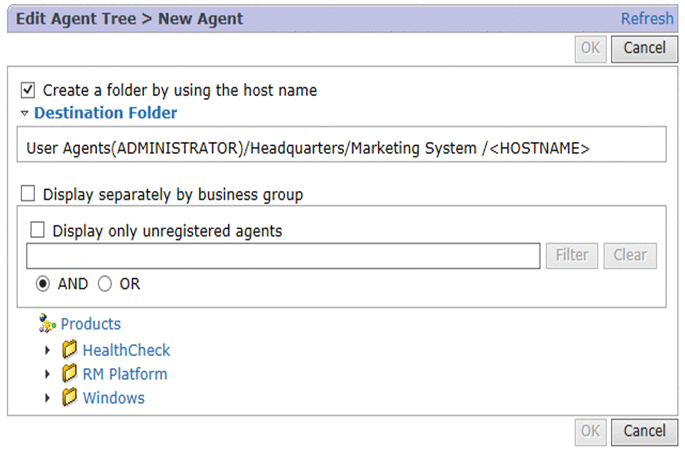

Updates the Edit Agent Tree > New Agent window to the latest status.

Adds under the object selected in the Edit Agent Tree window the monitoring agent selected in the contents area.

The maximum number of agents in the root or a folder is 128.

Cancels the operation.

To create a folder having the host name under the folder path for the User Agents tree to which the agent selected in this window is added, select the Create a folder by using the host name check box. If you do not want to add the host name to the folder path for the User Agents tree, clear the Create a folder by using the host name check box.

The host name varies depending on the agents added to the User Agents tree. If remoted agents are added, the name of the monitored host is added to the path. When other agents are added, the name of the monitoring host is added to the path.

Tip

After the agents are added, only the folder with the name of the host which the first of the added agents belongs to is opened.

Displays the path to the folder in the User Agents tree to which the agent selected in this window is added.

Displayed when the business group access control functionality is enabled.

If you select this check box, the tree for each business group is displayed.

Select this check box if you want to display only agents that are not registered in the User Agents tee. To display all agents, clear this check box.

Use this text box to filter agents by keywords. Specify a character string of 1 to 1,024 characters to filter the agents that will be displayed. To perform a multi-keyword search by using AND or OR, delimit keywords by using a single-byte space, a two-byte space, or a tab. A delimiter is counted as one word. The maximum number of words that can be entered as filtering keywords is 100.

Filters agents by using the string specified in the text box.

Clears the filtering status and the filtering condition.

Select this option button to perform an AND search.

Select this option button to perform an OR search.

Displays the Agents tree for products (the root is Products). From this Agents tree, select a monitoring agent that is to be managed in the desired Agents tree. You can select only a monitoring agent.

Tip

If you click the root or a folder, you can select or clear all nodes under the selected folder. If you click a folder in which all or some nodes are cleared, all nodes under the folder are selected. However, if you click a folder that contains only selected nodes, all nodes under the folder are cleared. If there are any subfolders under the folder you click, the status of the nodes contained in the subfolders also changes. In short, you can switch the selection status of all nodes contained in a tree by clicking the root.

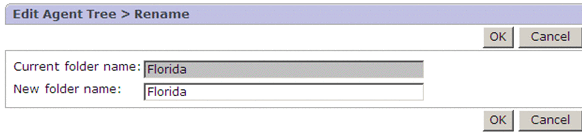

Renames the folder selected in the Edit Agent Tree window.

If a folder with the same name as the one you entered in New folder name already exists, you cannot change the folder name.

Cancels the operation.

Displays the selected folder's current name. You cannot make an entry in this field.

Enter a new folder name by using 1 to 64 single-byte or two-byte characters.

You can enter both single-byte and two-byte characters for a folder name.
