1.4.12 Bind Alarm Table [Select Alarm Tables] window
This window is displayed when the functionality for binding multiple alarm tables is disabled. This window is used to bind (associate) an alarm table and monitoring agents. To display this window, in the Agent window, from the method frame, choose Bind Alarm Table.

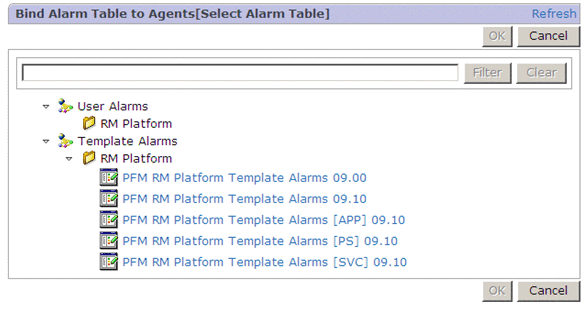

The following figure shows the Bind Alarm Table [Select Alarm Tables] window.
|
|
![[Figure]](GRAPHICS/ZU201460.GIF)
The following describes the displayed items:
- Refresh
-
Updates the Bind Alarm Table [Select Alarm Tables] window to the latest status.
- OK button
-
Binds the monitoring agent selected in the navigation frame in the Agent window to the alarm table selected in the contents area.
This button is enabled only when an alarm table is selected in the alarm table hierarchy.
- Cancel button
-
Cancels the operation.
- Text box
-
Use this text box to filter alarm tables by keywords. Note that this functionality cannot be used if the PFM - Manager version is 09-00 or earlier. Specify a character string of 1 to 1,024 characters to filter the alarm tables that will be displayed. To perform a multi-keyword AND search, delimit keywords by using a single-byte space, a two-byte space, or a tab. A delimiter is counted as one word. The maximum number of words that can be entered as filtering keywords is 100.
- Filter button
-
Filters alarm tables by using the string specified in the text box.
- Clear button
-
Clears the filtering status and the filtering condition.
- Contents area
-
Displays the alarm table hierarchy. From the alarm table hierarchy displayed here, select the alarm table you want to bind (associate).
