4.6 Process Configuration window

The Process Configuration window sets the process monitoring conditions. The following figure shows the Process Configuration window.

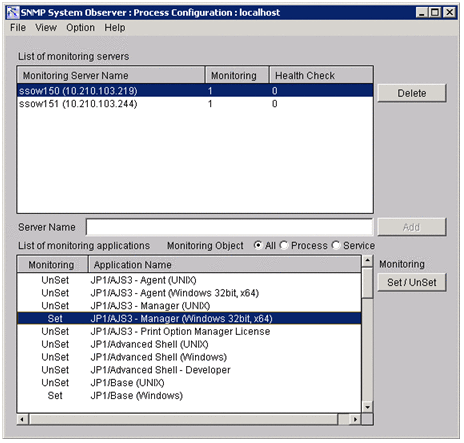

Figure 4‒64: Process Configuration window

[Figure]

If the Process Configuration window is already running, or the ssopsset command that sets monitoring conditions is being executed, you can start the Process Configuration window in reference mode. The following figure shows the Process Configuration window(reference mode).

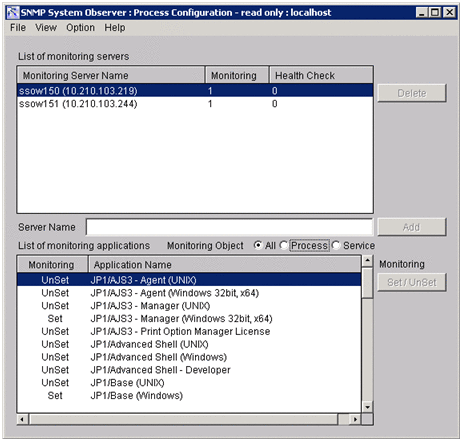

Figure 4‒65: Process Configuration window(reference mode)

[Figure]

The items to be set are:

List of monitoring servers

This box displays the servers registered as monitoring servers and the monitoring conditions set for each server.

Item

Description

Monitoring Server Name

Displays the host name and IP address of the monitoring server for process monitoring. In addition, if the host name cannot be resolved, only the IP address is displayed.

Monitoring

Displays the monitoring interval (in minutes) for process monitoring, which is set in the Set Monitor Interval window. If the process monitoring interval setting cannot be applied to a monitoring server, a hyphen (-) is displayed.#

Health Check

Displays the health check interval (in minutes) which is performed regularly from the monitoring server, which is set in the Set Health Check Interval window.

#

When a hyphen (-) is displayed, communication names between a monitoring server and a monitoring manager might not match, communication between them might not be established, or data might be lost due to a communication overload.

Delete

This button deletes the selected server from List of monitoring servers.

Server Name

Specify a host name or IP address to be added to List of monitoring servers by specifying a character string of 256 bytes or less.

Add

This button adds the server specified in Server Name to List of monitoring servers.

List of monitoring applications

This box displays the applications registered in the server selected in List of monitoring servers and the monitoring conditions set for each application.

Item

Description

Monitoring

Displays the setting status of monitoring mode for the application. When the application is being monitored, Set is displayed. When the application is not being monitored, UnSet is displayed.

Application Name

Displays the registered applications.

Monitoring Object

Limits the applications to be displayed in List of monitoring applications.

  • All

    Displays applications that monitor both processes and services.

  • Process

    Displays applications that monitor processes only.

  • Service

    Displays applications that monitor services only.

Monitoring - Set / Unset

Set whether to monitor the selected application.

The next table explains the menu items.

Menu bar

Menu command

Description

File

Change Connection#

Changes the connection destination.

Save

Saves the settings and starts monitoring.

View

Update Condition

Obtains a monitoring condition again. You can use this command when you opened the window in reference mode.

Search Monitoring Server

Displays the Search Monitoring Server window. This menu command can be selected only when List of monitoring servers contains at least one server.

Option

Monitoring Server

Setting the monitoring interval

Displays the Set Monitor Interval window.

Setting the health check interval

Displays the Set Health Check Interval window.

Monitoring Application

Automatic Action

Displays the Automatic Action window.

Remote Command

Displays the Remote Command window.

Application Registration

Displays the Register Application window.

#

The menu command is not displayed if you opened the window from the SSO console.
