4.6.4 Register Command window

The Register Command window registers remote commands to be executed at any timing for an application, process, child process, or service. The remote commands registered in this window are displayed in the Remote Command window or the Command Setup window. The following figure shows the Register Command window.

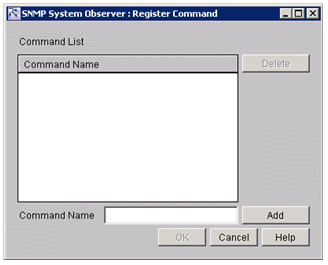

Figure 4‒70: Register Command window

[Figure]

The items to be set are:

Command List

This box displays the registered commands.

Delete

This button deletes the selected command from Command List.

Command Name

Specify a command name to be added to Command List with a character string of 160 bytes or less. Do not specify a tab.

Add

This button adds the process specified in Command Name to Command List.
