4.6.5 Set Mapping window
The Set Mapping window maps the service status and the service's operating status. Based on this setting, SSO determines the status of the monitoring service.

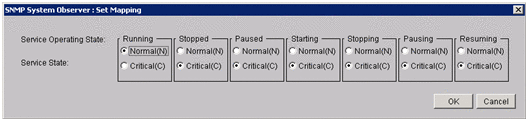

The following figure shows the Set Mapping window.
|
|
![[Figure]](GRAPHICS/SS050345.GIF)
The items to be set are:
- Service Operating State
-
Displays the service status that can be obtained through service monitoring.
- Service State
-
For each service operating status, set the status (either Normal or Critical) to be used to monitor services. By default, only the Running status is set to Normal, and other statuses are set to Critical.
