Hitachi

JP1 Version 12 JP1/SNMP System Observer Description, Operator's Guide and Reference


4.6.6 Copy Application window

The Copy Application window copies the application you selected in Application List of the Register Application window. The following figure shows the Copy Application window.

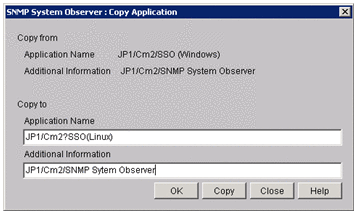

Figure 4‒72: Copy Application window

[Figure]

The items to be set are:

Copy from
Application Name

Displays the application name selected from Application List.

Additional Information

Displays the additional information selected from Application List.

Copy to
Application Name

Specifies the copy destination application name.

Specify a character string of up to 128 bytes. Do not specify a semicolon (;), a comma (,), a tab, or multi-byte codes. In addition, you cannot specify a hash mark (#) at the beginning of the application name. You cannot specify a registered application name.

Additional Information

Specifies additional information on the copy destination application.

Specify a character string of up to 128 bytes. Do not specify a semicolon (;), a tab, or multi-byte codes.

Copy

Copies the specified application.
