Hitachi

JP1 Version 12 JP1/SNMP System Observer Description, Operator's Guide and Reference


4.6.10 Automatic Action window

The Automatic Action window specifies the command to be executed by automated action on the SSO when the status of monitoring application changes. The following figure shows the Automatic Action window.

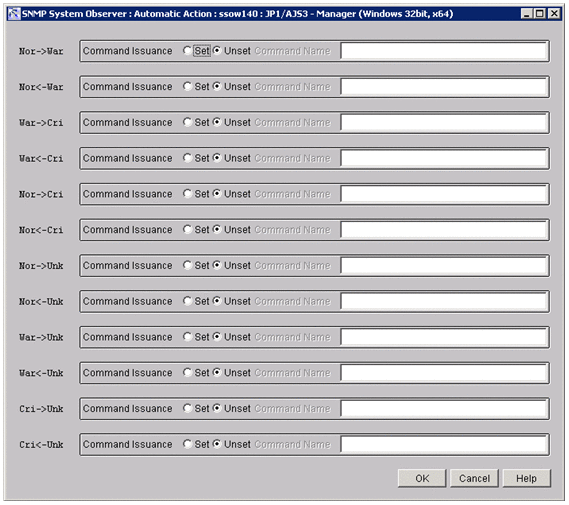

Figure 4‒76: Automatic Action window

[Figure]

The items to be set are:

Command Issuance

Select whether to execute a command for each change in the application status. If you select Set, specify the command to be executed in the Command Name box. Specify the command in 160 bytes or less.

For details on automated actions and remote commands, see 2.5.2(4) Automated actions and remote commands.
