4.6.12 Remote Command window

The Remote Command window specifies the remote command that SSO will instruct APM to execute by automated action when the status of a monitored application changes. Commands whose execution is prohibited in the executable command definition file cannot be carried out. Figure 4-78 shows the Remote Command window which is used to select an application for process monitoring, and Figure 4-79 shows the Remote Command window which is used to select an application for service monitoring.

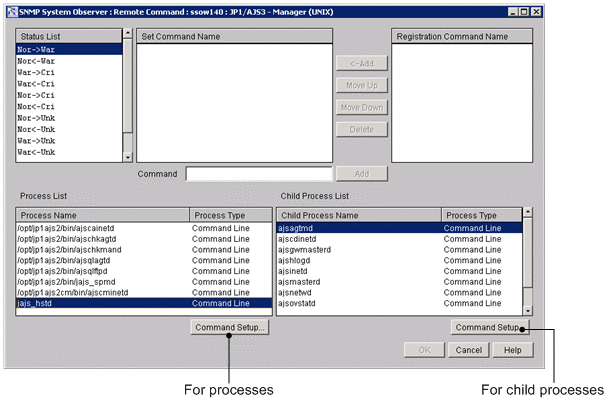

Figure 4‒78: Remote Command window (monitoring process)

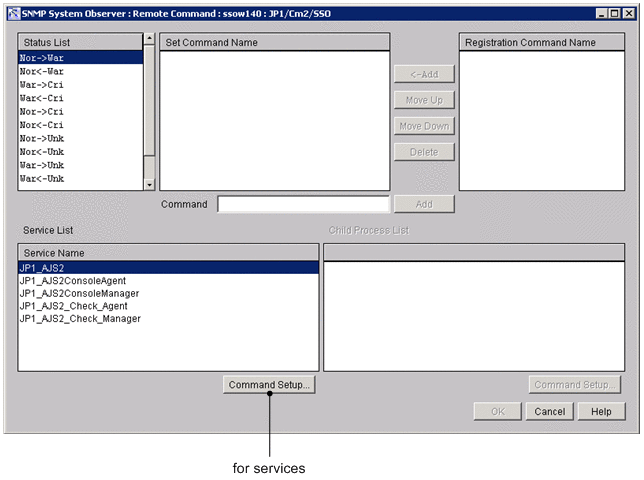

Figure 4‒79: Remote Command window (monitoring service)

The items to be set are:

Status List

This box displays changes in the status of the application. You can set a command for each status change.

Set Command Name

This box displays the command to be executed when the status selected in Status List changes. If multiple commands have been set, SSO executes them in order from the top.

<-Add

This button adds the command selected in Registration Command Name to Set Command Name.

Move Up

This button reverses the order of the command selected in Set Command Name and the command immediately above it.

Move Down

This button reverses the order of the command selected in Set Command Name and the command immediately below it.

Delete

This button deletes the command selected in Set Command Name.

Command

Specify a command by specifying the command name with a character string of 160 bytes or less. Do not specify a tab.

Add

Adds a command specified in Registration Command Name to Set Command Name.

Registration Command Name

Commands registered in the Command window are displayed in the order they were registered.

Process List

This box displays the processes registered for the application selected in List of monitoring applications of the Process Configuration window.

Service List

This box displays the Services registered for the application selected in List of monitoring applications of the Process Configuration window.

Command Setup (for processes / services)

This button displays the Set Command window. In the Set Command window, set the command to be executed when the status of a process, and service changes. For details on the Set Command window, see 4.6.13 Set Command window.

For details on the automated actions and remote commands, see 2.5.2(4) Automated actions and remote commands.

Child Process List

This box displays the child processes registered for the process selected in Process List.

Command Setup (for child processes)

This button displays the Set Command window. In the Set Command window, set the command to be executed when the status of a child process changes. For details on the Set Command window, see 4.6.13 Set Command window.

For details on the automated actions and remote commands, see 2.5.2(4) Automated actions and remote commands.
