4.6.13 Set Command window

The Set Command window specifies the remote command that SSO will instruct APM to execute by automated action when the statuses of a monitored process, monitored child process, or monitored service change. Commands whose execution is prohibited in the executable command definition file cannot be carried out. The following figure shows the Set Command window.

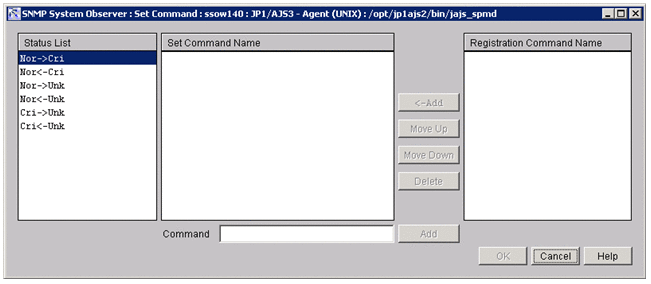

Figure 4‒80: Set Command window

The items to be set are:

Status List

This box displays changes in the status of the monitored processes, child processes, and services. You can set a command for each status change.

Set Command Name

This box displays the command to be executed when the status selected in Status List changes. If multiple commands have been set, SSO executes them in order from the top.

<-Add

This button adds the command selected in Registration Command Name to Set Command Name.

Move Up

This button reverses the order of the command selected in Set Command Name and the command immediately above it.

Move Down

This button reverses the order of the command selected in Set Command Name and the command immediately below it.

Delete

This button deletes the command selected in Set Command Name.

Command

Directly enter the name of a command to be executed when the status of a process or a service changes. You can specify the command name with a character string of 160 bytes or less. Do not specify a tab. For details on the automated actions and remote commands, see 2.5.2(4) Automated actions and remote commands.

Add

Adds a command specified in Registration Command Name to Set Command Name.

Registration Command Name

Commands registered in the Command window are displayed in the order they were registered.
