4.6.2 Register Child Process window

The Register Child Process window registers a child process. The following figure shows the Register Child Process window.

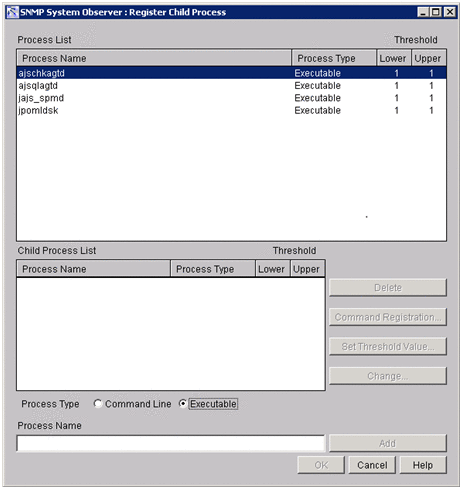

Figure 4‒68: Register Child Process window

The items to be set are:

Process List

This box displays the process selected in the Register Application window.

Child Process List

This box displays the child processes to be monitored by the process displayed in Process List. It also displays the process type and thresholds of each child process.

Delete

This button deletes the selected child process from Child Process List.

Command Registration (for child processes)

This button displays the Register Command window. In the Register Command window, register the command to be executed when the status of a child process changes.

Set Threshold Value

This button displays the Set Threshold Value window.

Change

This button displays the Change Process window. For details on the Change Process window, see 4.6.8 Change Process window.

This button is enabled only when a child process is selected in Child Process List. This button is always disabled in reference mode.

Process Name

Specify a child process name to be added to Child Process List. Specify the child process name with a character string of 60 bytes or less. You can use an asterisk (*) or question mark (?) as a wild card at the child process name. Do not specify a semicolon (;) or a tab. In addition, do not specify .exe.

Command Line, Executable

Specify the type of the process specified in Process Name.

If the OS is Windows, select Executable. If the OS is UNIX, select Executable or Command line. For details on how to check whether a process is the Command line or Executable type, see 2.5 Process and service monitoring function.

Add

This button adds the child process specified in Process Name to Child Process List.
