1.6.4 Settings for Mapping Source Dialog
In the Settings for Mapping Source dialog, specify a source node or function that becomes a mapping source.
The Settings for Mapping Source dialog opens when you right-click a target node and choose Mapping source.

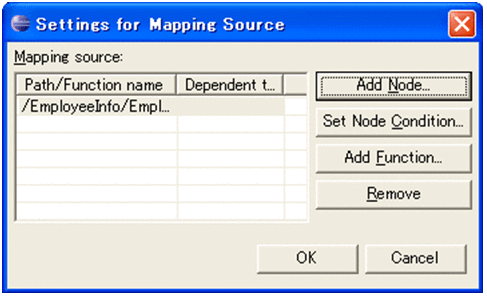

The following figure shows the Settings for Mapping Source dialog.
- Organization of this subsection
(1) Displayed items
- Path/Function name
-
Specify the target node or function that becomes the mapping source. If the node is already mapped, its mapping source is displayed.
For details about the display format in Path/Function Name, see the description of the display format for the mapping source in the manual Service Platform Basic Development Guide.
- Dependent target
-
When you use a loop node function, the looping dependent target that corresponds to the loop node function specified in Path/Function name is displayed. For details about the looping Dependent Target, see the description for loop settings in the manual Service Platform Basic Development Guide.
- Add Node button
-
The Node Selection dialog opens. Click this button to add a source node that becomes the mapping source to Path/Function name.
For details about the Select Node dialog, see 1.6.8 Select Node Dialog (Data Transformation).
- Set Node Condition button
-
The Set Node Condition dialog opens. Click this button to specify a condition for the source node and allow mapping to take place only when that condition is satisfied.
For details about the Set Node Condition dialog, see 1.6.11 Set Node Condition Dialog. Also, for details about how to set up the conditions for transformation source node, see the description about node condition settings in the manual Service Platform Basic Development Guide.
- Add Function button
-
The Select Function dialog opens. Click this button to add a function that becomes the mapping source to Path/Function name.
For details about the Select Function dialog, see 1.6.9 Select function dialog.
- Remove button
-
Deletes the source node or function selected in Path/Function name from Path/Function name.
- OK button
-
Commits the specified contents and closes the dialog.
- Cancel button
-
Cancels the specified contents and closes the dialog.
(2) Operations that can be performed in this dialog
In the Settings for Mapping Source dialog, you can perform the following operations:
-
Mapping
For details about mapping methods with the settings for the Mapping Source dialog, see the description for mapping in the manual Service Platform Basic Development Guide.
-
Checking looping dependent targets
For details about how to check looping dependent targets, see the description for checking the looping dependent targets in the manual Service Platform Basic Development Guide.
-
Changing looping dependent targets
For details about how to change looping dependent targets, see the description for changing the looping dependent targets in the manual Service Platform Basic Development Guide.
