1.6.5 Settings for Automatic Mapping Source dialog
In the Settings for Automatic Mapping Source dialog, specify the range of transformation source nodes and the range of transformation destination nodes to be mapped automatically.
The Settings for Automatic Mapping Source dialog appears, when you right-click the transformation destination node element (the top element of the range to be mapped automatically) and select Automatic Mapping.

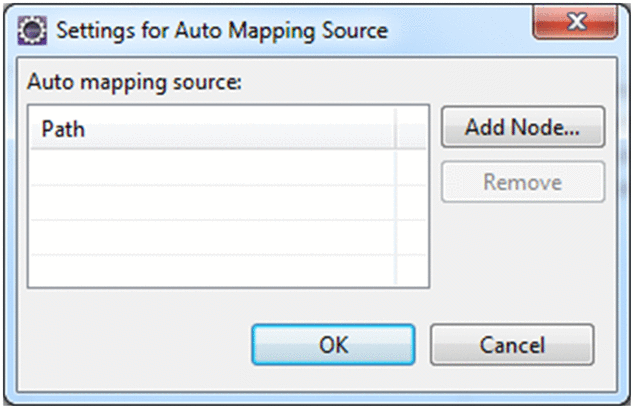

The Settings for Automatic Mapping Source dialog is as follows:
|
|
![[Figure]](GRAPHICS/ZS016625.GIF)
- Organization of this subsection
(1) Display items
- Path
-
Displays the element to be mapped selected by the Add node button.
If you close the Settings for Automatic Mapping Source dialog, the contents displayed in Path are reset, and nothing is selected in Path, when you view the Settings for Automatic Mapping Source dialog again.
- Add node button
-
Displays the Select Node dialog. Click to add an element of the transformation source node in Path that acts as the mapping source.
For details about the Select Node dialog, see the subsection 1.6.8 Select Node Dialog (Data Transformation).
- Remove button
-
Deletes the element selected in Path from Path.
- OK button
-
Enables the specified contents, and then closes the dialog.
- Cancel button
-
Disables the specified contents, and then closes the dialog.
(2) Operations that can be performed in this dialog
In the Settings for Automatic Mapping Source dialog, if you specify the range of the transformation-source node and transformation-destination node, elements in the transformation-source node and transformation-destination node with a high degree of similarity are mapped automatically. If mapping options do not exist within the range or if a mapping line is already connected to the transformation-destination node adapter, the mapping is not performed.
