1.6.8 Select Node Dialog (Data Transformation)
In the Select Node dialog (data transformation), specify a source node that becomes a mapping source or a target node that is the copy destination of the mapping definition.
The Select Node dialog (data transformation) for selecting the source node is displayed when you perform one of the following operations:
-
In the Settings for Mapping Source dialog, click Add Node
-
In the setting dialog box for each function, click Add Node or Select Node
-
In the Settings for Automatic Mapping Source dialog, click Add Node
-
In the Settings for Duplicate Mapping Source dialog, click Add Node
-
In the Settings for duplicate mapping range dialog, from Source node, click Select node
The Select Node dialog (data transformation) for selecting the transformation destination node is displayed when you perform the following operation:
-
In the Settings for duplicate mapping range dialog, from Target node, click Select node

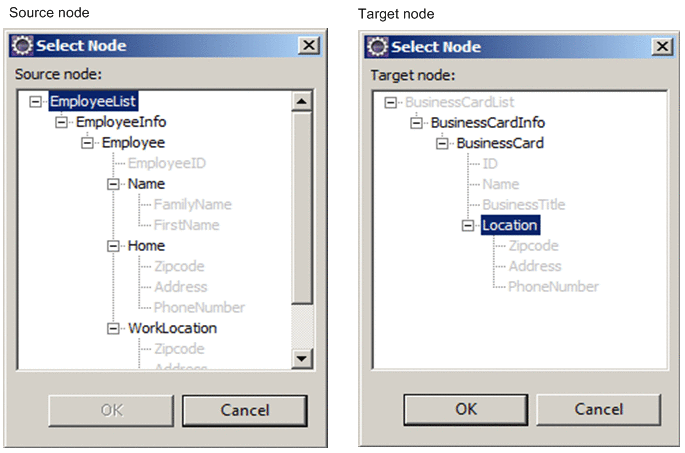

The following figure shows the Select Node dialog (data transformation):
|
|
![[Figure]](GRAPHICS/ZS016800.GIF)
- Organization of this subsection
(1) Displayed items
- Source node
-
Shows source nodes that are candidate of mapping definitions.
Nodes that cannot be selected as mapping sources are shown in gray. When you select a node displayed in gray, the OK button is disabled.
- Target node
-
Shows target nodes that are candidate of mapping definitions.
Nodes that cannot be selected as mapping targets are shown in gray. When you select a node displayed in gray, the OK button is disabled.
- OK button
-
Commits the specified contents and closes the dialog.
- Cancel button
-
Cancels the specified contents and closes the dialog.
(2) Operations that can be performed in this dialog
With the Select Node dialog, you can perform the following operations:
-
Specify the transformation source node that acts as the mapping source
If this dialog is displayed from the Settings for Mapping Source dialog or from the setting dialog box for each function, specify the transformation source node that are the mapping source, and set up the transformation source node in the Settings for Mapping Source dialog or in each function.
-
Automatically specify the transformation source node that acts as the mapping source
If this dialog is displayed from the Settings for Automatic Mapping Source dialog, specify elements of the transformation source node that are to be mapped automatically, and set up the element of the transformation source node in the path of the Settings for Automatic Mapping Source dialog.
-
Specify transformation source node that is the copy destination of mapping definitions with the same structure
If this dialog is displayed from the Setting for Duplicate Mapping Source dialog, specify the transformation source node that is the copy destination, and set up the transformation source node in the Setting for Duplicate Mapping Source dialog.
-
Specify transformation source node that is the copy source or the copy destination of mapping definitions with the same element name
If this dialog is displayed from the Source node in the Settings for duplicate mapping range dialog, specify the transformation source node that is the copy source or destination of mapping definitions, and set up the transformation source node in the Settings for duplicate mapping range dialog.
-
Specify transformation destination node that is the copy source or the copy destination of mapping definitions with the same element name
If this dialog is displayed from the Target node in the Settings for duplicate mapping range dialog, specify the transformation destination node that is the copy source or destination of mapping definitions, and set up the transformation target node in the Settings for duplicate mapping range dialog.
