1.6.7 Loop Settings Dialog
The Loop Settings dialog specifies the loop node function that configures the mapping source. The following figure shows the Loop Settings dialog.
When you are using a loop node function, the Loop Settings dialog opens when you right-click a target node and choose Loop.

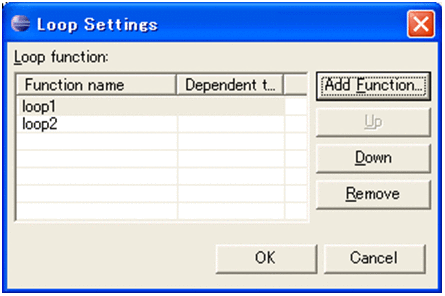

The following figure shows the Loop Settings dialog.
|
|
![[Figure]](GRAPHICS/ZS016700.GIF)
- Organization of this subsection
(1) Displayed items
- Function name
-
Specify a loop node function that becomes the mapping source. Loop node function names are displayed.
- Dependent target
-
The looping dependent target that corresponds to the loop node function specified in Function name is displayed. For details about looping dependent targets, see the description for loop settings in the manual Service Platform Basic Development Guide.
- Add Function button
-
The Select Function dialog opens. Click this button to add a loop node function that becomes the mapping source to Function name.
For details about the Select Function dialog, see 1.6.9 Select function dialog.
- Up button
-
Moves up by one line the position of the loop node function selected in Function name. This button is sometimes used for synthesizing a loop.
- Down button
-
Moves down by one line the position of the loop node function selected in Function name. This button is sometimes used for synthesizing a loop.
- Remove button
-
Deletes the loop node function selected in Function name from Function name.
- OK button
-
Commits the specified contents and closes the dialog.
- Cancel button
-
Cancels the specified contents and closes the dialog.
(2) Operations that can be performed in this dialog
In the Loop Settings dialog, you can perform the following operations:
-
Mapping
-
Synthesizing a loop
-
Checking looping dependent targets
-
Changing looping dependent targets
For details about the above methods, see the description for loop settings in the manual Service Platform Basic Development Guide.
