1.6.11 Set Node Condition Dialog
In the Set Node Condition dialog, specify the source node for which to specify a node condition, and then specify the condition.
This dialog opens when you perform one of the following operations:
-
Click Set Node Condition in the Settings for Mapping Source dialog
-
Click Set Node Condition in the dialog for specifying each function

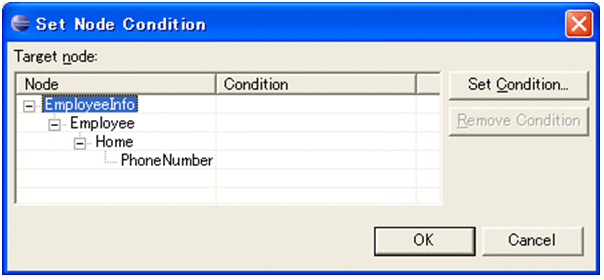

The following figure shows the Set Node Condition dialog.
|
|
![[Figure]](GRAPHICS/ZS017000.GIF)
- Organization of this subsection
(1) Displayed items
- Node
-
Shows the node selected in the Settings for Mapping Source dialog or the dialog for specifying each function, and its descendant nodes.
- Condition
-
Shows the condition specified in the Condition Settings dialog.
- Set Condition button
-
The Condition Settings dialog opens. Click this button to specify a condition for the source node.
For details about the Condition Settings dialog, see 1.6.12 Condition Settings Dialog (Set Node Condition).
- Remove Condition button
-
Deletes the condition selected in Condition from Condition.
- OK button
-
Commits the specified contents and closes the dialog.
- Cancel button
-
Cancels the specified contents and closes the dialog.
(2) Operations that can be performed in this dialog
In the Set Node Condition dialog, you can specify the source node for which to specify a node condition, and then specify the node condition. A source node for which the condition is specified is mapped only when that condition is satisfied. For details about how to set up the conditions for transformation source nodes, see the description of node condition settings in the manual Service Platform Basic Development Guide.
