1.6.10 Search element name dialog

Use the [Search element name] dialog to search for partial matches of element name and display the search results path list. You can also edit mapping definition while the [Search element name] dialog is displayed.

The [Search element name] dialog is displayed when you right click the appropriate place in the tree viewer on the data transformation definition screen and select [Search element name].

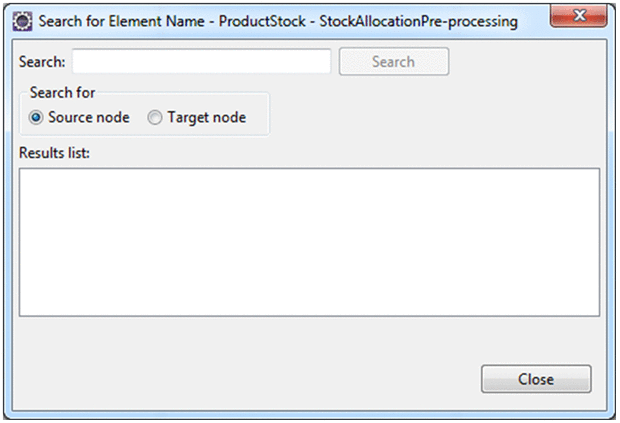

The following figure shows the [Search element name] dialog:

Figure 1‒110: [Search element name] dialog

Organization of this subsection

(1) Displayed items
(2) Operations that can be performed in this dialog

(1) Displayed items

[Search]

Specify the search string here. By clicking the [Search] button, you can search nodes that contain the search string.

The nodes that will be searched are as follows:

Logical name
Complex content element
Simple content element
Attributes
any element
anyAttribute
#(sequence), #(choice)
#anonymous

Note the following points while performing search:

Search string characters are not case sensitive.
You cannot perform search with regular expressions
The entire path of node does not become search target. Only the end of element name becomes search target.

Search results display paths of node in a list format in [List of Search results].

[Search] button

Searches for nodes that contain the search string specified in [Search]. Search results are displayed in [List of search results].

[Search target]

Select the [Transformation source node] or [Transformation destination node] as the search target.

[List of search results]

Path of the nodes in the search results are listed according to the node display order on the screen. If you choose a displayed path, node is selected as follows:

If the [Search target] is Transformation source node, the corresponding node on the Transformation source schema tree viewer is selected.
If the [Search target] is Transformation destination node, the corresponding node on the Transformation destination schema tree viewer is selected.

You can copy a path to the clipboard by selecting and right-clicking the path and then clicking Copy Element Path in the context menu. In the case of N-to-one transformation, the path including $schema-logical-name (business-process-variable-name) is copied. Note that Copy Element Path is not displayed by right-clicking a schema logical name shown in the search results.

[Search number of elements]

Number of search results is displayed.

Note that this item is displayed below [List of search results] after you have clicked on the [Search] button.

[Close] button

Closes the [Search element name] dialog.

To Page Top

(2) Operations that can be performed in this dialog

You can search for partial matches od element name with the [Search element name] dialog. If there is a large number of Transformation source nodes and Transformation destination nodes, you can easily search for the node that you want to use.
