1.6.25 Perform Node Operation Dialog
In the [Perform Node Operation] dialog, specify two numbers and the type of operation to be performed using them.
This dialog opens when you perform one of the following operations:
-
Right-click the perform node operation function, and choose Setting
-
Double-click the perform node operation function

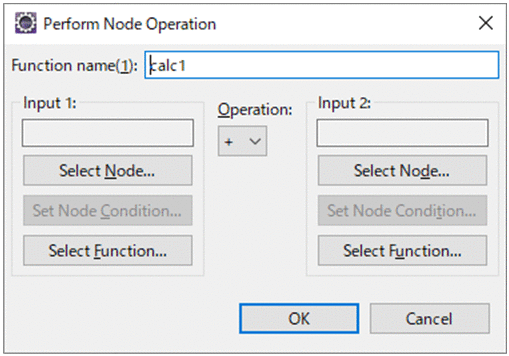

The following figure shows the Perform Node Operation dialog:
|
- Organization of this subsection
(1) Displayed items
- [Function name]
-
Displays the function name. If you want to change to any name, specify within 64 characters. You can use NCName definition characters of XML schema.
- [Input 1]
-
Specify the source node or function of the first operation-target number. If the operation target is already mapped to the perform node operation function, that operation target is displayed.
For details about the display format in [Input 1], see "6.4.6 Mapping Source Display Format" in "Service Platform Basic Development Guide".
- [Select Node] button
-
Displays the [Select Node] dialog. Click this button to specify in Input 1 the source node of the operation target number.
For details about the [Select Node] dialog, see, "1.6.8 Select Node Dialog (Data Transformation)".
- [Set Node Condition] button
-
Displays the [Set Node Condition] dialog. Click this button to specify a condition for the source node and allow mapping to take place only when that condition is satisfied.
For details about the [Set Node Condition] dialog, see "1.6.11 Set Node Condition Dialog". For details about how to set node condition, see "6.7 Specifying Node Conditions" in "Service Platform Basic Development Guide".
- [Select function] button
-
Displays the [Select function] dialog. Click this button to specify the function of the operation target number in Input 1.
For details about the [Select function] dialog, see "1.6.9 Select function dialog".
- [Operation] dropdown list
-
Shows the operation that can be executed. One of the following operations is displayed.
-
+ (addition)
-
- (subtraction)
-
* (multiplication)
-
/ (division)
-
% (remainder)
-
- [Input 2]
-
Specify the source node or function of the second operation-target number. The display format is the same as that of Input 1.
- [Select Node] button
-
Displays the [Select Node] dialog. Click this button to specify the source node of the operation target number in Input 2.
For details about the [Select Node] dialog, see, "1.6.8 Select Node Dialog (Data Transformation)".
- [Set Node Condition] button
-
Displays the [Set Node Condition] dialog. Click this button to specify a condition for the source node and allow mapping to take place only when that condition is satisfied.
For details about the [Set Node Condition] dialog, see "1.6.11 Set Node Condition Dialog". For details about how to set node condition, see "6.7 Specifying Node Conditions" in "Service Platform Basic Development Guide".
- [Select function] button
-
Displays the [Select function] dialog. Click this button to specify the function of the operation target number in Input 2.
For details about the [Select function] dialog, see "1.6.9 Select function dialog".
- [OK] button
-
Enables the specified and closes the dialog.
- [Cancel] button
-
Closes the dialog without enabling the specified contents.
(2) Operations that can be performed in this dialog
With the [Perform Node Operation] dialog, you can set the perform node operation function. For details on how to set the perform node operation see "6.5 Processing value or node in which function is used" in "Service Platform Basic Development Guide".
