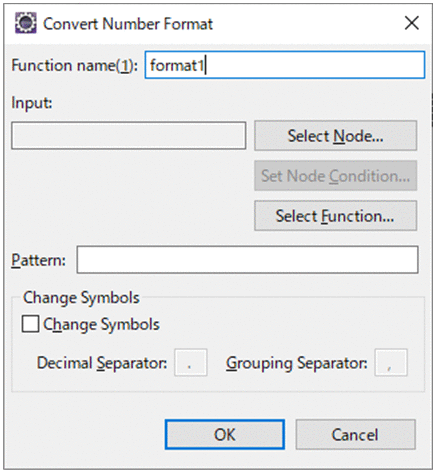

1.6.24 Convert number format dialog

(1) Displayed items

[Function name]

Displays the function name. If you want to change to any name, specify within 64 characters. You can use NCName definition characters of XML schema.

[Input]

Specify the transformation source node and function of the number whose format is to be converted. If the conversion target is already mapped to the convert number format function, that conversion target is displayed.

For details about the display format in [Input], see "6.4.6 Mapping Source Display Format" in "Service Platform Basic Development Guide".

[Select Node] button

The Node Selection dialog opens. Click this button to specify in Input the source node of the conversion target number.

For details about the [Select Node] dialog, see "1.6.8 Select Node Dialog (Data Transformation)".

[Set Node Condition] button

The Set Node Condition dialog opens. Click this button to specify a condition for the source node and allow mapping to take place only when that condition is satisfied.

For details about the [Set Node Condition] dialog, see "1.6.11 Set Node Condition Dialog". For details about how to set up conditions for transformation source node, see "6.7 Specifying Node Conditions" in "Service Platform Basic Development Guide".

[Select Function] button

Displays the [Select Function] dialog. Click this button to specify in [Input] the function of the conversion target number.

For details about the [Select Function] dialog, see "1.6.9 Select function dialog".

[Pattern]

Specify the pattern string in the java.text.DecimalFormat class format to be applied following conversion. A maximum of 1,024 characters can be specified.

If Change Symbols is specified, describe the pattern using the symbols following the conversion.

[Change Symbols]

[Change symbol] checkbox

Select this check box to change the decimal separator or grouping separator from the default.

[Decimal separator]

To change the decimal separator, specify the symbol for the decimal separator to be applied following the change.

[Group separator]

To change the grouping separator, specify the symbol for the grouping separator to be applied following the change.

[OK] button

Commits the specified contents and closes the dialog.

[Cancel] button

Cancels the specified contents and closes the dialog.

To Page Top

(2) Operations that can be performed in this dialog

In the Convert Number Format dialog, you can set up the convert number format function. For details about how to set up the convert number format function, see " 6.5 Processing value or node in which function is used" in "Service Platform Basic Development Guide".
