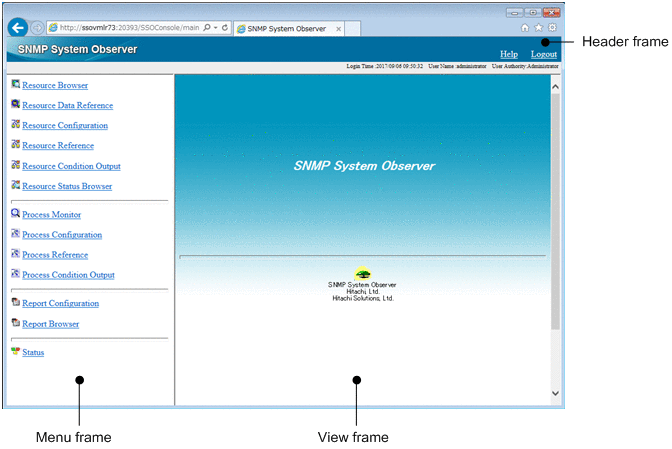

2.1.1 SSO console

(1) Header frame

Help

Displays Help.

Logout

This item is displayed only if user authentication is enabled.

Click this item to log out from the SSO console. After you log out, the window changes to the SSO console login window.

If the user performs no operations on the SSO console until the timeout time expires, the user is forced to log out from the SSO console even if a window opened from the SSO console is being used. That window also is closed.

The timeout time can be changed by using the ssoconsoled action definition file. For details on this file, see 6.3.23 ssoconsoled action definition file (ssoconsoled.def).

To Page Top

(2) Menu frame

This is the area that contains the menu of functions provided by the SSO console. The menu consists of links. Clicking a menu item opens the corresponding window, or displays a report file list or status information in the view frame. The menus displayed in the menu frame differ depending on the type of user authority. Note that this differentiation applies within the SSO console only, not to action cooperation. The following table lists the displayed menus for each type of user authority.

The menu items of the menu frame are described below.

Resource Browser

Opens the Resource Browser window. For details, see 4.2 Resource Browser window.

Resource Data Reference

Opens the Resource Data Reference window. For details, see 4.5 Resource Data Reference window.

Resource Configuration

Opens the Resource Configuration window. For details, see 4.3 Resource Configuration window.

Resource Reference

Opens the Resource Reference window. For details, see 4.4 Resource Reference window.

Resource Condition Output

Displays the Resource Condition Output window, which can be used to select resource collection conditions, in the view frame. The following shows the Resource Condition Output window.

Figure 2‒2: Resource Condition Output window

Table 2‒2: Items displayed in the Resource Condition Output window

Item	Description
Collection Condition Configuration Information	Outputs the collection condition configuration information to the ssocolset.txt file.
Output	Outputs the selected configuration information in text format.

Resource Status Browser

Displays the display condition setup view, which is used to set the resource status display conditions, in the view frame. The following shows the display condition setup view and describes the items displayed in that view.

Figure 2‒3: Display condition setup view

Table 2‒3: Items displayed in the display condition setup view

Item	Description
Server	A list box that lists the servers whose resources are being monitored. In this list box, you can select the server whose resource status you want to display.
Resource (ID)	A list box that lists the resources that are being monitored. In this list box, you can select the resources whose status you want to display.
Select All	Click this item to select all the items displayed in the list box.
Release All	Click this item to deselect all the items selected in the list box.
Update List	Click this item to update the status of the monitored servers and resources.
Browse	Click this item to display the resource status display window, which displays the statuses of resources that match the specified display conditions.

After you have specified the conditions in the display condition setup window, if you click the Browse button, the resource status display window appears. The following shows the resource status display window and describes the resource status icons displayed in that window.

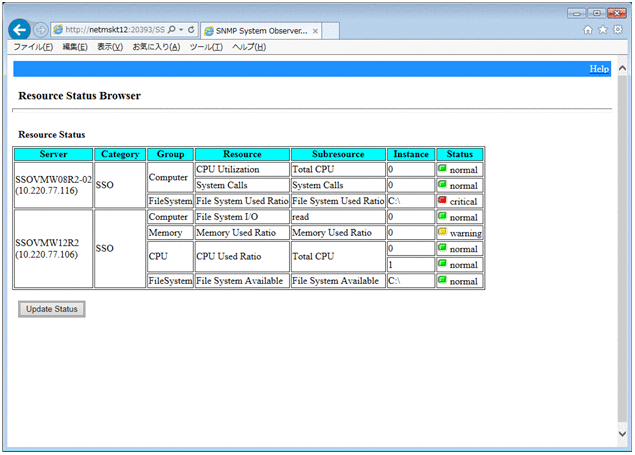

Figure 2‒4: Resource status display window

Note 1

For resources whose values have not been calculated, a hyphen (-) is displayed. Resource values are not calculated in the following cases:

• Threshold monitoring is not performed.

• Resource values have not yet been collected (for example, immediately after the start of collection).

Note 2

If the names of all instances in the same resource are numeric values, the displayed names are sorted by natural ordering. In other cases (if there are instances whose names include character strings), the displayed names are sorted in lexical order.

Table 2‒4: Resource status icons displayed in the resource status display window

Icon	Resource status
(Green)	Normal
(Yellow)	Warning
(Red)	Critical
(Blue)	Unknown

For the meaning of resource statuses, see 2.2.3(2) Thresholds and resource statuses. For the resource hierarchy, such as categories and resource groups, see 2.2 Resource monitoring function.

Process Monitor

Opens the Process Monitor window. For details, see 4.8 Process Monitor window.

Process Configuration

Opens the Process Configuration window. For details, see 4.6 Process Configuration window.

Process Reference

Opens the Process Reference window. For details, see 4.7 Process Reference window.

Process Condition Output

Displays the Process Condition Output window, which can be used to select process monitoring conditions, in the view frame. The following shows the Process Condition Output window.

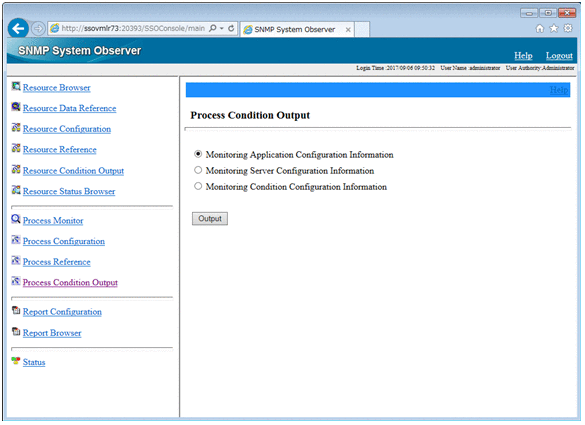

Figure 2‒5: Process Condition Output window

Table 2‒5: Items displayed in the Process Condition Output window

Item	Description
Monitoring Application Configuration Information	Outputs the monitoring application configuration information to the ssopsset_ap.txt file.
Monitoring Server Configuration Information	Outputs the monitoring server configuration information to the ssopsset_sp.txt file.
Monitoring Condition Configuration Information	Outputs the monitoring condition configuration information to the ssopsset_mp.txt file.
Output	Outputs the selected configuration information in text format.

Report Configuration

Opens the Report Configuration window. For details, see 4.9 Report Configuration window.

Report Browser

Displays a list of created report files in the view frame.

Status

Displays the status of each daemon process in the view frame. The following figure shows an example of the console window displayed when Status is clicked.

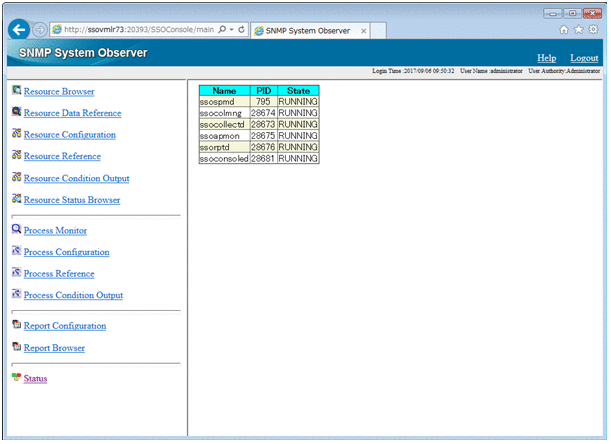

Figure 2‒6: Example of the console window displayed (when Status is clicked)

To Page Top

(3) View frame

This area displays the report file list, the status information, the Resource Condition Output window, and the Process Condition Output window.

To Page Top

(4) Notes
