4.9 Report Configuration window

The Report Configuration window displays the report conditions. The following figure shows the Report Configuration window.

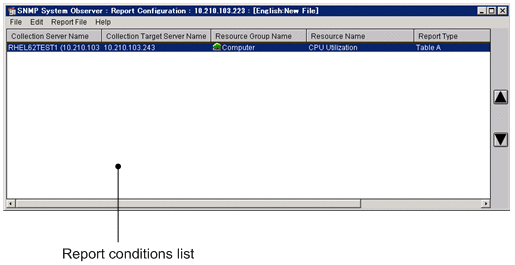

Figure 4‒89: Report Configuration window

The report conditions list displays the report conditions saved in the report definition file. The Additional Information field displays information about the collected data file targeted for the report. The next table explains the format of additional information.

Format	Description
Database type	Displays the type of the collected data file. : Indicates that the file is a master file. : Indicates that the file is a copy file. If the file is a copy file, the copy ID is displayed after the icon.
File ID	Displays the ID of the file.

Format

Description

Database type

Displays the type of the collected data file.

[Figure] : Indicates that the file is a master file.

[Figure] : Indicates that the file is a copy file. If the file is a copy file, the copy ID is displayed after the icon.

File ID

Displays the ID of the file.

The next table explains the menu items.

Menu bar	Menu command	Description
File	New	Creates a report definition file.
	Open	Displays the Select Report Definition File window.
	Save	Saves the report definition file.
	Save as	Displays the Save Report Definition File window.
Edit	Add Condition	Displays the Report Condition Addition wizard.
	Delete Condition	Deletes the report condition selected in the report conditions list.
	Set Condition	Displays the Report Condition Setup window.
	Set Report Type	Displays the Report Type Setup window.
	Move Up	Reverses the order of the report condition selected in the report conditions list and the report condition immediately above it.
	Move Down	Reverses the order of the report condition selected in the report conditions list and the report condition immediately below it.
Report File	Create	Displays the Creating of Report File window.
Report File	Set	Displays the Set Report File window.
