4.9.3 Report Condition Addition wizard

The Report Condition Addition wizard adds a report condition. Figures 4-92 to 4-94 show the Report Condition Addition wizard.

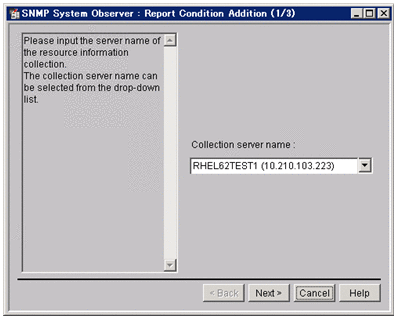

Figure 4‒92: Report Condition Addition wizard (1/3)

[Figure]

The items to be set are:

Collection server name

Specify the host name or IP address of the server that is collecting resources. Specify the host name or IP address in 255 bytes or less.

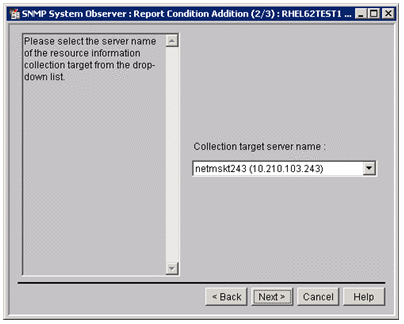

Figure 4‒93: Report Condition Addition wizard (2/3)

[Figure]

The items to be set are:

Collection target server name

Specify the server targeted for collection.

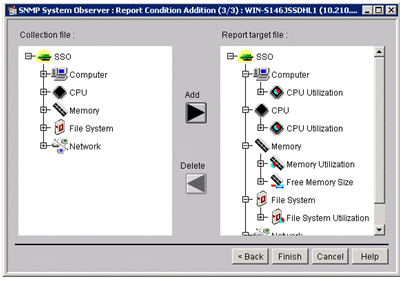

Figure 4‒94: Report Condition Addition wizard (3/3)

[Figure]

The items to be set are:

Collection file

This box displays the files of the collection database specified in Collection Server Name and Collection target server name. These files can be output to a report.

Report target file

This box displays the collection database files to be output to a report.

Add

This button adds items of data to Files Targeted For Report. You can add items of data not only in units of files but also in units of categories, resource groups, or resources.

Delete

This button deletes items of data from Files Targeted For Report. You can delete items of data not only in units of files but also in units of categories, resource groups, or resources.
