4.9.4 Report Condition Setup window

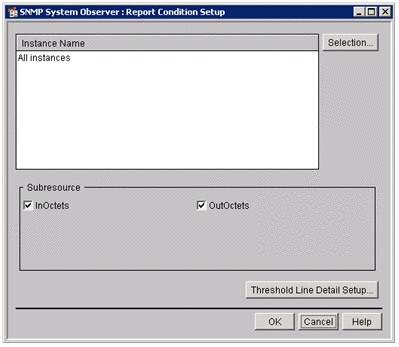

The Report Condition Setup window sets subresources and instances to be reported. The following figure shows the Report Condition Setup window.
|
|
![[Figure]](GRAPHICS/SS050500.GIF)
The items to be set are:
- Instance Name
-
This list box displays a list of instances. If no instances have been registered, the list box displays All Instances. If you want to set report conditions for a particular instance, you must register the instance in the Select Instance window.
- Selection
-
This button displays the Instance Selection window.
- Subresource
-
Select the checkbox indicating each subresource to be output to the report. The options that are displayed depend on the resource. By default, all subresources are eligible to be output to the report.
- Threshold Line Detail Setup
-
Sets how to display threshold information in a graph. This button opens the Threshold Line Detail Setup window. When the report type is table format, the display setting of the threshold is ignored.
- Organization of this subsection
(1) Instance Selection window

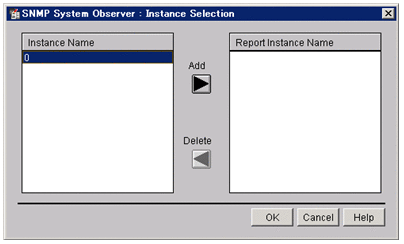

The Instance Selection window selects an instance when you create a report for a particular instance. The following figure shows the Instance Selection window.
|
|
![[Figure]](GRAPHICS/SS050510.GIF)
The items to be set are:
- Instance Name
-
This box lists the instances that have been saved to the collection file.
- Report Instance Name
-
This box displays the instances for which a report is to be created.
- Add
-
This button adds an instance to Report Instance Name.
You cannot specify an instance name that has a space character at the beginning or the end.
- Delete
-
This button deletes an instance from Report Instance Name.
(2) Threshold Line Detail Setup window

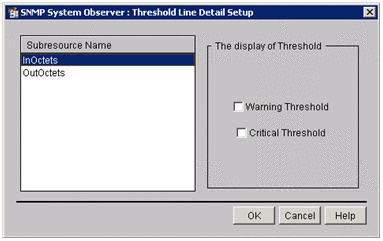

The Threshold Line Detail Setup window specifies settings for displaying threshold lines for each subresource. Lines for the warning threshold and the critical threshold can be set to be displayed for each subresource. The following figure shows the Threshold Line Detail Setup window.
|
|
![[Figure]](GRAPHICS/SS050515.GIF)
- Subresource Name
-
Displays a list of subresource names. Subresources vary depending on the resource. Select the subresource of which threshold line you want to display.
- Warning Threshold
-
When you select this check box, the warning threshold of the applicable subresource is displayed in a graph. If you clear this check box, the warning threshold is not displayed. By default, this check box is not selected. This setting is applied to a graph if you select The display of Threshold Line and It displays by setup of every Subresource in the Graph Detail Setup window.
- Caution Threshold
-
When you select this check box, the critical threshold of the applicable subresource is displayed in a graph. If you clear this check box, the critical threshold is not displayed. By default, this check box is not selected. This setting is applied to a graph if you select The display of Threshold Line and It displays by setup of every Subresource in the Graph Detail Setup window.
