4.9.6 Creating of Report File window

The Creating of Report File window sets the title, output destination, format of a report file, and the period for the report. The following figure shows the Creating of Report File window.

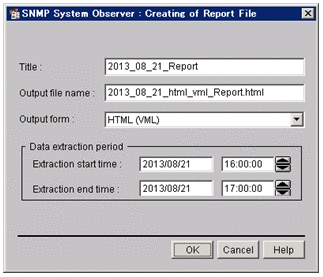

Figure 4‒107: Creating of Report File window

[Figure]

The items to be set are:

Title

Specify the title of the report file with a character string of 1 to 255 bytes. If you omit this value, no report file title is displayed.

Output file name

Specify a save destination for the report by its absolute path. Specify the destination in 255 bytes or less including the file name. Specifiable characters are single-byte alphanumeric characters, periods (.), underscores (_), and hyphens (-).

If the specified file already exists, SSO overwrites it. If you omit the file extension, SSO assigns the extension of the file format specified in Output form. If you specify only the file name, SSO saves the report to the following directory:

Linux:

$SSO_REPORT/Report/CSV
$SSO_REPORT/Report/HTML

Windows:

$SSO_REPORT\Report\CSV
$SSO_REPORT\Report\HTML
Output form

Select CSV, HTML (VML), or HTML (SVG) as the output format for the report. If you selected Graph in Report Type and you create the report in csv format, SSO ignores the graph report. The default is CSV.

For details about the VML and SVG, see 2.4.1(1) Report file formats.

Data extraction period

Specify the start date and time and the stop date and time for extracting data to be output to the report. In the date fields, specify a date between January 1, 1980 and December 31, 2099 in the format yyyy/mm/dd. Specify a time between 00:00:00 and 23:59:59 in the format 00:00:00.
