4.2 Resource Browser window

The Resource Browser window enables you to collect and browse a server's resources at any time. The following figure shows the Resource Browser window.

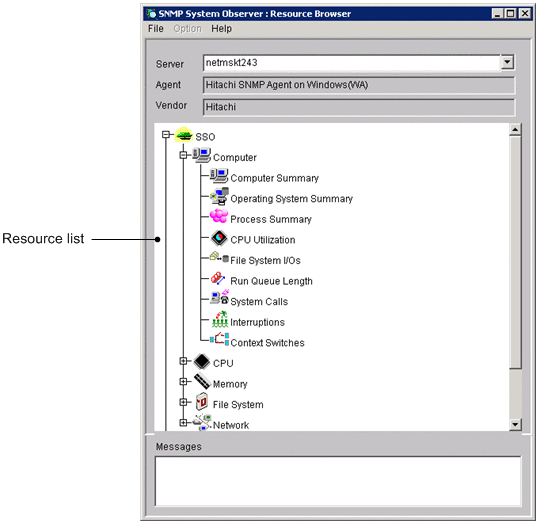

Figure 4‒7: Resource Browser window

The items to be set are:

Server

Enter the host name or IP address of the server containing the resource you want to browse.

If the Resource Browser window is opened from the action menu of the NNMi console window, the value of the jp.co.hitachi.jp1.sso.agentaddr custom attribute of the selected node is input here by default.

Agent

This box displays the name of the SNMP agent that runs on the server indicated in the Server box.

Vendor

This box displays the name of the vendor of the SNMP agent indicated in the Agent box.

Resource list

This list box displays a list of the resources that you can obtain from the SNMP agent indicated in the Agent box.

The next table explains the menu items.

Menu bar	Menu command	Description
File	Open	Displays the results of browsing the specified resources in the Resource list.
	Change Connection#	Displays the Connect Server window.
Option	SMS Client List	Displays the SMS Client List: window.
	Re-acquire SMS Information	Acquires SMS client information again.

Organization of this section

• 4.2.1 Server connection window

• 4.2.2 Summary Data window

• 4.2.3 Performance Data window

• 4.2.4 Ping Response Time window

• 4.2.5 SMS Client List window

• 4.2.6 Save File window

• 4.2.7 Graph window
