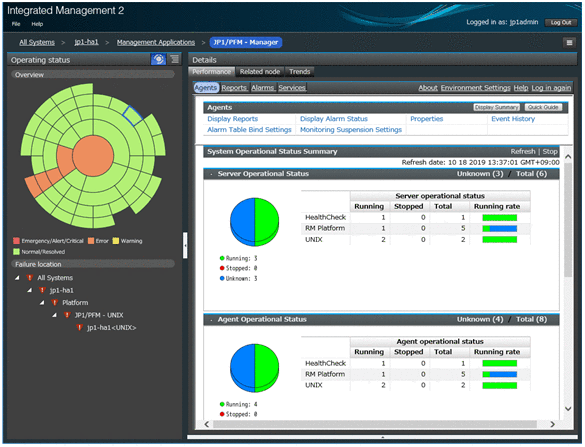

2.1 Items displayed in the PFM - Web Console window displayed on the Integrated Operation Viewer of JP1/IM2

Connection menu display area^#1

Primary button

This button allows you to connect to the PFM - Web Console that is set as the primary PFM - Manager host at the connection destination.

When you click this button, a message dialog box appears, stating that the connection destination will be changed.

Secondary button

This button allows you to connect to the PFM - Web Console that is set as the secondary PFM - Manager host at the connection destination.

When you click this button, a message dialog box appears, stating that the connection destination will be changed.

Notification icon

This icon is displayed when the Performance Management's configuration information (primary or secondary host in a multiple-monitoring configuration) held by JP1/IM2 is inconsistent with the actual configuration information.

This icon appears on the left of either the Primary button or the Secondary button, depending on whether the inconsistency is found while connection is established with the primary host or the secondary host. The message is displayed as a tool tip.

Open/close button

This button allows you to open or close the connection menu display area.

With each click of the button, you can toggle between opening and closing the connection menu display area.

Hierarchical menu display area

Agents tab

This tab displays the Agents window in the tree view area.

Reports tab^{#2, #3}

This tab displays the Reports window in the tree view area.

Alarms tab^{#2, #4}

This tab displays the Alarms window in the tree view area.

Services tab^#4

This tab displays the Services window in the tree view area.

About button

This button allows you to display the About window in a separate window.

What you can do in this About window and the items displayed in it are the same as those in the About window of Performance Management's PFM - Web Console. Therefore, for details on this window, see 1.3.5 About window, which provides a description of the About window of Performance Management's PFM - Web Console.

Environment Settings button

This button allows you to display the Environment Settings window in a separate window.

What you can do in this Environment Settings window and the items displayed in it are the same as those in the Environment Settings window of Performance Management's PFM - Web Console. Therefore, for details on this window, see 1.3.4 Environment Settings window, which provides a description of the Environment Settings window of Performance Management's PFM - Web Console.

Help button

This button allows you to display the Help window in a separate window.

What you can do in this Help window and the items displayed in it are the same as those in the Help window of Performance Management's PFM - Web Console. Therefore, for details on this window, see 1.3.6 Help window, which provides a description on the Help window of Performance Management's PFM - Web Console.

Log in again button

This button allows you to log in to PFM - Web Console again.

Note:

When there is another login to PFM - Web Console as shown below, you have to disconnect from PFM - Web Console and then log in to it again.

• Login using the same session^#1

• Login by the user with the same user name^#2

#1

When dispReportsSameTime in the initialization file (config.xml) is set to true, the user remains logged in, in the View Report window that is being displayed via monitor startup from a JP1/IM2 event.

#2

This is applicable when false is specified for enableDuplicateLogin in the initialization file (config.xml).

Tree view area

Agents window

This window allows you to view a monitoring agents tree.

The target agents change as follows, depending on the component of Performance Management selected in the Operating status area:

• When a component of PFM - Manager is selected

  All agents become the targets.

  However, when the following functions are used, the health check agent becomes the target.

  - Report display

  - Alarm status display

  - Alarm table binding^#3

  - Alarm bind setting^#3

  - Properties display

• When a component of either PFM - Agent or PFM - RM is selected

  The selected agent becomes the target.

What you can do in the Agents window and the items displayed in it are the same as those in the Agents window of Performance Management's PFM - Web Console. The following functions, however, are not available:

• Editing of the agents tree

• Registration of bookmarks

• Checking of the alarm application status

With the exception of the above functions, what you can do in the Agents window and the items displayed in it are the same as those in the Agents window of Performance Management's PFM - Web Console. Therefore, for details on this window, see 1.4 Agents window, which provides a description of the Agents window of Performance Management's PFM - Web Console.

Reports window^{#2, #3}

This window allows you to view a reports tree.

What you can do in the Reports window and the items displayed in it are the same as those in the Reports window of Performance Management's PFM - Web Console.

Therefore, for details on this window, see 1.5 Reports window, which provides a description of the Reports window of Performance Management's PFM - Web Console.

Alarms window^{#2, #4}

This window allows you to view an alarms tree.

What you can do in the Alarms window and the items displayed in it are the same as those in the Alarms window of Performance Management's PFM - Web Console.

Therefore, for details on what you can do in this window and the items displayed in it, see 1.7 Alarms window, which provides a description of the Alarms window of Performance Management's PFM - Web Console.

Services window^#4

This window allows you to manage the service of a Performance Management program.

What you can do in the Services window and the items displayed in it are the same as those in the Services window of Performance Management's PFM - Web Console. The following function, however, is not available:

• Display of the status of the services of both the PFM - RM group agent and the PFM - RM remote agent

• Stopping of the service

For details on all the other operations you can perform in the Services window and the items displayed in the window, see 1.8 Services window, which provides a description of the Services window of Performance Management's PFM - Web Console.

Navigation frame

When the Reports window, the Alarms window, or the Services window is displayed, the items corresponding to the component of Performance Management you have selected in the Operating status area are displayed in tree view.

When you display one of the above windows for the first time, the tree is expanded.

For details on the items displayed in tree view in the navigation frame, see 2.2 Items displayed in tree view in the navigation frame of each tree view window.

By dragging the border of the navigation frame, you can adjust the frame width. If, however, you are using Google Chrome as the browser, you cannot adjust the frame width.

Close icon

This icon closes the navigation frame.

Open icon

This icon opens the navigation frame.
