1.3.4 Environment Settings window
The Environment Settings window is used to set the refresh interval when window displays are to be refreshed automatically. To display this window, in the Main window, from the menu bar frame, choose Environment Settings.
The following windows and items are refreshed automatically at the refresh interval set in this window:
-
Event Monitor window
-
Monitoring agent status and health check status in the Agents window
-
Alarm status in the Alarm Status window
-
System Operational Status Summary window

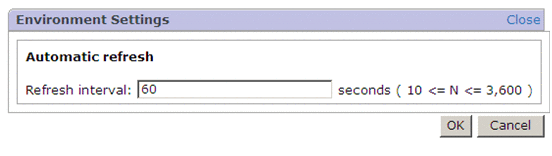

The following figure shows the Environment Settings window.
|
|
![[Figure]](GRAPHICS/ZU201325.GIF)
- Close
-
Closes the Environment Settings window.
- Automatic refresh
-
Sets the refresh interval if you wish to have window displays refreshed automatically.
- Refresh interval
-
Set a value in the range 10 to 3600 (seconds). The default is 60 seconds.
- OK button
-
Accepts the specified settings and closes the Environment Settings window. Clicking this button enables the settings.
- Cancel button
-
Discards the specified setting and closes the Environment Settings window.
