5.1 Executing a jobnet

Execute a defined jobnet.

Prerequisites

Define a jobnet.

Procedure

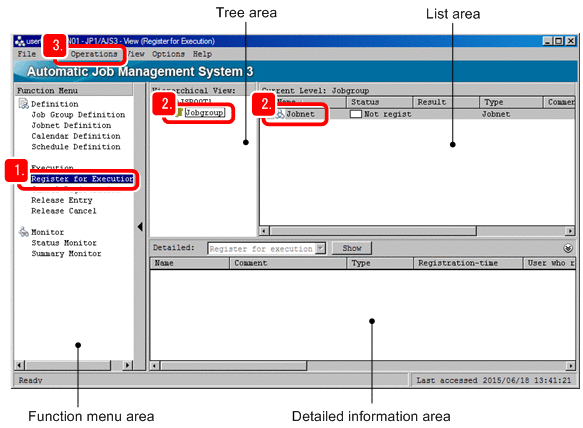

In the JP1/AJS3 - View window (Main window), in function menu area, select Register for Execution.
In the tree area, select the job group. In the list area, select the jobnet.
Select Operations, and then Register for Execution.

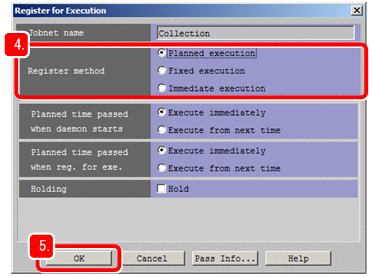

The Register for Execution dialog box appears.
In Register method, select the execution registration method.

The three types of methods for registering jobnets for execution are shown below. Select the method appropriate for the operation.
- Planned execution

  The jobnet is executed according to the defined schedule. If you change the calendar or schedule after the jobnet is registered for execution, the schedule is immediately defined again so that the jobnet is executed based on the new schedule.
- Fixed execution

  The jobnet is executed according to the execution date and time calculated in advance based on the defined schedule.

  Even if you change the calendar or schedule after the jobnet is registered for execution, the execution plan is not changed. Changes in the calendar and schedule will take effect after the next jobnet is registered for fixed execution.
- Immediate execution

  The jobnet is executed as soon as it is registered for execution. Calendars and schedules are invalidated, and execution starts for each execution registration.
Click the OK button.

The Register for Execution dialog box closes.

Result

The jobnet is registered for execution.

For planned execution or fixed execution, jobnet execution starts according to the defined operation schedule. For immediate registration, jobnet execution starts immediately.

Postrequisites

Check the execution status of the job and jobnet.

If the operation schedule is set for the jobnet, you can monitor the execution status of the jobnet on a daily or monthly basis.
