6.1 Checking jobnet execution results

Check the execution results of a jobnet.

Prerequisites

The following explanation assumes that the execution of the jobnet has been completed.

Procedure

1. In the JP1/AJS3 - View window (Main window), in function menu area, select Status Monitor.



2. In the tree area, select the job group.

   The list area displays the execution results of the jobnet in the job group.

   If the jobnet is still being executed, wait a while, and then select View, and then Refresh.

3. Select the jobnet in the list area, and select View, Detailed Information, and then Result.

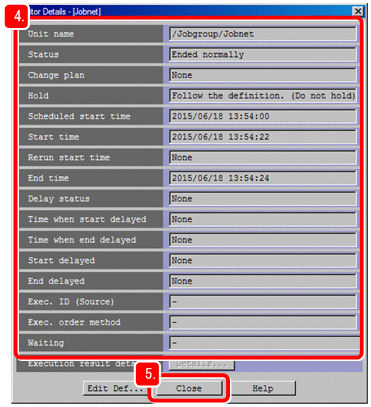

   The Monitor Details - [Jobnet] dialog box appears.

4. Checks detailed information about the execution results of the jobnet.



5. Click the Close button.

   The Monitor Details - [Jobnet] dialog box closes.

Result

You were able to check the execution results of the jobnet.

Postrequisites

If necessary, check the execution results of a job.

Related topics

• 6.2 Checking job execution results
