6.4 Monitoring the execution status of jobs and jobnets on a monthly basis

If the operation schedule is set for jobnets, you can monitor the execution status of jobs and jobnets on a monthly basis.

Procedure

In the JP1/AJS3 - View window (Main window), in function menu area, select Status Monitor.
In the tree area, select the job group. In the list area, select the jobnet.
Select View, and then Monthly Schedule.

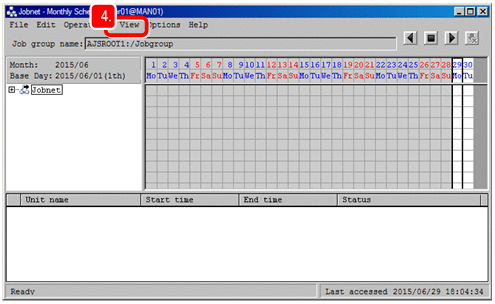

The Monthly Schedule window appears.

If the scheduled execution date is not in the current month, nothing is displayed in the Monthly Schedule window.
Select View, Change Display Month, and then Specify Month to check the execution schedule of the jobnet.

The Change Display Month dialog box appears.
In Month, specify the scheduled execution-start month, and then click OK.

The Change Display Month dialog box closes.
In the schedule area of the Monthly Schedule window, check the execution status of a jobnet.

The cell color helps you check the execution status of the jobnet. For example, green indicates Now running, light green indicates Ended normally, sky blue indicates Waiting to execute, and light red indicates Ended abnormally.

Clicking a cell displays the unit name, start time, end time, and current status of the jobnet on the execution result list. However, if the jobnet was registered for planned execution and then executed, clicking a date cell later than the next execution schedule does not display anything in the execution result list.
To check the execution result of the units in the jobnet, click the plus sign (+), and then click the units in the jobnet.

The execution schedules of the units in the jobnet are displayed in the schedule area. Click the plus sign (+) of the nested jobnet to check the execution schedules of lower-level units.
Select File, and then Close.

The Monthly Schedule window closes.

Result

The execution status, start time, and end time of the jobs and the jobnets were confirmed on a monthly basis.
