The transactions are managed by using EJB transactions in order to synchronize the content of response to the FTP client, such as normal and abnormal termination, and the processing status of the business process.

This subsection describes the scope of a transaction for each file transfer pattern.

(a) For synchronous business processes

The following figure shows the transaction scope for synchronous business processes.

For details on the file transfer patterns using synchronous business processes, see "8.3.1(1) Procedure of file transfer using synchronous business processes" and "8.3.2 Transfer of files from an FTP server to an FTP client".

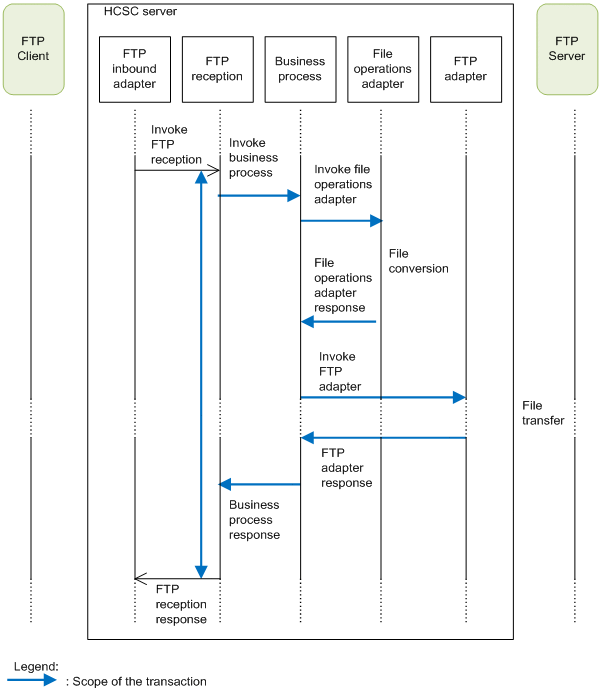

Figure 8-42 For synchronous business processes (To transfer files from an FTP client to an FTP server)

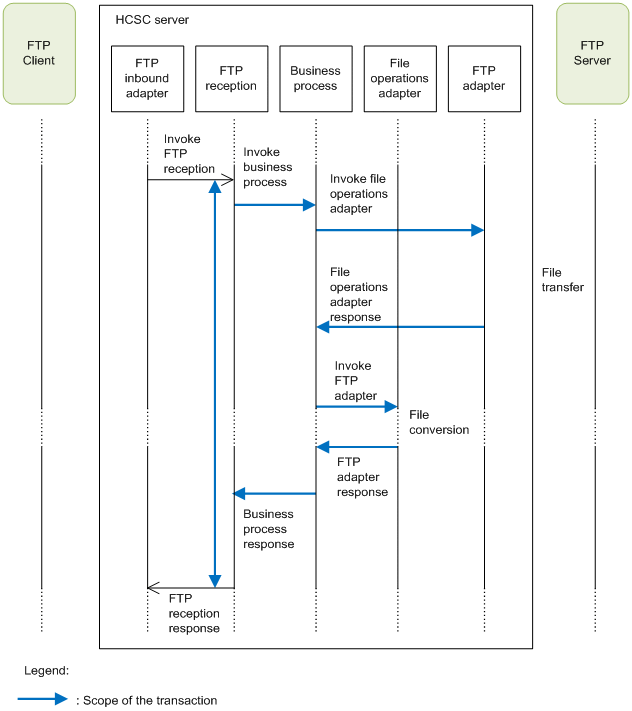

Figure 8-43 For synchronous business processes (To transfer files from an FTP server to an FTP client)

(b) For asynchronous business processes

The following figure shows the transaction scope for the asynchronous business processes.

For details on the file transfer patterns using asynchronous business processes, see "8.3.1(2) Procedure of file transfer using asynchronous business processes".

Figure 8-44 For asynchronous business processes

(c) For the transfer of files from an FTP client to another FTP client

The following figure shows the transaction scope for the transfer of files from an FTP client to another FTP client.

For details on the file transfer pattern from an FTP client to another FTP client, see "8.3.3 Transfer of files from an FTP client to another FTP client".

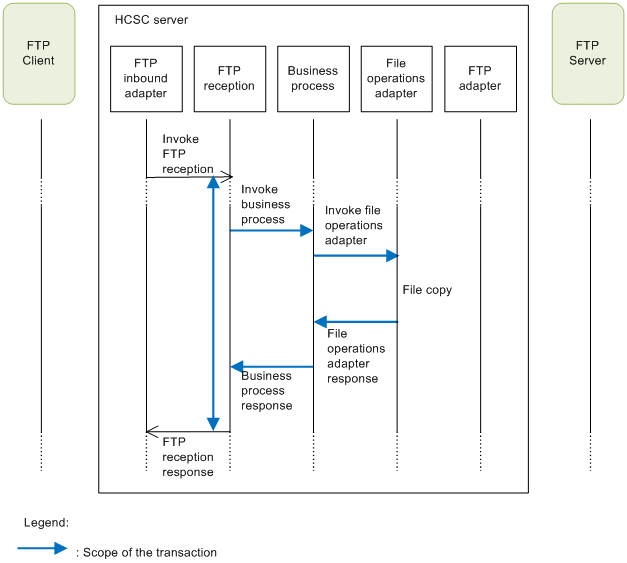

Figure 8-45 For the transfer of files from an FTP client to another FTP client (To transfer files to the common folder in the HCSC server)

Figure 8-46 For the transfer of files from an FTP client to another FTP client (To obtain files from the common folder in the HCSC server)

In FTP integration, when an error occurs, each component deletes the output files to match the processing results and file status.

The following table describes the processing in FTP integration and the processing in the corresponding components:

Table 8-30 Handling of files in FTP integration

Processing	Component	Assumed cause of error	Handling of files in the case of error
			Input file	Output file
File transmission from FTP client	FTP reception	File transfer interrupted Network error Insufficient disk space Disk error	--	Delete
File reception from FTP client	FTP reception	File transfer interrupted Network error Insufficient disk space Disk error	State before processing is guaranteed	--
File transmission to FTP server	FTP adapter	Network error Insufficient disk space Disk error	State before processing is guaranteed	--
File reception from FTP server	FTP adapter	Network error Insufficient disk space Disk error	--	Delete
File conversion	File operations adapter	Conversion error Insufficient disk space Disk error	State before processing is guaranteed	Delete
File replication	File operations adapter	Insufficient disk space Disk error	State before processing is guaranteed	Delete

Legend:

--: Not applicable.

Note that if the file deletion process does not terminate normally due to the following causes, restart the system: ^#1#2

• The file lock cannot be released
• The files cannot be accessed due to hardware failure such as network error and disk error
• The files cannot be deleted because the system is down

#1

If the file being written to cannot be deleted when an error occurs, the exclusive lock for that file is not released. Therefore, the error does not reach the files to be deleted due to access from the other business processes.

#2

To delete the error files on a shared folder, you must stop the entire system configuring the cluster.

To consider the entire transfer processing for one file as one-phase transaction, you must consider the updated resources as one. In FTP integration, you cannot perform two-phase commit to match the synchronization of updates for multiple resources. Therefore, when you design a business process, you must consider the following points:

• To update multiple resources in one business process, you must design the update between the resources so that the business process matches the synchronization.
• If an error occurs after returning a response to the FTP client in an asynchronous business process, you must perform roll forward processing by restarting the business process.
