This subsection describes how to install Eclipse. Note that this subsection also describes the procedure when Developer is upgraded, and Eclipse is a different version than the earlier Eclipse.

(a) How to install Eclipse

You install Eclipse to be used for developing and executing J2EE applications. You use the following procedure to install Eclipse:

1. Create a directory to install Eclipse.
   You create a directory to install Eclipse and a directory that is used temporarily for installing Eclipse (work directory).

2. Acquire the archive file of Eclipse.
   Acquire the archive file of Eclipse from the Eclipse.org site. The following archive file is used for Eclipse version 4.2.1:


   For Windows x86 (including WOW64 environment)

   eclipse-jee-juno-SR1-win32.zip

   For Windows x64

   eclipse-jee-juno-SR1-win32-x86_64.zip

   Reference note

   You can also use the archive file of products bundled in Developer. In such cases, you need not acquire the archive file from the download site.

3. Extract the Eclipse archive file.
   You extract the acquired Eclipse archive file in the work directory created in step 1.

4. Copy the extracted Eclipse file.
   You copy the Eclipse folder extracted in step 3 to the installation directory of Eclipse created in step 1.

5. Delete the work directory.


   Reference note

   Apply a language package in conformity with the downloaded version.

(b) When using an Eclipse version different than the version used earlier

When you upgrade Eclipse, and use a version different than the earlier version, you first delete the installation directory from Windows Explorer, and then install Eclipse.

You use the following procedure to set up the Eclipse plug-in that is provided by Developer:

1. Copy and paste the link file.
   There are following two types of copy source files:

   • Developer-installaion-directory\common\dropins\com.cosminexus.common.plugin.link
   • Developer-installation-directory\plugins\dropins\com.cosminexus.plugin.link
   The following is the copy destination folder:


   Eclipse-installation-directory\eclipse\dropins

2. Copy eclipse.ini that exists immediately below Eclipse-installation-directory\eclipse, and save to any location.
   This is used to return Eclipse to the status before installing Developer.

3. Edit eclipse.ini that exists immediately below Eclipse-installation-directory\eclipse.
   The following example describes the editing of eclipse.ini. Add the part in bold.


   For Windows x86 (Including WOW64)

   -vm Developer-installation-directory\jdk\bin\javaw.exe#1 -startup plugins/org.eclipse.equinox.launcher_1.3.0.v20120522-1813.jar --launcher.library plugins/org.eclipse.equinox.launcher.win32.win32.x86_1.1.200.v20120522-1813 -product org.eclipse.epp.package.jee.product --launcher.defaultAction openFile --launcher.XXMaxPermSize 256M -showsplash org.eclipse.platform --launcher.XXMaxPermSize 256m --launcher.defaultAction openFile -vmargs -Dosgi.requiredJavaVersion=1.5 -Dhelp.lucene.tokenizer=standard -Xms40m -Xmx512m -XX:MaxPermSize=128m#2 -Djava.endorsed.dirs=Developer-installation-directory/jaxp/lib -Dosgi.configuration.area=@user.home/ADP/eclipse/configuration#3

   For Windows x64

   -vm Developer-installation-directory\jdk\bin\javaw.exe#3 -startup plugins/org.eclipse.equinox.launcher_1.3.0.v20120522-1813.jar --launcher.library plugins/org.eclipse.equinox.launcher.win32.win32.x86_64_1.1.200.v20120522-1813#2 -product org.eclipse.epp.package.jee.product --launcher.defaultAction openFile --launcher.XXMaxPermSize 256M -showsplash org.eclipse.platform --launcher.XXMaxPermSize 256m --launcher.defaultAction openFile -vmargs -Dosgi.requiredJavaVersion=1.5 -Dhelp.lucene.tokenizer=standard -Xms40m -Xmx512m -XX:MaxPermSize=256m#2 -Djava.endorsed.dirs=Developer-installation-directory/jaxp/lib -Dosgi.configuration.area=@user.home/ADP/eclipse/configuration#3

   #1

   If Developer-installation-directory\jdk\bin is specified in the environment variable PATH, you need not code the -vm option.

   #2

   We recommend this value for Eclipse.

   When using Eclipse, if java.lang.OutOfMemoryError: PermGen space occurs due to an insufficient Permanent area, increase the value of MaxPermSize to an appropriate size.

   #3

   Specify this when sharing Eclipse.

4. Specify the -clean option to start Eclipse.


   Eclipse-installation-directory\eclipse\eclipse.exe -clean

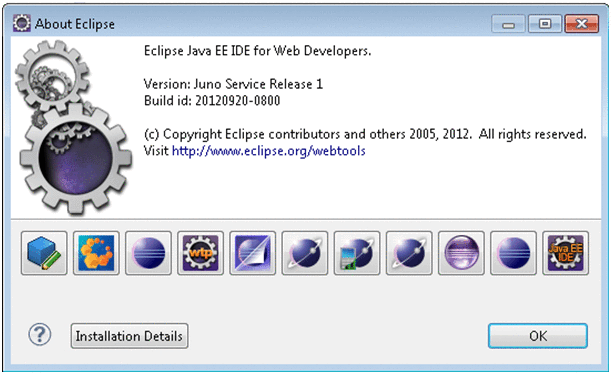

5. From the Eclipse menu, select Help - About Eclipse.
   Confirm that the icons with a frame are displayed in the About Eclipse dialog box.




6. After confirming, click the OK button.


   Reference note

   • If the About Eclipse dialog box appears when starting the Eclipse that is set up, the icons with a frame might not be displayed. In such cases, if you re-start Eclipse, the icons with a frame will be displayed.
   • Based on the procedure of this section, the following Eclipse plug-ins are set up:
     Application Development Plug-in
     Sharing Library Plug-in
