You can use Development Environment Instant Setup to change the settings for the debug environment built using Development Environment Instant Setup.

To change the debug environment settings with Development Environment Instant Setup:

1. From the Start menu, choose Program - Cosminexus - First Setup - Modify Debugging Environment.

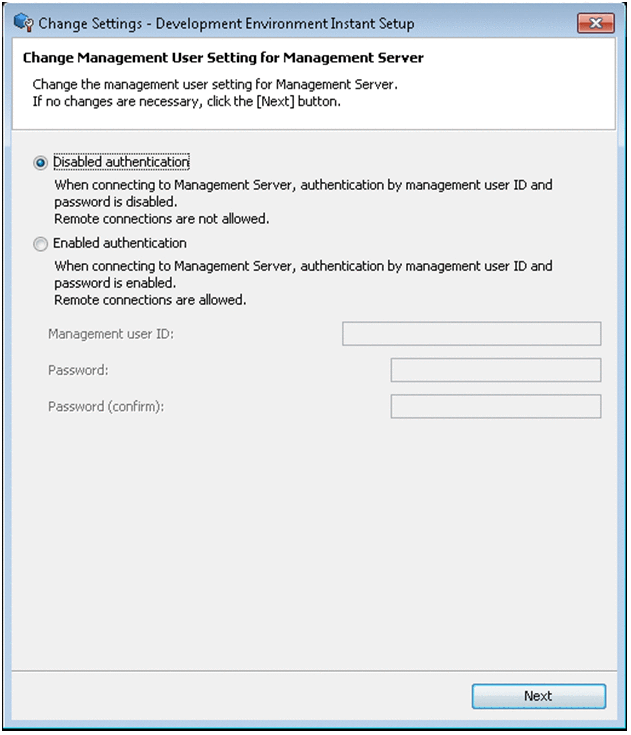

   Development Environment Instant Setup starts and the Change Management User Settings for Management Server page of the Change Settings - Development Environment Instant Setup dialog box is displayed.




2. Change the management user settings, and then click the Next button.
   If the management user settings need not be changed, click the Next button and go to the next page.
   For details on the management user settings, see the subsection 2.3.5 Custom setup of the debug environment.

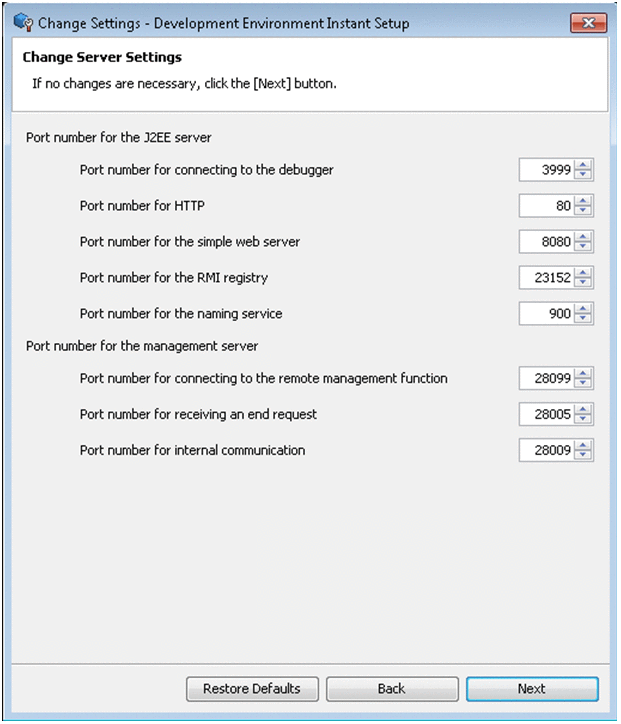

   The Change Server Settings page is displayed.




   If the port number settings need not be changed, go to step 4.

3. Change the port number of the J2EE server or Management Server.
   Specify the port number using the () and () buttons, () and () keys, or enter the number directly.


   Items		Specified values
   Port number for the J2EE server	Port number for connecting to the debugger	Specify the port number to be used for connecting the debugger to the J2EE server using single-byte numeric characters. The range for specification is 0 to 65535.
   	Port number for HTTP	Specify the HTTP port number to be used by the J2EE server using single-byte numeric characters. The range for specification is 1 to 65535.
   	Port number for the simple web server	Specify the port number for the simple Web server to be used by the J2EE server using single-byte numeric characters. The range for specification is 1 to 65535.
   	Port number for the RMI registry	Specify the port number for the RMI registry to be used by the J2EE server using single-byte numeric characters. The range for specification is 1 to 65535.
   	Port number for the naming service	Specify the port number for the CORBA Naming Service that is used as the naming service by the J2EE server using single-byte numeric characters. The range for specification is 1 to 65535.
   Port number for the management server	Port number for connecting to the Remote Management function	Specify the port number for externally connecting to the Management Server Remote Management function using single-byte numeric characters. The range for specification is 1 to 65535.
   	Port number for receiving an end request	Specify the port number for receiving an end request in the Management Server using single-byte numeric characters. The range for specification is 1 to 65535.
   	Port number for internal communication	Specify the port number for internal communication in the Management Server using single-byte numeric characters. The range for specification is 1 to 65535.

4. Click the Next button.

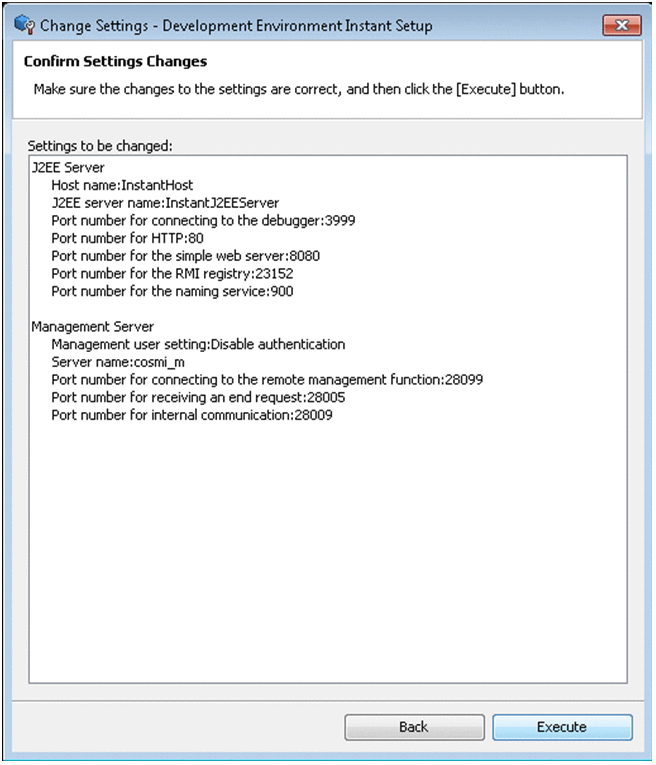

   The Confirm Settings Changes page is displayed.




5. Check the set value displayed in the Settings to be changed area.
6. Click the Execute button.
   The Progress Status page is displayed.

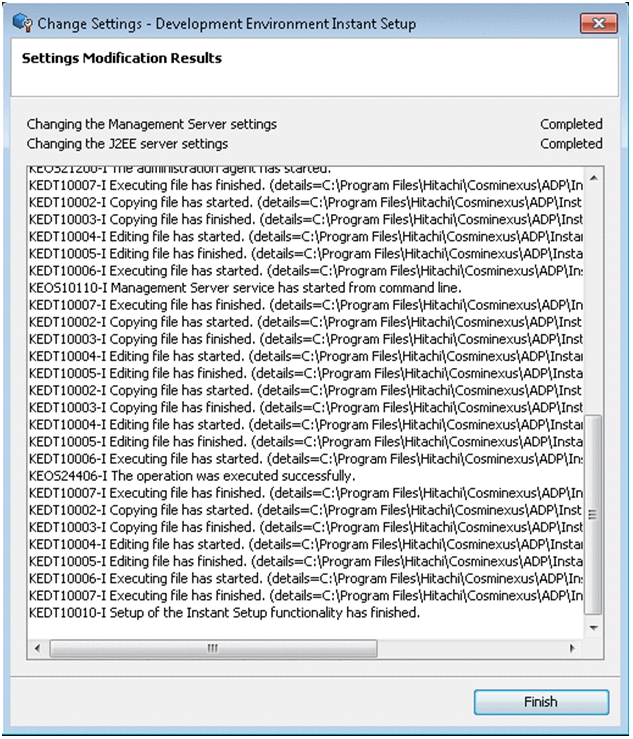

   After completing the setting changes, the Settings Modification Results page is displayed.




7. Click the Finish button.
   The Change Settings - Development Environment Instant Setup dialog box is closed.


   Note

   Actions when an error occurs

   For details on the actions to be taken when an error occurs, see the description on the actions to be taken when processing is interrupted described in the notes of 2.3.4 Standard setup of the debug environment.

   To change the environment without using Development Environment Instant Setup

   You can also use the management portal to change the settings of the J2EE server that is set up using Development Environment Instant Setup.

   However, in the case of the J2EE server on which the settings are changed using the management portal, if you try to re-change the settings using Development Environment Instant Setup, an error might occur.

   After changing the environment without using the Change Settings - Development Environment Instant Setup dialog box, if you change the settings in the Change Settings - Development Environment Instant Setup dialog box, the settings that are changed without using the Change Settings - Development Environment Instant Setup dialog box will be deleted from the debug environment. If the settings changed without using the Change Settings - Development Environment Instant Setup dialog box are deleted from the debug environment, re-set up the deleted settings.

   Reference note

   Status of the servers after settings are changed

   If you use Development Environment Instant Setup to change the settings, the status of each server is as follows:

   Table 2-4 Status of the servers after the settings are changed

   Server name	Status
   Administration Agent	R
   Management Server	R
   J2EE server	N#
   Performance tracer	S
   Embedded database	S

   Legend:

   R: Started

   N: Stopped

   S: Status is the same as before changing the settings

   #

   The contents changed when the J2EE server is running are enabled.




   Checking the setup log

   The log when Development Environment Instant Setup is executed can be checked in the debug environment setup log. For details on how to check the setup log, see Appendix E.4 Collecting the information during the execution of the Development Environment Instant Setup functionality and Eclipse setup functionality.
