With the standard setup of Development Environment Instant Setup, the debug environment is set up using determined values. To execute standard setup, the following conditions must be satisfied:
- Directory in which the embedded database is created (directory for setup file and RD area file)
- Developer-installation-directory/ADP/DB exists.
- The path length of Developer-installation-directory/ADP/DB is within 80 bytes.
- Files do not exist in Developer-installation-directory/ADP/DB.
- The following directories and files do not exist under Developer-installation-directory/ADP/DB:
- area directory, area file
- bats directory, bats file
- conf directory, conf file
- ini directory, ini file
- A path using a network drive is not specified.
- Port number specified in Development Environment Instant Setup
The port numbers do not overlap with the other port numbers used in the system. For details on the port numbers used in the standard setup, see 2.3.3 Settings for the environment to be set up.
To execute the standard setup of the debug environment:
- From the Start menu, choose Program - Cosminexus-First Setup - Setup Debugging Environment.

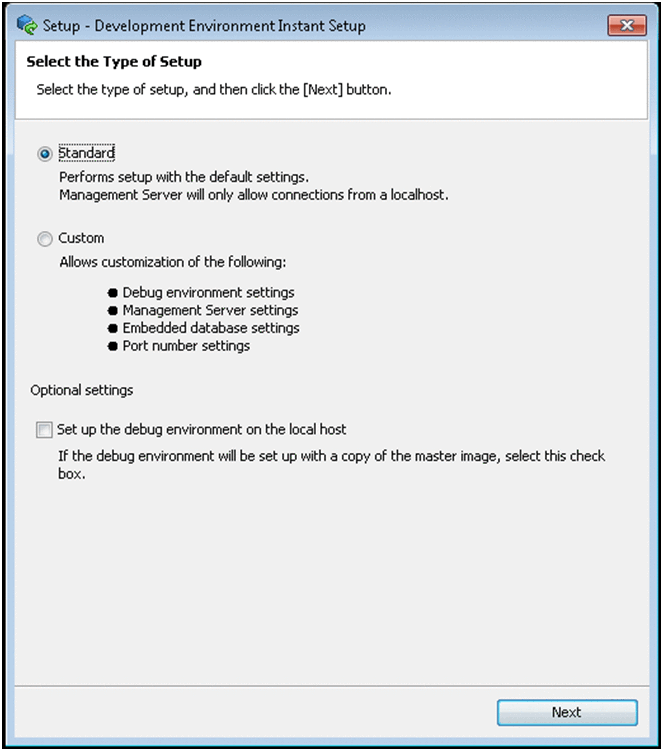

Development Environment Instant Setup is started and the Select the Type of Setup page of the Setup - Development Environment Instant Setup dialog box is displayed.
![[Figure]](FIGURE/ZU020900.GIF)
If the Set up the debug environment on the local host check box is selected, a debug environment can be built as a master image for reproduction. Select the check box, if necessary.
- Select Standard and click the Next button.

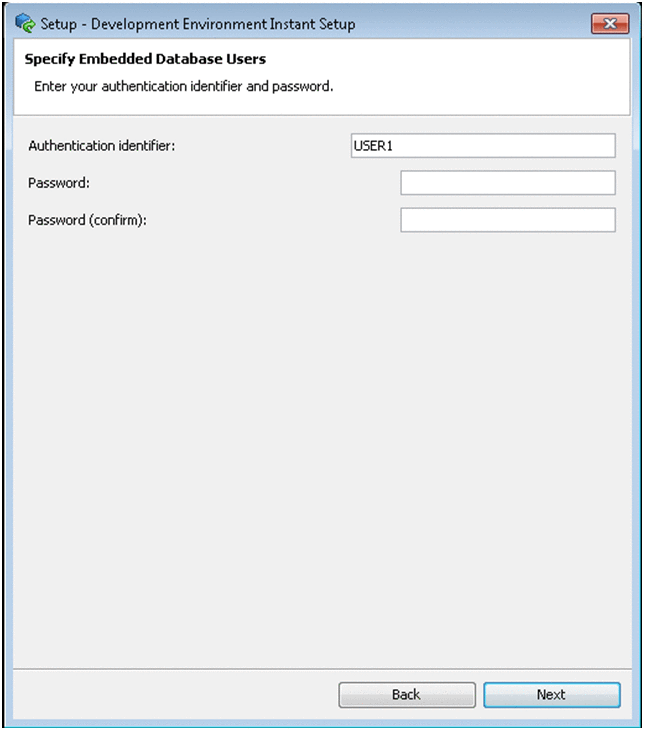

The Specify Embedded Database Users page is displayed.
![[Figure]](FIGURE/ZU021100.GIF)
- Specify the following items:
Items |
Specified values |
Authentication identifier |
Specify the authentication identifier to be used when operating the embedded database.
Specify the user ID using single-byte alphanumeric characters within 8 bytes. |
Password |
Specify the password to be used when operating the embedded database.
Specify the password using single-byte alphanumeric characters within 30 bytes beginning with a single-byte alphabetical character. |
Password (confirm) |
Specify the value same as the value specified in Password. |
- Click the Next button.

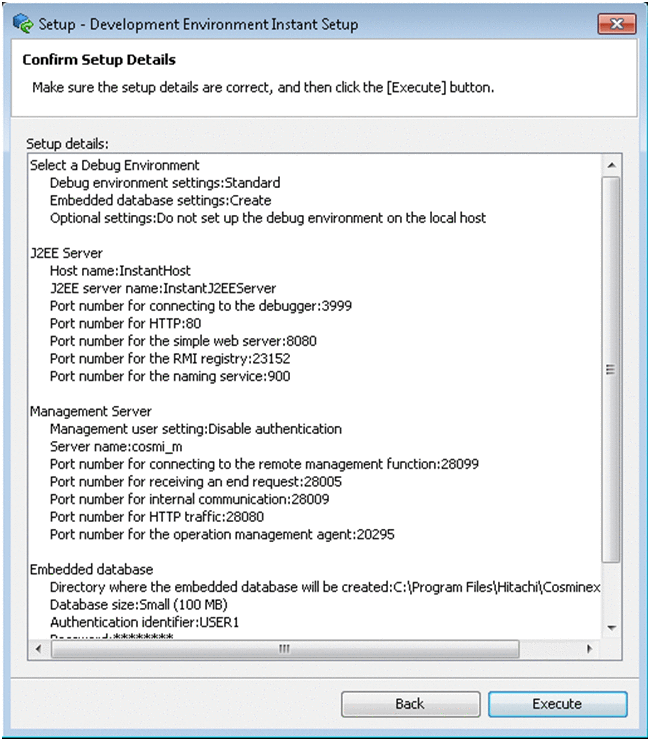

The Confirm Setup Details page is displayed.
![[Figure]](FIGURE/ZU021200.GIF)
Check the setup values displayed in the Setup details area. For details on the settings of an environment built using the standard setup, see 2.3.3 Settings for the environment to be set up.
Note that the password for the embedded database user is displayed using eight asterisks (*), regardless of the specified value.
- Click the Execute button.
The Progress Status page is displayed.

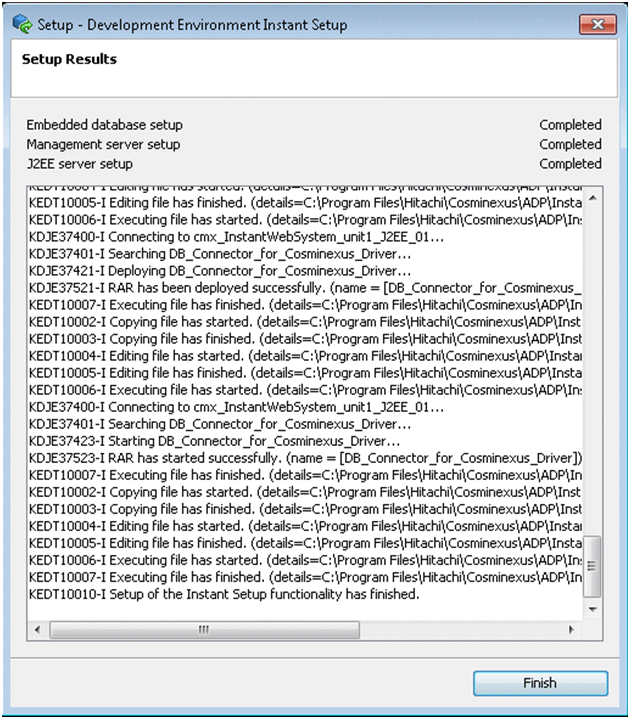

When the setup is completed, the Setup Results page is displayed.
![[Figure]](FIGURE/ZU021300.GIF)
- Click the Finish button.
The Setup - Development Environment Instant Setup dialog box is closed.
- Note
- Action to be taken when the processing is interrupted
- If the processing is interrupted, execute unset up and then execute the setup again. For details on the unset up procedure, see 2.8.1 Unset up the debug environment.
- If the processing is interrupted because of an error, check the error message displayed on the console to eliminate the error, and then execute unset up. After that, re-execute the setup.
- For details on the displayed error messages, see the manual uCosminexus Application Server Messages, and take action.
- If an error occurs while setting the embedded database, see the manual HiRDB Messages.
- Notes on changing the built environment
- If you want to change the settings that cannot be changed with Development Environment Instant Setup, complete the setup, and then use the management portal to change the settings. However, in the case of a J2EE server for which the settings are changed using the management portal, if you try to change the settings using Development Environment Instant Setup, an error might occur.
- For details on the management portal, see the manual uCosminexus Application Server Management Portal Operation Guide .
- Reference note
- Status of servers after setup
- When you use Development Environment Instant Setup for setup, the status of each server is as follows:
Table 2-3 Status of the servers after setup
Server name |
Status |
Administration Agent |
R |
Management Server |
R |
J2EE server |
N |
Performance tracer |
R# |
Embedded database |
R |
- Legend:
- R: Started
- N: Stopped
- #
- If the debug environment is built using the localhost settings, the performance tracer is in stopped status.
- Checking the setup log
- When using Development Environment Instant Setup, a log is output to the debug environment setup log. For details on how to check the setup log, see Appendix E.4 Collecting the information when executing the Development Environment Instant Setup functionality and Eclipse setup functionality.
