If you use Development Environment Instant Setup, you can set up the environment as shown in the following figure.

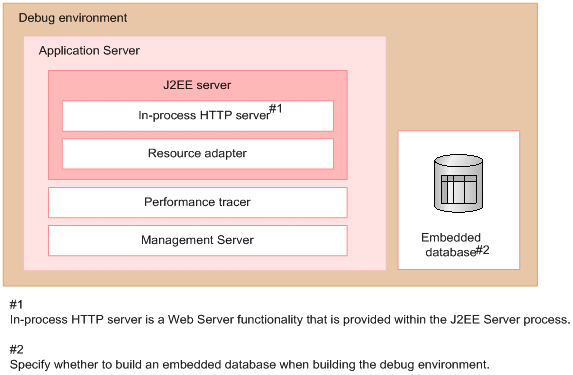

Figure 2-3 System to be set up using Development Environment Instant Setup

You can use Development Environment Instant Setup to execute setup of the following components:

• J2EE server^#1
• Performance tracer
• Management Server
• Embedded database^#2


  #1

  Including the in-process HTTP server and resource adapters.

  #2

  An embedded database is a database for the debug environment provided with Developer. The embedded database can only be used when you test a J2EE application that uses HiRDB in the execution environment. If databases such as Oracle are used in the execution environment, you cannot use an embedded database for testing in the debug environment. Also, use the JDBC driver provided with Developer as the JDBC driver to be used for connecting to the embedded database. Note that the JDBC driver provided with Developer does not support Connector 1.5.

You can choose between the standard setup and the custom setup as the method for executing the setup. If you execute standard setup, the environment will be built with the values listed in Table 2-2. If you execute custom setup, you can change the following contents to any value:

• Settings of the debug environment that is to be created
• Directory where the embedded database is created (directory for setup file and RD area file)
• Size of the embedded database
• Port number of the J2EE server
• Specify the Management Server Management User
• Port number of the Management Server
• Port number of the embedded database

The following table describes the environment values that are set up automatically by Development Environment Instant Setup. Choose either standard setup or custom setup depending on the environment to be built.

Table 2-2 Environment values set up by Development Environment Instant Setup

Environment	Item	Values set in standard setup	Modifiable with custom setup
J2EE server	Host name	InstantHost	N
	J2EE server name (display name)	InstantJ2EEServer	N
	Port number for connecting to the debugger	3999#1	Y
	HTTP port number	80	Y
	Port number of the simple Web server	8080	Y
	Port number of the RMI registry	23152	Y
	Port number of the naming service (port number of the in-process naming service)	900	Y
	Number of servers that can be built	1	N
	Logical server name	Logical server name created with the Smart Composer functionality	N
	In-process HTTP server	Used	N
	Definition of host that permits access	Access from all the hosts is permitted	N
	Light transaction	Enabled	N
	Fixed port number for JTA recovery	20302	N
	Reload functionality	Files specified for reloading are as follows: EJB-JAR Servlets JSPs	N
	Update detection interval for reload	1 second	N
	Security manager	Not used#2	N
	Class path	add.class.path=Developer-installation-directory/DB/CLIENT/UTL/pdjdbc2.jar	N
	JSP debug	Enable	N
	Output the stack trace to the default error page used when an exception occurs	Enable	N
Management Server	Server name	cosmi_m	N
	Integrating with Eclipse console output	Integrated	N
	Output information to console	Output	N
	Starting the Administration Agent	Automatic	N
	Starting the Management Server	Automatic	N
	Connection port number of the Remote Management function	28099#3	Y
	Port number for receiving an end request	28005	Y
	Port number for internal communication	28009	Y
	Port number for connected HTTP	28080	Y
	Port number of Administration Agent	20295	Y
	Management user settings	No authentication	Y
	Management user ID#4	--	Y
	Password#4	--	Y
	Host that is allowed to connect to the Management Server	localhost	N#5
Embedded database	Directory in which an embedded database is created (directory for setup file and RD area file)	Developer-installation-directory/ADP/DB/	N
	Database size	Small (100MB)	N
	Authorized identifier	USER1#6	N
	Password	-- #6	N
	Port number	22200	Y
	Start and stop	User operations#7	N
Host	Number of hosts that can be built	1	N
	Host name	Host name created with the Smart Composer functionality	N
	Display name	InstantHost	N
Performance tracer	Number of servers that can be built	1	N
	Logical server name	Logical server name created with the Smart Composer functionality	N
	Display name	InstantPRF	N
Resource adapter	Import	Import DBConnector_HiRDB_Type4_CP.rar	N
	Display name#8	DB_Connector_for_Cosminexus_Driver	N
	User ID#8	USER1#9	N
	Password #8	--#9	N
	description (configuration property) #8	22200#9	N
	DBHostName (configuration property) #8	localhost	N
	Minimum number of connections and pools#8	1	N
	Maximum number of connections and pools#8	8	N
	Deploy	Deployed	N

Legend:

Y: The value can be changed with custom setup.

N: The value cannot be changed with custom setup. The value as the standard setup value is set.

--: The value is not set. The cell is empty.

#1

Used in the Eclipse debug configuration.

In a standard setup of the Development Environment Instant Setup functionality, 3999 is set up as the port number for debug connection.

In Windows XP, this port number (3999) can be allocated to a program other than OS. To avoid conflicting port numbers, use a custom setup to set different port numbers if necessary.

#2

Specify -nosecurity in the boot option of the J2EE server.

#3

Used for connecting to Management Server from Eclipse.

#4

Do not make any changes other than the changes in the settings of Development Environment Instant Setup. If other changes are made, the changes in the setup and unset up of Development Environment Instant Setup cannot be executed.

#5

If Enabled authentication is set for the Management Server management user during custom setup, "*" is set up and access from all the hosts is allowed.

#6

You can change the values even in standard setup.

#7

You can use Start menu shortcut and commands to start and stop the embedded database. For details on the procedure, see 6.2 Starting and stopping an embedded database.

#8

This item is set as the Connector attribute of the imported resource adapter.

#9

The same value as the setup value of the embedded database is set.
