6.8.5 Setting variables dialog box

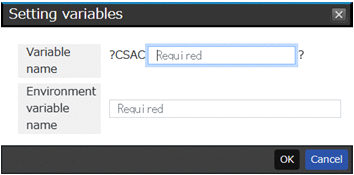

The Setting variables dialog is displayed for adding a new variable by pressing Add or editing an existing variable by pressing Edit in the Environment variables for the execution host.
|
|
![[Figure]](GRAPHICS/ZU060100.GIF)
The following shows the display items and input restrictions for the Setting variables dialog box:
- Variable name
-
Enter the name of a variable, in the ?CSACxxxx? format with xxxx replaced with a desired value that stores the value of the environment variable set on the execution host and sets the information to be passed.
- Environment variable name
-
Enter an environment variable name to be stored in the variable.
- OK button
-
Click this button to register the variable with the entered information.
- Cancel button
-
Closes the Setting variable dialog box without doing anything.
No.
Display item
Input format
Input restriction
Required/Not required
Assumed value
1
Variable name
Text box
Character string within 58 bytes.
A to Z (uppercase alphabetical letters) and 0 to 9 (Arabic numbers) are available.
Required
None
2
Environment variable name
Text box
Character string within 64 bytes.
Required
None
