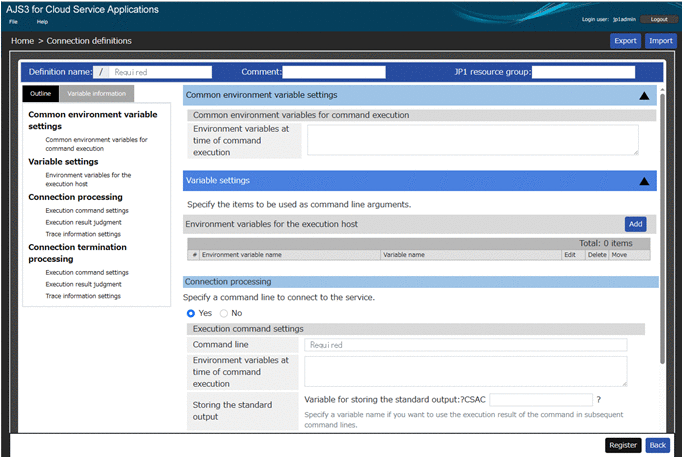

6.8 Connection definitions window
In the Connection definitions window, you can view and edit connection definitions in detail.
|
|
![[Figure]](GRAPHICS/ZU060090.GIF)
The following shows the display items and input restrictions for the Connection definitions window:
- Definition name
-
Enter the definition name of the connection definition information. It is saved in the format of /definition-name. It cannot be changed when editing.
- Comment
-
Display the comment of the connection definition information.
- JP1 resource group
-
Display the JP1 resource group of the connection definition information.
- Outline tab
-
This tab shows the outline of the items in the right-hand definition area in a tree format. Clicking an item in the outline jumps to its corresponding item in the right-hand definition area.
- Cautionary note
-
With an item hidden in the right-hand definition area, clicking the corresponding item in the outline does not jump to the item. Show in advance the hidden item in the right-hand definition area.
- Variable information tab
-
Displays the variable information defined by each item in the definition area on the right side and the variable information that is reserved by the system and available by default.
- Export button
-
Clicking this button outputs the connection information being displayed as the connection definition file (slcondefExport.txt). This file will be output to the download folder set by the Web browser.
For details about a connection definitions file, see F.1 Connection definition file.
- Note
-
Even during input of connection definitions, a connection definition file can be exported.
- Import button
-
Click this button to display the Open dialog allowing you to select a connection definition file to be reflected to the screen. Select a connection definition file. It will be reflected on the Connection definitions screen.
For details about the format of a connection definition file, see F.1 Connection definition file.
- Note
-
Even during input of connection definitions, a connection definition file can be imported.
- Register button
-
Click this button to register the connection definitions, which have been input on the Connection definitions screen with JP1/AJS3 for Cloud Service Applications. When registration is successfully completed, the Home window is displayed. If an error occurs, the item with the error is highlighted.
- Back button
-
Go to the Home window without doing anything.
No.
Display item
Input format
Input restriction
Required/Not required
Assumed value
1
Definition name
Text box
Character string of 1 to 30 bytes.
Single-byte alphanumeric characters, - (hyphen), and _ (underscore) are available.
Required
None
2
Comment
Text box
Character string within 243 bytes.
Not required
None
3
JP1 resource group
Text box
Character string within 63 bytes.
Single-byte alphanumeric characters and _ (underscores) are available.
Not required
JP1_CSA
