6.8.4 Connection termination processing

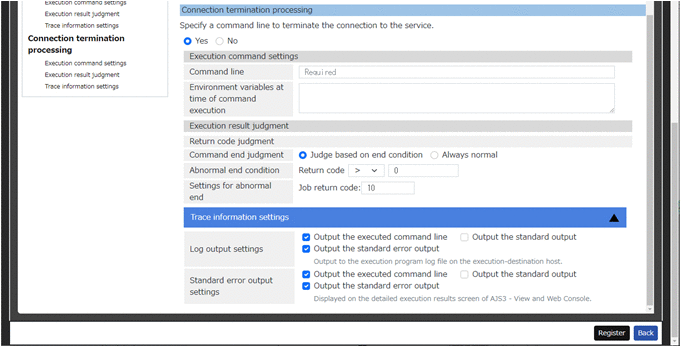

This section explains about Connection termination processing in the Connection definitions window.
|
|
![[Figure]](GRAPHICS/ZU060093.GIF)
When setting disconnection processing by specifying a command line for disconnection from a service, select Yes and set the items shown below. If No is selected, the items below are not shown.
The following shows the display items for Connection termination processing:
- Organization of this subsection
(1) Execution command settings
- Command line
-
Enter the command line to run.
- Environment variable at time of command execution
-
Enter an environment variable to be used for command line execution in the environment-variable-name=environment-variable-value format. When specifying multiple variables, enter a line break for each one.
No.
Display item
Input format
Input restriction
Required/Not required
Assumed value
1
Command line
Text box
Character string within 1,023 bytes.
A tab character can also be specified.
You can specify a variable in this input item.
Also, specify "@CSA(characters-to-escape)ASC@" at locations where escaping is required. For details, see section 4.3.2 Escaping a command line for cloud service linkage information.
Required
None
2
Environment variables at time of command execution
Text box
Character string of 20,479 bytes or less.
No line break is counted as part of the character string above.
A tab character can also be specified.
Up to 27,304 characters can be entered.
You can specify a variable in this input item.
Not required
None
(2) Execution result judgment
- Return code judgment - Command end judgment
-
Select operation at the end of a command from either of the following.
-
Judge based on the end condition
Judge the execution result as normal or abnormal based on the return code.
-
Always normal
Judge the execution result always as normal regardless of the return code. When this item is selected, Abnormal end condition and Settings for abnormal end are hidden.
-
- Abnormal end condition
-
Enter an abnormal end condition of the return code of the execution command.
- Settings for abnormal end
-
Set operation when the abnormal end condition is met.
- Job return code
-
Enter the return code of the job.
No.
Display item
Input format
Input restriction
Required/Not required
Assumed value
1
Conditions for Abnormal end condition
List box
Select from the following.
Equal to (=), not equal to (!=), less than (<), more than (>), equal to or less than (<=), equal to or more than (>=)
Required
None
2
Value for Abnormal end condition
Text box
A numerical value between 0 and 2,147,483,647.
Required
None
3
Job return code
Text box
A numerical value between 1 and 50.
Required
None
(3) Trace information settings
- Log output settings
-
Configure settings for output to the service linkage job log file. For details about service linkage job log, see 8.2.5 Service Linkage Job Log.
- Output the executed command line
-
Select whether to output the executed command line to the log.
- Output the standard output
-
Select whether to output the standard output of executed commands to the log.
- Output the standard error output
-
Select whether to output the standard error output of executed commands to the log.
- Standard error output settings
-
Sets the output to the standard error output.
- Output the executed command line
-
Select whether to output the executed command line to the standard error output.
- Output the standard output
-
Select whether to output the standard output of the executed command to the standard error output.
- Output the standard error output
-
Select whether to output the standard error output of the executed command to the standard error output.
