6.9 Authentication definitions window

In the Authentication definitions window, you can view and edit authentication definitions in detail.

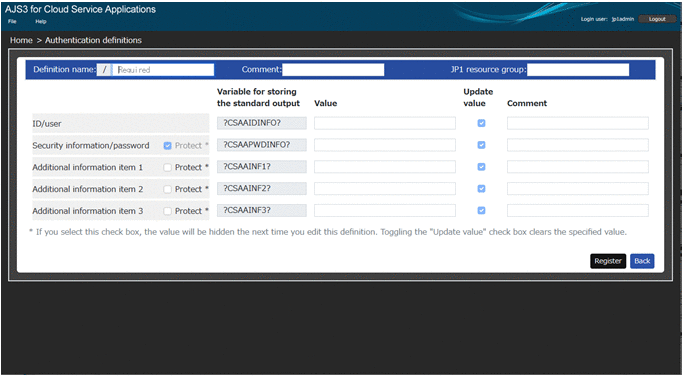

Figure 6‒19: Authentication definitions window

The following shows the display items and input restrictions for the Authentication definitions window:

Definition name

Enter the definition name of the authentication definition information. It is saved in the format of /definition-name. It cannot be changed when editing.

Comment

Display the comment of the authentication definition information.

JP1 resource group

Display the JP1 resource group of the authentication definition information.

Register button

Click this button to register the connection definitions, which have been input on the Authentication definitions screen with JP1/AJS3 for Cloud Service Applications. When registration is successfully completed, the Home window is displayed.

If an error occurs, the item with the error is highlighted.

Back button

Go to the Home window without doing anything.

No.	Display item	Input format	Input restriction	Required/Not required	Assumed value
1	Definition name	Text box	Character string of 1 to 30 bytes. Single-byte alphanumeric characters, - (hyphen), and _ (underscore) are available.	Required	None
2	Comment	Text box	Character string within 243 bytes.	Not required	None
3	JP1 resource group	Text box	Character string within 63 bytes. Single-byte alphanumeric characters and _ (underscores) are available.	Not required	JP1_CSA

Organization of this section

• 6.9.1 ID/user

• 6.9.2 Security information/password

• 6.9.3 Additional information item 1 to 3
