4.6 Tracking Page

The Tracking page opens if you select the business process for management target from the tree view, and choose the Tracking tab. In the Tracking page, you can search the execution log of the process instances, delete, re-execute, and acquire the detailed information. This section describes the structure of the Tracking page.

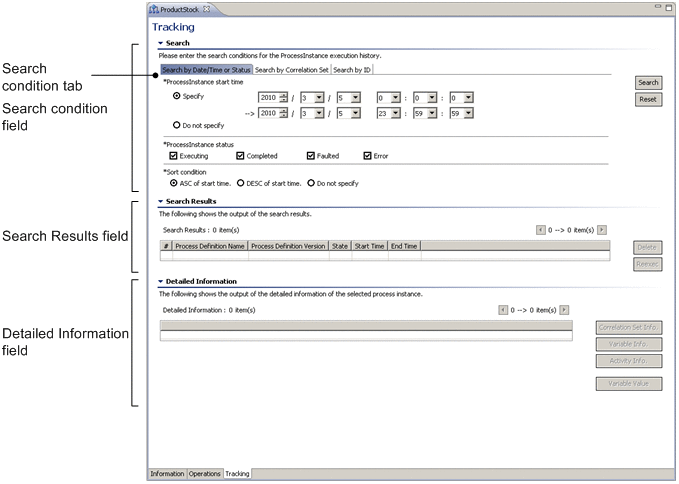

Figure 4‒14: Structure of the Tracking page

• Search condition tab

You switch the search conditions between date and time or status search, correlation set search or identifier search.

• Search condition field

Select or enter search conditions; and executes a search.

• Search Results field

Displays the search results, deletes execution logs, or re-executes execution logs.

• Detailed Information field

Selects detailed information from the search results, or displays detailed information.

Organization of this section

• 4.6.1 Search condition field

• 4.6.2 Search Results field

• 4.6.3 Detailed Information field
