4.6.1 Search condition field
Use this field to select or enter search conditions, or perform a search.
- Organization of this subsection
(1) Search by Date/Time or Status

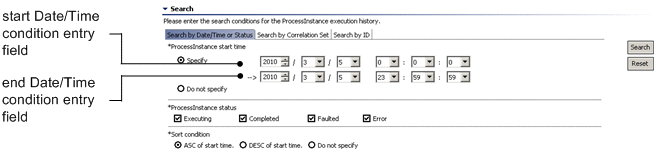

- Search by Date/Time or Status tab
-
This tab displays a page for searching process instances using date/time or status as the search condition.
- ProcessInstance start time
-
Search process instances with the process instance start date/time specified.
- Specify radio button
-
Searches process instances with the process instance start date/time specified.
- Do not specify radio button
-
Searches process instances without specifying the process instance start date/time.
- Start date/time condition entry field
-
Enter the start date/time for the search range. The time zone for the machine that is running is assumed for the specified date/time.
- (year)
-
Specifies the start year for the search range as a 4-digit integer. The permitted value range is from 1970 to 9999.
- (month)
-
Selects the start month for the search range from the drop-down list. The permitted value range is from 1 to 12.
- (date)
-
Selects the start date for the search range from the drop-down list. The permitted value range is from 1 to 31.
- (hour)
-
Selects the start hour for the search range from the drop-down list. The permitted value range is from 0 to 23.
- (minute)
-
Selects the start minute for the search range from the drop-down list. The permitted value range is from 0 to 59.
- (second)
-
Selects the start second for the search range from the drop-down list. The permitted value range is from 0 to 59.
- End date/time condition entry field
-
Enters the end date/time for the search range.
The year, month, date, hour, minute, and second are the same as for the start date/time condition entry field.
- • ProcessInstance status
-
Search process instances with the process instance status specified. You can also select multiple statuses and search for those process instances that are in any of the statuses you select.
- Executing check box
-
Searches for the process instances that are currently executing.
- Completed check box
-
Searches for the process instances whose global scope has been completed.
- Faulted check box
-
Searches for the process instances that have terminated with fault and that cannot be detected by the global scope.
- Error check box
-
Checks to search for completed process instance in which an error occurred while executing the service invocation activity.
- • Sort condition
-
Specifies the order in which the search results are displayed.
- ASC of start time. radio button
-
Displays the search results in ascending order by start date/time.
- DESC of start time. radio button
-
Displays the search results in descending order by start date/time.
- Do not specify radio button
-
Displays the search results without specifying the sort condition.
- • Search button
-
Executes the search according to the specified condition.
- • Reset button
-
Resets the search condition that was entered on the selected page to the initial value.
(2) Search by Correlation Set

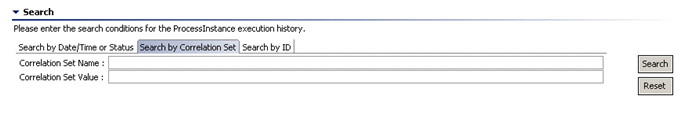

- Search by Correlation Set tab
-
Displays the window for searching process instances from a correlation set as the search condition. You must enter the value in both Correlation Set Name and Correlation Set Value.
- Correlation Set Name
-
Enters the correlation set definition name to be searched, expressed in alphanumeric characters.
- Correlation Set Value
-
Enters the correlation set value to be searched, expressed in alphanumeric characters.
(3) Search by identifier

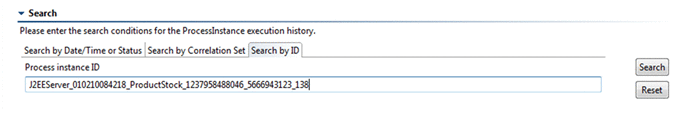

- Search by Identifier tab
-
As the search condition of this tab, select a screen searching the process instance from the process instance identifier.
- Process Instance Identifier
-
Enter the process instance identifier to be searched.
