1.6.22 Check string dialog

In the Check String dialog, you check whether a string contains a specified string or begins with a specified string, and you specify the string to be checked.

This dialog is displayed when you perform one of the following operations:

Right-click the check string function, and select Settings
Double-click the check string function

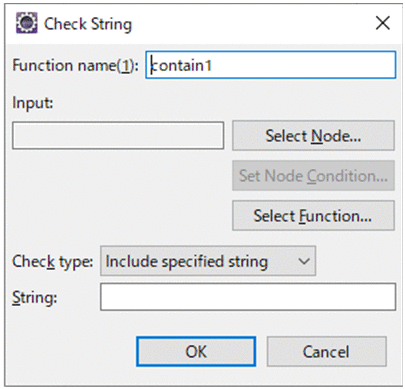

The following figure shows the [Check string] dialog:

Figure 1‒123: [Check string] dialog

Organization of this subsection

(1) Displayed items
(2) Operations that can be performed in this dialog

(1) Displayed items

[Function name]

Displays the function name. If you want to change to any name, specify within 64 characters. You can use NCName definition characters of XML schema.

[Input]

Specify the transformation source node and function of string to be checked. If the check target and check string function are already mapped, that particular search target is displayed.

For the details about the display format in [Input] see "6.4. Mapping Source Display Format" in "Service Platform Basic Development Guide".

[Select Node] button

Displays the [Select node] dialog. Click when you want to specify in [Input], the transformation source node of string to be checked.

For details about [Select Node] dialog, see "1.6.8 Select Node Dialog (Data Transformation)".

[Set node condition] button

Displays the [Set Node Condition] dialog. Click this button to specify a condition for the source node and allow mapping to take place only when that condition is satisfied.

For details about [Set Node Condition] dialog, see "1.6.11 Set Node Condition Dialog". For details about how to set conditions for transformation source node see "6.7 Specifying Node Conditions" in "Service Platform Basic Development Guide".

[Select function] button

Displays the [Select Function] dialog. Click this button to specify in [Input[, the function of the string to be checked.

For details about the [Select Function] dialog, see "1.6.9 Select function dialog".

[Check type]

Shows the check type for the string specified in String. One of the following check types is displayed:

Include specified string
Start with specified string

[Check string]

Specify the string to be checked. A maximum of 1,024 characters can be specified.

[OK] button

Enables the specified contents and closes the dialog.

[Cancel] button

Cancels the specified contents and closes the dialog.

To Page Top

(2) Operations that can be performed in this dialog

You can set up the check string function in [Check string] dialog. For details about how to set up the check string function, see "6.5 Processing value or node in which function is used" in "Service Platform Basic Development Guide".
