2.6.1 Environment setup in HA class configuration

The following figure shows the system configuration when HCSC server is configured in HA cluster:

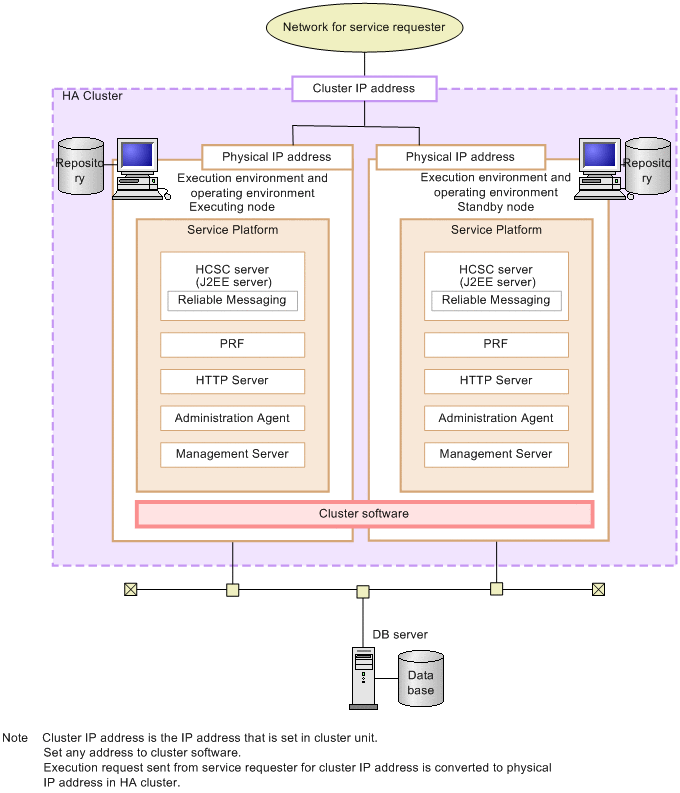

Figure 2‒7: System configuration when HCSC server is configured in HA cluster

Setting methods of cluster IP address differ according to the used cluster software. See the cluster software manual.

In case of new setup in version 08-70 or higher version, you can store HCSC-Manager environment in each execution environment. This enables you to omit the number of operating environment servers.

Important note: Create a unique GUI display name of HCSC cluster in the system.

Using common disk devices

While changing HCSC server to HA cluster configuration, common disk device usage is different for local transactions and for global transactions.

In local transactions

Common disk device is not required. Since HCSC server manages inherited information in the database, common disk device is not used in local transactions.
In global transactions

Common disk device is required. Common disk device is used to inherit transaction information such as OTS status during node switching.

Re-executing a business process after node switching process during server fault

When a business process is re-executed after node switching process to standby node, the following information must be stored in the common disk device:

Operation folder
Common folder
Files in which I/O of file adapter is performed

Store the following information in the local disk device. However, the same value must be set in executing node and standby node.

Text file of main text in mail used in the mail adapter, and the attached file
Definition file used in HCSC server operations
Definition file used in HCSC component

Re-executing a business process using the operation folder

You cannot re-execute a business process after the node switching process to standby node if the business process uses the operation folder and if the business process is executed in a version lower than 09-51.

You can re-execute a business process if the common folder is used instead of the operation folder or if the business process has been executed in 09-51 or higher version. However, you cannot re-execute a business process executed in a version lower than 09-51 because the common folder cannot be used for business processes using the following components:

FTP reception
HTTP reception

The following points show the execution environment (executing node/standby node), operating environment and DB server configuration methods.

Organization of this subsection

(1) Setting up an execution environment (executing node and standby node)
(2) Setting up an operating environment
(3) Setting up DB server

(1) Setting up an execution environment (executing node and standby node)

To set up the execution environment, implement the following operations by executing node and standby node:

(a) Installing Service Platform

For details on how to install Service Platform, see "2.1.2 Installing Service Platform".

(b) Management Server settings

Implement Management Server settings to use HCSC-Manager in the operating environment by the execution environment of HCSC-Manager connection destination.

For details on how to perform Management Server settings, see "2.1.6 Management Server settings for using HCSC-Manager".

(c) SOAP mode settings

While changing HCSC server to HA cluster configuration, SOAP modes used in the configured execution environment and operating environment must match. Different SOAP mode environments cannot co-exist.

The container extension library of J2EE server must be set in order to set SOAP mode. For details on how to set up container extension library of J2EE server, see "3.1.2(4)(e) Setting up the container extension library".

(d) HCSC server configuration settings

Perform settings related to the execution environment of HCSC server configuration. For details on setting contents and how to set, see "2.3 Settings related to execution environment".

To set HCSC server configuration definition file, HCSC server setup definition file and HCSC server runtime definition file in settings related to the execution environment, note the following contents. In all other functionalities, set the same value in the executing node and standby node.

Points to be considered when setting HCSC server configuration definition file

Set "HA" in the cluster type set in HCSC server configuration definition file.

While using the database, set a unique name in HCSC server name.

To invoke Web server IP address of asynchronous service (MDB(WS-R), set in jms-reception.

Different values must be set in executing node and standby node for the following values from among the values set in HCSC server configuration definition file:

Manager name
Manager IP address

Specify the physical IP address for each executing node/standby node in Manager IP address. If you build the operating environment and execution environment on the same machine, you can specify the string localhost.

Set the same value in the executing node and standby node in elements other than the above.

Set the logical IP address in the following definitions:

ip-address of soap-reception definition
ip-address of jms-reception definition
ip-address of ejb-reception definition

For details on how to set the HCSC server configuration definition file, see "2.3.1 Setting HCSC server configuration definition file".

For details on contents to be set in HCSC server configuration definition file, see "6.4.2 HCSC server configuration definition file" in "Service Platform Reference Guide".

Points to be considered when setting HCSC server setup definition file

To set HCSC server setup definition file, consider the following contents.

For details on how to set HCSC server setup definition file, see "2.3.2 Setting HCSC server setup definition file".

For details on contents to be set in HCSC server setup definition file, see "6.4.3 HCSC server setup definition file" in "Service Platform Reference Guide".

Properties in which to set the same values in executing node and standby node

For properties shown in the following table from among the properties set in HCSC server setup definition file, the same value must be set in executing node and standby node. It is not necessary to set naming-service-hostname. Set localhost or physical IP address in IP addresses that are not described in the following table:

Table 2‒23: Properties in which to set the same values in executing node and standby node
Property in which same value is set	Value set in property
db-use	Existence of database use
rm-use	Existence of use of Reliable Messaging
request-ejb	Existence of use of standard synchronous reception (SessionBean)
request-soap	Existence of use of standard synchronous reception (Web service)
request-jms	Existence of use of standard asynchronous reception (MDB(WS-R))
request-jms.maxmessage	Maximum number of messages in standard asynchronous reception (MDB(WS-R)) queue
request-dbq	Existence of use of standard asynchronous reception (MDB(DB queue))
request-dbq.maxmessage	Maximum number of messages in standard asynchronous reception (MDB(DB queue)) queue
request-jms-rdarea	RD area name in standard asynchronous reception (MDB(WS-R))
request-dbq-rdarea	RD area name in standard asynchronous reception (MDB(DB queue))
request-dbq-maxlen	Maximum message length in standard asynchronous reception (MDB(DB queue))
request-userdef-soap	Existence of use of SOAP reception
rm-systemname	Reliable Messaging system name
rm-displayname	Reliable Messaging display name
dbcon-xadisplayname^#1	DB Connector display name for XATransaction or LocalTransaction
dbcon-nodisplayname^#1	DB Connector display name for NoTransaction
dbtype	Used database type
jdbc-type	JDBC driver type
jdbc-url^#2	Database URL for JDBC
jdbc-dbhostname	Database host name
jdbc-dbconnectinfo	Database connection information
db-character-sets	Database character code type
db-tbl-split-key	Existence of use of table range partition functionality by date data
db-tbl-split-corcheck-use	Existence of enhancement of correlation set duplication check
activitynumber-maximum-compatible	Maximum identification number of an activity instance

Note #1: DB connector setting is also the same in executing node and standby node.
Note #2: In the host name to be specified, specify the machine in which the database is stored.

Points to be considered when setting HCSC server runtime definition file

To set HCSC server runtime definition file, the same value must be set in executing node and standby node in all properties.

For details on how to set HCSC server runtime definition file, see "2.3.3 Setting HCSC server runtime definition file".

For details on contents to be set in HCSC server runtime definition file, see "6.5.6 HCSC server runtime definition file" in "Service Platform Reference Guide".

Add the following property if J2EE server name is different in HCSC server configuring the cluster:

request-ejb.optional.name=<Optional name of synchronous requester service (SessionBean) shared in the cluster>

(e) Installing cluster software

Install cluster software. For details on how to install, see the used cluster software document.
