1.2.3 Configuration of the operating environment and the execution environment

The following table describes the configuration pattern of the operating environment and the execution environment that can be achieved if you set to cluster configuration:

Table 1‒1: Configuration of the operating environment and the execution environment at the time of using the cluster
Configuration pattern	Explanation	Database
Operation and execution one-to-one configuration	Deploys the operating environment and the execution environment on a one-to-one basis.	A^#
Operation consolidated configuration	Consolidates the operating environment in the server used at the time of execution.	Y

Legend:

Y: Database can be used.

A: Database can be used only in case of new installation.

#

You cannot use the database if the version is earlier than 08-70. Also, when you upgrade to version 08-70 and later, you cannot migrate to the operation and execution one-to-one configuration using the database.

To implement the operation and execution one-to-one configuration using the database, you must newly build, and not migrate the operation and execution one-to-one configuration operation rather than the migration to unsetup all HCSC servers in the cluster. At that time, the shared table (information such as shared process instances and execution logs) of the cluster stored in the database is deleted.

The following figure shows the configuration example of operation and execution one-to-one configuration:

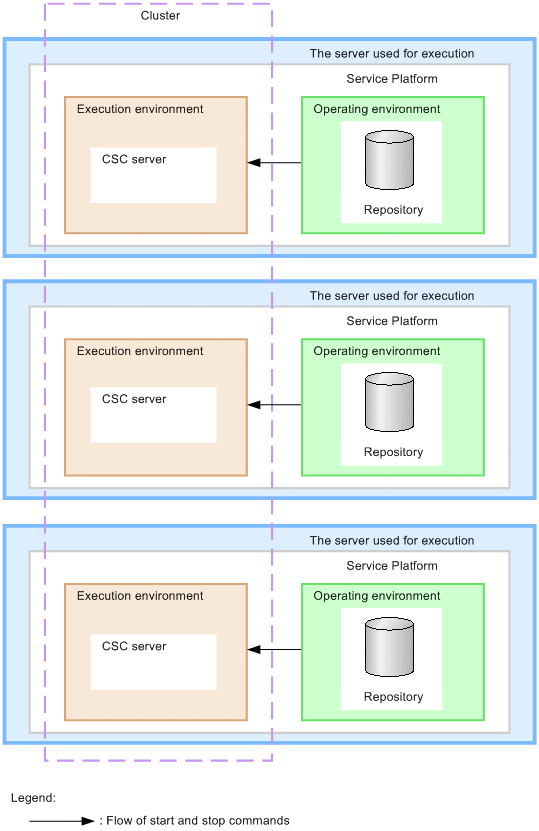

Figure 1‒4: Configuration example of operation and execution one-to-one configuration

The following figure shows the configuration example of the operation consolidated configuration:

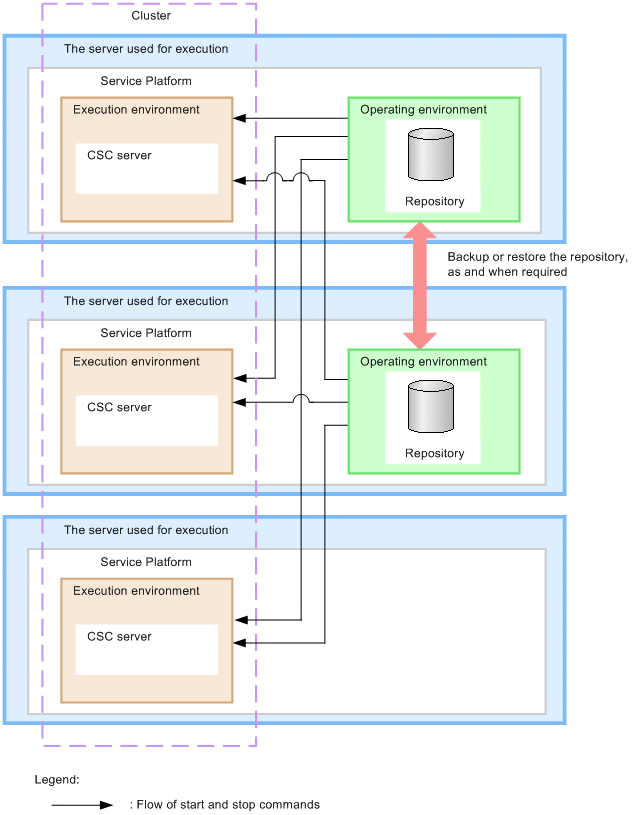

Figure 1‒5: Configuration example of the Operation consolidated configuration
