3.1.2 Setting up the software required for the execution environment
Before you set up the execution environment, you must set up the software required for the execution environment. The settings for the software required for the execution environment differ as follows depending on the usage of the database and Reliable Messaging:
-
When database is used and Reliable Messaging is not used

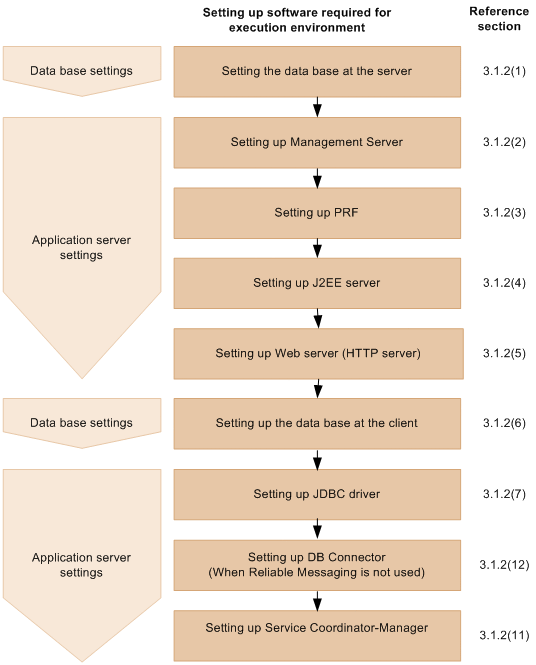

The following figure shows the flow of software settings required for the execution environment and their reference destinations:
Figure 3‒2: Software settings required for the execution environment (When database is used and Reliable Messaging is not used) -
When both database and Reliable Messaging are used

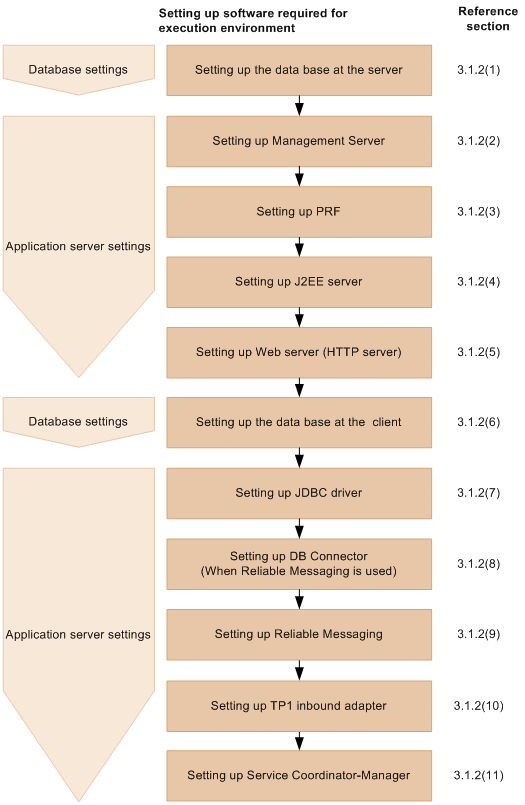

The following figure shows the flow of software settings required for the execution environment and their reference destinations:
Figure 3‒3: Software settings required for the execution environment (When both database and Reliable Messaging are used) -
When both database and Reliable Messaging are not used

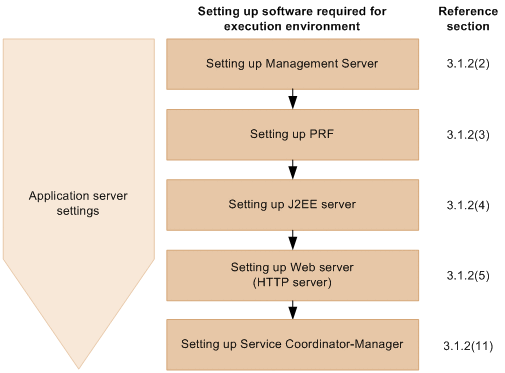

The following figure shows the flow of software settings required for the execution environment and their reference destinations:
Figure 3‒4: Software settings required for the execution environment (When both database and Reliable Messaging are not used)
The following paragraphs describe the software settings to be implemented before you set up the execution environment:
- Organization of this subsection
(1) Setting up the database on the server
Set up both, DB server and DB client, during database setup.
(a) Settings on the DB server (In HiRDB)
Implement the following operations:
- Setting up the character code for the HiRDB server
-
Specify any one of Shift JIS Kanji code, EUC Japanese Kanji code, UTF-8, or single-byte character code as the character code. For details on how to change the character code, see the description related to specifying or selecting character codes in "HiRDB System Installation and Design Guide".
- Important note
-
When the HCSC server is operated in UNIX, the character codes on the HCSC server and HiRDB server must match.
- Setting up the environment
-
For details on HiRDB environment settings, see "HiRDB System Installation and Design Guide".
- Setting up the user permissions
-
First, decide the name of the connected user. Thereafter, to save the management information on HiRDB, set up permissions for the users who will be connecting to HiRDB. In HiRDB, a user is created by setting up the CONNECT permission for the user.
- Permissions to be set up
-
-
CONNECT permission
This permission is required for using HiRDB. This permission enables the user to connect (CONNECT) to the database. An error occurs if a user who does not have the CONNECT permission attempts to use HiRDB.
-
Define schema permission
This permission is required for defining a schema. If you set up the define schema permission, you can define the schema, tables, view tables, indexes, and abstract data types. You can also register a stored procedure and stored function.
-
- How to set up the permissions
-
Use the database definition utility (pddef) and HiRDB SQL Executer to set up the permissions. For details on how to set up the permissions, see "HiRDB System Operation Guide". For details on how to use the database definition utility, see "HiRDB Command Reference".
Procedure to set up the permissions by using the database definition utility:
-
Set up the following environment variables:
In Windows
SET PDHOST=<Host name or IP address of HiRDB server> SET PDNAMEPORT=<Port number of HiRDB server> SET PDUSER=<Name of the user who has DBA permissions>/<password>
In UNIX (Bourne shell)
export PDHOST=<Host name or IP address of HiRDB server> export PDNAMEPORT=<Port number of HiRDB server> export PDUSER=<Name of the user who has DBA permissions>/<password>
-
Execute the database definition utility (pddef) with the following command:
pddef
-
Execute the following SQL statement:
GRANT CONNECT TO <user name># IDENTIFIED BY <password>; GRANT SCHEMA TO <user name>#;
Note#
The user for whom the permissions are specified is the connected user that the messaging infrastructure uses. The value is the same as the PDUSER environment variable that is registered in the HiRDB client environment variable group.
For details on the PDUSER environment variable, see "Table 3-5 Environment variables set up in the environment variable group".
-
To terminate the database definition utility (pddef) in Windows, press the [Ctrl] key + [Z] key, and then press the [Enter] key.
To terminate the database definition utility (pddef) in UNIX, press the [Ctrl] key + [D] key, and then press the [Enter] key.
-
- Defining a schema
-
Define the schema to store the management information on HiRDB.
- How to define a schema
-
Use the database definition utility (pddef) and HiRDB SQL Executer to define a schema. For details on how to define a schema, see "HiRDB SQL Reference". For details on how to use the database definition utility, see "HiRDB Command Reference".
Procedure to define a schema by using the database definition utility:
-
Set up the following environment variables:
In Windows
SET PDHOST=<Host name or IP address of HiRDB server> SET PDNAMEPORT=<Port number of HiRDB server> SET PDUSER=<User name>#/<password>
Note#
The user name to be specified is the name of the user for whom permissions are set up.
In UNIX (Bourne shell)
export PDHOST=<Host name or IP address of HiRDB server> export PDNAMEPORT=<Port number of HiRDB server> export PDUSER=<User name>#/<password>
Note#
The user name to be specified is the name of the user for whom permissions are set up.
-
Execute the database definition utility (pddef) with the following command:
pddef
-
Execute the following SQL statement:
CREATE SCHEMA;
-
To exit the database definition utility (pddef) in Windows, press the [Ctrl] key + [Z] key, and then press the [Enter] key.
To exit the database definition utility (pddef) in UNIX, press the [Ctrl] key + [D] key, and then press the [Enter] key.
-
- Preparing the RD area
-
To store the management information tables of the messaging infrastructure, create the RD area as and when required. For details on how to create an RD area, see "HiRDB System Operation Guide".
- Setting up pd_max_users (number of concurrent users)
-
In the operand pd_max_users (number of concurrent users) of the HiRDB system common definition, specify the maximum number of DB connections to be used in the execution environment. For details on specifying this value, see "Table 3-4 Number of database connections used in the execution environment".
For details on pd_max_users, see "HiRDB Version 9 System Definition".
(b) Settings on the DB server (In Oracle)
Implement the following operations:
- Setting up the environment
-
For details on the environment settings for Oracle, see the documentation published by the Oracle Corporation.
- Creating the connected users and setting up permissions
-
To save the management information on Oracle, you must create the connected users for Oracle, and set up the permissions.
- Setting up the permissions
-
Set up the following permissions as the system permissions:
-
CREATE ANY INDEX system permission
-
CREATE SESSION system permission
-
CREATE TABLE system permission
-
CREATE VIEW system permission
-
FORCE ANY TRANSACTION system permission
Set up the following permissions as the object permissions:
-
SELECT permission for SYS.DBA_PENDING_TRANSACTIONS
-
EXECUTE permission for SYS.DBMS_SYSTEM
Furthermore, set up the following role:
-
SELECT_CATALOG_ROLE
-
- How to set up the connected users and permissions
-
Use the Oracle Enterprise Manager Console, or sqlplus to create the user and set up permissions. An example of settings when using Oracle Enterprise Manager Console and sqlplus is as follows:
Example of settings when the Oracle Enterprise Manager console is used
-
Connect to the database as a sys user.
-
On the navigator tree, click on [Security], then right click [User], and then select [Create].
-
Open the [General] tab, and enter the name and password.
-
Open the [Role] tab, delete the CONNECT role, and then add SELECT_CATALOG_ROLE.
-
Open the [System] tab and set up the system permissions.
-
Open the [Object] tab, select [SYS], [View], and [DBA_PENDING_TRANSACTIONS], and then set up the SELECT permission.
-
Select [SYS], [Package], and [DBMS_SYSTEM], and then set up the EXECUTE permission.
-
Open the [Limit allocation] tab and set up the allocation limit size for the table area.
-
Click the [Create] button.
Example of settings when sqlplus is used
-
Connect to the database as a sys user.
-
Issue the following SQL statement (The value specified for the QUOTA phrase is an example value).
CREATE USER <Name of the user who is granted permission> PROFILE "DEFAULT" IDENTIFIED BY <password> DEFAULT TABLESPACE "USERS" TEMPORARY TABLESPACE "TEMP" QUOTA 10 M ON "USERS" ACCOUNT UNLOCK; GRANT CREATE ANY INDEX TO <Name of the user who is granted permission>; GRANT CREATE SESSION TO <Name of the user who is granted permission>; GRANT CREATE TABLE TO <Name of the user who is granted permission>; GRANT CREATE VIEW TO <Name of the user who is granted permission>; GRANT FORCE ANY TRANSACTION TO <Name of the user who is granted permission>; GRANT SELECT ON "SYS"."DBA_PENDING_TRANSACTIONS" TO <Name of the user who is granted permission>; GRANT EXECUTE ON "SYS"."DBMS_SYSTEM" TO <Name of the user who is granted permission>; GRANT SELECT_CATALOG_ROLE TO <Name of the user who is granted permission>;
-
(2) Setting up Management Server
Set up Management Server and specify the environment settings. For details, see the description related to the Management Server operating environment in "4.1.15 Information to be set for using Management Server" in "Application Server System Setup and Operation Guide". For details on the settings for using HCSC-Manager, see "2.1.6 Management Server settings for using HCSC-Manager".
Note that Management Server and Administration Agent form the base for operating the HCSC server. Therefore, specify the settings so that Management Server and Administration Agent start automatically when the OS starts.
For details on how to set up the settings, see "mngautorun (Set up/canceling the set up of autostart and autorestart)" in "Application Server Command Reference Guide".
Using the work folder or common folder might increase the memory usage on the Management Server. Use the following formula to estimate the memory requirements, and then, if necessary, increase the amount of available memory.
- Java heap size:
-
↑ Max((200 MB + A), 256 MB) ↑
A: Maximum number of files displayed by the cscfscls and cscfswls command x 5,000 (bytes)
- Metaspace size:
-
128 MB or more
(3) Setting up PRF
To set up PRF, use the Smart Composer functionality or the management portal.
For details on setting up PRF by using the Smart Composer functionality, see "4.8 Setting up the system using the other functions" in "Application Server System Setup and Operation Guide".
For details about setting up PRF by using the management portal, see the manual Application Server Management Portal User Guide.
(4) Setting up a J2EE server
Implement the following operations:
(a) Setting up a J2EE server
To set up a J2EE server, use the Smart Composer functionality or the management portal.
The operation mode of the J2EE server must be set up in V9 compatibility mode. The task required for setup in V9 compatibility mode is as follows:
- Task required if the Smart Composer functionality is used for setup:
-
Add the following parameters in the Easy Setup definition file:
- Parameter to be added to the configuration element for the logical J2EE server:
<param> <param-name>manager.j2ee.compat</param-name> <param-value>V9</param-value> </param>- Parameter to be added to the configuration element for the logical web server:
<param> <param-name>manager.web.send_request_method</param-name> <param-value>redirector</param-value> </param>
- Task required if the server management command (cjsetup) is used for setup:
-
Run the cjsetup command with the -compat V9 option as follows:
cjsetup J2EE-server-name -compat V9
For details about how to use V9 compatibility mode, see 3. How to use V9 compatibility mode in the manual uCosminexus Application Server Compatibility Guide.
For details on setting up a J2EE server by using the Smart Composer functionality, see "4.8 Setting up the system using the other functions" in "Application Server System Setup and Operation Guide".
For details on setting up a J2EE server by using the management portal, see the manual Application Server Management Portal User Guide.
- Important note
-
During setup, make sure that the logical server name and real server name are the same. If the names are different, HCSC server setup might fail.
We recommend that you use a J2EE server name that is not longer than 110 bytes. In an environment in which the local machine has an IPv6 address, if you specify a J2EE server name longer than 110 bytes, an error might occur during generation of process instances. In an environment in which this error can occur, specify ON for the short-processid property in the HCSC server runtime definition.
(b) Setting up the system environment variables for a J2EE server
For details on how to set up the system environment variables for a J2EE server, see the OS documentation. For details on the items to be checked when the system environment variables are set up, see "4.1.13 Check points on setting environment variables of the logical server" in "Application Server System Setup and Operation Guide".
(c) Default settings for the SOAP Communication Infrastructure andJAX-WS engine
When using the SOAP1.1 mode, you must specify the default settings for the SOAP Communication Infrastructure. When using the SOAP 1.1/1.2 combined mode, you must specify the default settings for the JAX-WS engine. The procedure for specifying each of the default settings are as follows:
- Default settings for using the SOAP1.1 mode
-
When using the SOAP1.1 mode, specify the default settings for the SOAP Communication Infrastructure as follows:
-
To use WSDL4J that is distributed based on Common Public License Version 1.0, obtain the "wsdl4j.jar" file and copy the file to the following directory:
In <Service Platform installation directory>\c4web\lib
-
Specify the server definition file (c4websv.cfg).
The following table lists and describes the contents to be specified in the server definition file for the SOAP Communication Infrastructure in a J2EE server operated by the HCSC server. For details on creating the server definition file, see "10.2 Setting up the server definition file" in "Application Server SOAP Application Development Guide".
- Tip
-
The identifier in an HCSC server is a key used for obtaining the information about a running server from the server definition file. The key uses a name wherein the initial "/" is removed from the context root of the SOAP application deployed on the server. Therefore, in HCSC-Messaging, the key name is as follows:
Standard reception identifier: Cluster name
User-defined reception identifier: Reception ID of the user-defined reception
(Example) When the cluster name is "cluster1"
Standard reception identifier: "cluster1"
-
Specify the common definition file (c4webcom.cfg).
The following table lists and describes the contents to be specified in the common definition file for the SOAP Communication Infrastructure in a J2EE server operated by the HCSC server. For details on creating the common definition file, see "10.4 Setting up the common definition file" in "Application Server SOAP Application Development Guide".
-
- Default settings for using the SOAP1.1/1.2 combined mode
-
When using the SOAP1.1/1.2 combined mode, specify the default settings for the JAX-WS engine as follows:
-
Specify the common definition file (cjwconf.properties).
The following table lists and describes the contents to be specified in the common definition file for the JAX-WS engine in a J2EE server operated by the HCSC server. For details on creating the common definition file, see "10.1.2 Settings in the common definition file" in "Application Server Web Service Development Guide".
-
Specify the proxy settings for the servers.
For details on how to specify the proxy settings, see "10.10 Connecting via a proxy server" in "Application Server Web Service Development Guide".
-
(d) Specific settings for setting up an HCSC server
Specify the following in the user property file for J2EE servers (usrconf.properties):
|
Property |
Specified content |
|---|---|
|
ejbserver.rmi.localinvocation.scope |
Specify "app". |
|
ejbserver.jndi.global.enabled |
Specify "false". For "true", "KDJE47722-W" is output in the Component Container message log, but Service Coordinator does not use (cannot use) the Portable Global JNDI name, so application startup continues and there is no problem. |
|
ejbserver.distributedtx.XATransaction.enabled |
Specify "true" or "false". Check whether the HCSC server accesses multiple resources (such as DB server), and specify "true" to disable and "false" to enable the light transaction functionality. |
|
oracle.jdbc.autoCommitSpecCompliant |
To connect to Oracle Database 12c or a later version, specify false. |
Note that not to specify "true" for ejbserver.DynamicStubLoading.Enabled.
Specify the following in the system properties file for server management commands (usrconf.properties):
|
Property |
Specified content |
|---|---|
|
ejbserver.cui.optionalname.enabled |
Specify true. If you specify false, an error occurs when the client sends a request. |
(e) Setting up the container extension library
Specify the following settings for the container extension library. For details on how to set up the container extension library, see "16. Container Extension Library" in "Application Server Common Container Functionality Guide".
-
When the SOAP1.1 mode is used
<Reliable Messaging installation directory>\lib\reliablemessaging-api.jar <Service Platform installation directory>\c4web\lib\hitsaaj.jar
To disable cjjaxws.jar, comment out or delete the cjjaxws.jar line.
-
When the SOAP1.1/1.2 combined mode is used
<Reliable Messaging installation directory>\lib\reliablemessaging-api.jar <Service Platform installation directory>\jaxws\lib\cjjaxws.jar
To disable hitsaaj.jar, comment out or delete the hitsaaj.jar line.
At this time, specify in the format "add.class.path=<jar path>".
You can also specify this definition from the management portal. Specify the class path in the extension parameter on the [J2EE Container Settings] screen of the logical J2EE server specified in "Environment Settings of Logical Servers" in the management portal. The value set up here is applied to the option definition file for J2EE servers (usrconf.cfg).
For details on the option definition file for J2EE servers, see "2.2.2 usrconf.cfg (Option definition file for J2EE servers) " in "Application Server Definition Reference Guide". For details on the settings specified in the "Environment Settings of Logical Servers", see "10. Environment Settings of Logical Servers" in "Application Server Management Portal User Guide".
(5) Setting up a Web server (HTTP server)
There are two methods for setting up a Web server (HTTP server), the method of using the in-process HTTP server included in the J2EE server and the method of using HTTP Server.
(a) Method of using the in-process HTTP server
Implement the following operations:
- Setting up the in-process HTTP server
-
For details about building a system by using an in-process HTTP server, see 6. In-Process HTTP Server in the uCosminexus Application Server Compatibility Guide.
- Setting up the connection timeout value of the in-process HTTP server
-
If the connection pooling functionality is used in the SOAP Communication Infrastructure existing in the service requester, the time required for saving the connection in the service requester must be consistent with the connection timeout value in the HCSC-server operating machine.
To set up the connection timeout value:
-
From the management portal, select [Environment settings of logical servers].
-
From the server view, select [Logical J2EE server], [J2EE server], and then [<J2EE server name>].
-
In the [HTTP server] tab, select the [Communication or Thread Control] tab.
-
The [Communication or Thread Control Settings] screen is displayed.
-
In [Web Client Connection Settings], click on [Persistent Connection] and then [Timeout], and specify a value that is equal to or greater than the value specified in the c4web.common.connection_pool.timeout property of the common definition file for the SOAP Communication Infrastructure (Web Services). For example, if the c4web.common.connection_pool.timeout property is not specified, the default value 1800 (unit: seconds) is used for operations, so set up 3600, which is a multiple of this value, as the timeout value.
Note that the timeout value can be specified in the range of 0 to 3600. Therefore, set up 0 if the value specified in the c4web.common.connection_pool.timeout property is greater than 1800.
-
(b) Method of using HTTP Server
Implement the following operations:
- Setting up HTTP Server
-
For details on how to set up HTTP Server, see "HTTP Server".
- Settings for integrating HTTP Server and J2EE server
-
To integrate HTTP Server with a J2EE server, you must set up the parameters for Web server integration in the Easy Setup definition file. For details on the parameters, see "4.10 Parameters applicable to logical Web servers" in "Application Server Definition Reference Guide".
- Setting up the KeepAliveTimeout value of HTTP Server
-
If the connection pooling functionality is used in the SOAP Communication Infrastructure existing in the service requester, the time required for saving the connection in the service requester must be consistent with the KeepAliveTimeout value in the HCSC-server operating machine.
In KeepAliveTimeout of httpsd.conf, which is an HTTP Server configuration file, specify a value that is equal to or greater than a multiple of the value specified in the c4web.common.connection_pool.timeout property of the common definition file for the SOAP Communication Infrastructure (Web Services). For example, if the c4web.common.connection_pool.timeout property is not specified, the default value 1800 is used for operations, so set up 3600, which is a multiple of this value, in KeepAliveTimeout.
Note that the value can be specified in the range of 0 to 65535. For details, see "7.4.2 Settings related to connection pooling" in "Application Server SOAP Application Development Guide".
(6) Setting up the database client
(a) Settings in the DB client (In HiRDB)
Implement the following operations on the execution environment machine:
- Setting up the environment variables
-
Set up the following environment variables in Windows:
In UNIX, set up the following environment variables as the environment variables to be used for starting the J2EE server operated by the HCSC server and for executing Management Server:
For details on how to set up the environment variables for starting a J2EE server operated by the HCSC server, see "10.8.27 Setting up the environment variables for J2EE servers" in "Application Server Management Portal User Guide".
For details on how to set up the environment variables for executing Management Server, see "8.2.8 mserverenv.cfg (Management Server environment variable definition file)" in "Application Server Definition Reference Guide".
- PDXAMODE
-
Specify 1.
However, when the light transaction functionality is used, you need not set up PDXAMODE.
- PDTXACANUM
-
Specify the maximum number of database connections to be used by Service Platform.
However, when the light transaction functionality is used, you need not set up PDTXACANUM.
The maximum value of DB connections must be estimated according to the execution environment to be used. The following table lists and describes the triggers at which the execution environment uses a DB connection and the number of database connections.
Table 3‒4: Number of database connections used in the execution environment Database connection usage destination
Database connection usage trigger
Number of database connections used
How to obtain the connections to be used
Messaging infrastructure
At startup
1
Obtain the connections from the DB Connector specified for dbcon-nodisplayname in the HCSC server setup definition file.
When command is executed
1
If the HCSC server is inactive:
Obtain the connections by using the JDBC driver when executing the command.
If the HCSC server is active:
Obtain the connections from the DB Connector specified for dbcon-nodisplayname in the HCSC server setup definition file.
Business process infrastructure
When a business process execution request is received
Number of concurrently executed business processes
Obtain the connections from the DB Connector specified for dbcon-xadisplayname in the HCSC server setup definition file.
DB adapter
When a service component execution request is received
Number of concurrently executed service components
Obtain the connections from the DB Connector that is referenced by the database reference name in the SQL operation definition file
Reliable Messaging
See "3.4.1 DBMS settings (When HiRDB is used)" in "Reliable Messaging".
The total number of DB connections used becomes the maximum value.
- PDLANG or LANG
-
When the HCSC server is operated in UNIX, specify the same character code as the HiRDB server in PDLANG or LANG, depending on the HiRDB server character code. For details, see the contents related to PDLANG in "HiRDB UAP Development Guide".
When the HCSC server is operated in Windows, no settings need be specified.
- LC_CTYPE
-
When the HCSC server is operated in UNIX, specify the same character code as the HiRDB server.
When the HCSC server is operated in Windows, no settings need be specified.
- LD_LIBRARY_PATH
-
To operate the HCSC server in Linux(R), add the following path:
path:
-
<HiRDB operational directory>/client/lib
Specify this path for installing HiRDB/Single Server, HiRDB/Parallel Server, or HiRDB Server.
-
In <HiRDB installation directory>/client/lib
Specify this path for installing HiRDB/Run Time, or HiRDB/Developer's Kit.
When the HCSC server is operated in Windows, no settings need be specified.
-
- LIBPATH
-
When the HCSC server is operated in AIX, add the following path:
-
<HiRDB operational directory>/client/lib
Specify this path for installing HiRDB/Single Server, HiRDB/Parallel Server, or HiRDB Server.
-
In <HiRDB installation directory>/client/lib
Specify this path for installing HiRDB/Run Time, or HiRDB/Developer's Kit.
When the HCSC server is operated in Windows, no settings need be specified.
-
- Setting up the environment variable group
-
To register the environment variable group:
- In Windows
-
Select "System Group" with the tool for registering the HiRDB client environment variables, and register the environment variable group. In this case, specify the name of the environment variable group registered here in the DB Connector property definition.
- In UNIX
-
Register the group in the configuration file of the HiRDB client environment variable group. In this case, specify the configuration file path of the environment variable group registered here in the DB Connector property definition.
For details on how to register the environment variable group, see the contents related to the registration of an environment variable group in "HiRDB UAP Development Guide".
For details on DB Connector properties, see "4.2.2 Defining the DB Connector properties" in "Application Server Application Setup Guide".
The following lists and describes the environment variables set up in the environment variable group.
Table 3‒5: Environment variables set up in the environment variable group Name of the environment variable
Contents to be set up
PDHOST
Specify the database host name or IP address.
PDUSER
Specify the database user name and database password.
PDNAMEPORT
Specify the database port number.
PDSWAITTIME
Specify a value greater than the Component Container transaction timeout value#.
PDCWAITTIME
Specify a value greater than the Component Container transaction timeout value#.
PDSWATCHTIME
Specify 0.
- Note#
-
Specify the transaction timeout value for Component Container in the user property file for J2EE servers. For details on the transaction timeout value for Component Container, see "8.6.4 Setting the transaction timeout" in "Application Server System Design Guide".
(b) Settings in the DB client (In Oracle)
Set up Oracle JDBC Thin Driver. For details on the setup for Oracle JDBC Thin Driver, see "3.1.2(7)(b) Setting up Oracle JDBC Thin Driver".
(7) Setting up the JDBC driver
The JDBC driver to be used must be selected after considering the usage conditions.
The following table lists and describes how to select the JDBC driver to be used.
|
Used DBMS |
Used JDBC driver |
JDBC driver package |
|---|---|---|
|
HiRDB |
HiRDB TYPE4 JDBC Driver |
JP.co.Hitachi.soft.HiRDB.JDBC.HiRDBDriver |
|
Oracle |
Oracle JDBC Thin Driver |
oracle.jdbc.OracleDriver |
(a) Setting up HiRDB Type4 JDBC Driver
For details on setting up HiRDB Type4 JDBC Driver, see the contents related to HiRDB Type4 JDBC Driver in "HiRDB UAP Development Guide".
Note that you must specify the following settings in order to use the HCSC server:
-
Specify the JAR file for HiRDB Type4 JDBC Driver (pdjdbc2.jar) as the class path in <Service Platforminstallation directory>/manager/config/mserver.cfg file. At this time, specify the file in the "web.add.class.path=<Path of pdjdbc2.jar>" format.
- Example 1 (For HiRDB/Run Time)
-
web.add.class.path=<HiRDB/Run Time installation directory>/client/lib/pdjdbc2.jar
- Example 2 (For HiRDB/Single Server)
-
web.add.class.path=<HiRDB/Single Server installation directory>#/client/lib/pdjdbc2.jar
Note#
<HiRDB installation directory> is the directory named hirdb_s.
-
Specify the JAR file for HiRDB Type4 JDBC Driver (pdjdbc2.jar) as the class path in the option definition file for J2EE servers (usrconf.cfg). At this time, specify the file in the "add.class.path=<Path of pdjdbc2.jar>" format.
- Example 1 (For HiRDB/Run Time)
-
add.class.path=<HiRDB/Run Time installation directory>/client/lib/pdjdbc2.jar
- Example 2 (For HiRDB/Single Server)
-
add.class.path=<HiRDB/Single Server installation directory>#/client/lib/pdjdbc2.jar
Note#
<HiRDB installation directory> is the directory named hirdb_s.
You can also specify this definition from the management portal. Specify the class path in the extension parameter on the [J2EE Container Settings] screen of the logical J2EE server specified in "Environment Settings of Logical Servers" in the management portal. The value set up here is applied to the option definition file for J2EE servers (usrconf.cfg).
For details on the option definition file for J2EE servers, see "2.2.2 usrconf.cfg (Option definition file for J2EE servers)" in "Application Server Definition Reference Guide". For details on the settings specified in the "Environment Settings of Logical Servers", see "10. Environment Settings of Logical Servers" in "Application Server Management Portal User Guide".
-
Specify the JAR file for HiRDB Type4 JDBC Driver (pdjdbc2.jar) as the class path in HCSC_ADDCLASSPATH of the HCSC-Messaging command definition file.
For details on the HCSC-Messaging command definition file, see "6.5.4 HCSC-Messaging command definition file" in "Service Platform Reference Guide".
(b) Setting up Oracle JDBC Thin Driver
For details on setting up Oracle JDBC Thin Driver, see "4.1.7 Setting the database connection environment (setting Oracle)" in "Application Server System Setup and Operation Guide" or the manual for the database being used.
You must specify the following settings in order to use the HCSC server. Note that the type of Oracle JDBC Thin Driver differs depending on the Oracle version in use; therefore, take care when you specify the class path of the JAR file for Oracle JDBC Thin Driver.
-
Specify the JAR file for Oracle JDBC Thin Driver as the class path in <Service Platforminstallation directory>/manager/config/mserver.cfg file. At this time, specify the file in the "web.add.class.path=<Path of Oracle JDBC Thin Driver>" format.
- Example (For Oracle 12c)
-
web.add.class.path=<Oracle Client installation directory>/jdbc/lib/ojdbc7.jar
-
Specify the JAR file for Oracle JDBC Thin Driver as the class path in the option definition file for J2EE servers (usrconf.cfg). At this time, specify the file in the "add.class.path=<Path of Oracle JDBC Thin Driver>" format.
- Example (For Oracle 12c)
-
add.class.path=<Oracle Client installation directory>/jdbc/lib/ojdbc7.jar
You can also specify this definition from the management portal. Specify the class path in the extension parameter on the [J2EE Container Settings] screen of the logical J2EE server specified in "Environment Settings of Logical Servers" in the management portal. The value set up here is applied to the option definition file for J2EE servers (usrconf.cfg).
For details on the option definition file for J2EE servers, see "2.2.2 usrconf.cfg (Option definition file for J2EE servers)" in "Application Server Definition Reference Guide". For details on the settings specified in the "Environment Settings of Logical Servers", see "10. Environment Settings of Logical Servers" in "Application Server Management Portal User Guide".
-
Specify the JAR file for Oracle JDBC Thin Driver as the class path in HCSC_ADDCLASSPATH of the HCSC-Messaging command definition file.
For details on the HCSC-Messaging command definition file, see "6.5.4 HCSC-Messaging command definition file" in "Service Platform Reference Guide".
(8) Setting up DB Connector(When Reliable Messaging is used)
HCSC server uses DB Connector to connect to the database. There are cases in which database access is managed or not managed in the transaction depending on the processing timing and table types; therefore, you must prepare two DB Connectors, DB Connector whose transaction support type is XATransaction or LocalTransaction, and DB Connector whose transaction support type is NoTransaction.
Note that for DB Connector whose transaction support type is XATransaction or LocalTransaction, use DB Connector that can be integrated with Reliable Messaging in order to improve the processing performance.
Specify the display name for each DB Connector in "dbcon-xadisplayname" and "dbcon-nodisplayname" of the HCSC server setup definition file. For details on the HCSC server setup definition file, see "6.4.3 HCSC server setup definition file" in "Service Platform Reference Guide".
(a) Importing DB Connector
You must select the DB Connector to be imported after considering the usage conditions. The following table lists and describes how to select the RAR file to be imported.
|
Properties in the HCSC server setup definition file |
Used database |
Usage of light transaction functionality |
|
|---|---|---|---|
|
Used |
Not used |
||
|
dbcon-xadisplayname |
HiRDB |
DBConnector_HiRDB_ Type4_CP_Cosminexus_RM.rar |
DBConnector_HiRDB_Type4_ XA_Cosminexus_RM.rar |
|
Oracle |
DBConnector_Oracle_CP_ Cosminexus_RM.rar |
DBConnector_Oracle_XA_ Cosminexus_RM.rar |
|
|
dbcon-nodisplayname |
HiRDB |
DBConnector_HiRDB_Type4_CP.rar |
|
|
Oracle |
DBConnector_Oracle_CP.rar |
||
For details on how to import DB Connector, see "4.2 Settings for connecting to the database" in "Application Server Application Setup Guide". For the property definitions, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide".
For details on the light transaction functionality, see "3.14.5 Light transaction" in "Application Server Common Container Functionality Guide". For details on how to set up the functionality, see "10.8.6 Setting up a transaction" in "Application Server Management Portal User Guide".
When a DB adapter is used, import DB Connector that is used by the DB adapter. The following table lists and describes how to select the RAR file to be imported.
|
Used JDBC driver |
Used database |
Usage of light transaction functionality |
|
|---|---|---|---|
|
Used |
Not used |
||
|
HiRDB TYPE4 JDBC Driver |
HiRDB |
DBConnector_HiRDB_Type4_CP.rar |
DBConnector_HiRDB_Type4_XA.rar |
|
Oracle JDBC Thin Driver |
Oracle |
DBConnector_Oracle_CP.rar |
DBConnector_Oracle_XA.rar |
(b) Defining properties
After you import DB Connector, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide" to define the properties. However, you must specify the contents listed in the following table in the properties.
- Important note
-
Make sure that the same transaction support type (the value specified in the <transaction-support> tag) is specified for the DB Connector that can link with Reliable Messaging and for the DB Connector that is used by the DB adapter.
The value specified in the <transaction-support> tag differs as follows depending on whether a light transaction or global transaction is applied:
-
When a light transaction is applied to the J2EE server
LocalTransaction
-
When a global transaction is applied to the J2EE server
XATransaction
-
|
Settings |
Set value |
|---|---|
|
<display-name> tag |
DB Connector display name |
|
databaseName property specified in the <config-property> tag |
Database name#1 |
|
bufSize property specified in the <config-property> tag |
Value greater than the maximum message length used in the system#2 |
|
<transaction-support> tag |
XATransaction#3 |
|
LocalTransaction#4 |
|
|
MaxPoolSize property specified in the <property> tag in the <connector-runtime> tag |
Value greater than the maximum number of concurrently executable business processes#5 |
- Note#1
-
The set value differs depending on DB Connector to be used. For details on the set values, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide". You must also set up the information required for connecting to the database together with this value.
- Note#2
-
The DB Connectors to be used are as follows. Specify these DB Connectors when REAL is specified in the LONGVARBINARY_Access property.
DBConnector_DABJ_XA_Cosminexus_RM.rar
DBConnector_DABJ_CP_Cosminexus_RM.rar
- Note#3
-
When the light transaction functionality is not used, specify this value for the following DB Connectors:
DBConnector_DABJ_XA_Cosminexus_RM.rar
DBConnector_Oracle_XA_Cosminexus_RM.rar
- Note#4
-
When the light transaction functionality is used, specify this value for the following DB Connectors:
DBConnector_DABJ_CP_Cosminexus_RM.rar
DBConnector_Oracle_CP_Cosminexus_RM.rar
- Note#5
-
If the DB Connector that is set for dbcon-xadisplayname is to be used for other functions, this value must include the number of concurrently executable functions.
|
Settings |
Set value |
|---|---|
|
<display-name> tag |
DB Connector display name |
|
maxBinarySize property specified in the <config-property> tag |
Value greater than the maximum message length used in the system#1 |
|
<transaction-support> tag |
XATransaction#2 |
|
LocalTransaction#3 |
|
|
MaxPoolSize property specified in the <property> tag in the <connector-runtime> tag |
Value greater than the maximum number of concurrently executable business processes#4 |
- Note#1
-
Specify this value when REAL is specified in the LONGVARBINARY_Access property. Make sure you specify a value other than 0.
- Note#2
-
When the light transaction functionality is not used, specify this value for the following DB Connectors:
DBConnector_HiRDB_Type4_XA_Cosminexus_RM.rar
- Note#3
-
When the light transaction functionality is used, specify this value for the following DB Connectors:
DBConnector_HiRDB_Type4_CP_Cosminexus_RM.rar
- Note#4
-
If the DB Connector that is set for dbcon-xadisplayname is to be used for other functions, this value must include the number of concurrently executable functions.
- Note
-
Set up the information required for connecting to the database. For details on the set values, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide".
|
Settings |
Set value |
|---|---|
|
<display-name> tag |
DB Connector display name |
|
databaseName property specified in the <config-property> tag |
Database name#1 |
|
bufSize property specified in the <config-property> tag |
Value greater than the maximum message length used in the system#2 |
|
<transaction-support> tag |
NoTransaction#3 |
|
MaxPoolSize property specified in the <property> tag in the <connector-runtime> tag |
1 or a greater value#4 |
- Note#1
-
The set value differs depending on database to be used. For details on the set values, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide". You must also set up the information required for connecting to the database together with this value.
- Note#2
-
The DB Connectors to be used are as follows. Specify these DB Connectors when REAL is specified in the LONGVARBINARY_Access property.
DBConnector_DABJ_CP.rar
- Note#3
-
Specify this value when the following DB Connectors are used:
DBConnector_DABJ_CP.rar
DBConnector_Oracle_CP.rar
- Note#4
-
If the DB Connector that is set for dbcon-nodisplayname is to be used for other functions, this value must include the number of concurrently executable functions.
|
Settings |
Set value |
|---|---|
|
<display-name> tag |
DB Connector display name |
|
maxBinarySize property specified in the <config-property> tag |
Value greater than the maximum message length used in the system#1 |
|
<transaction-support> tag |
NoTransaction#2 |
|
MaxPoolSize property specified in the <property> tag in the <connector-runtime> tag |
1 or a greater value#3 |
- Note#1
-
Specify this value when REAL is specified in the LONGVARBINARY_Access property. Make sure you specify a value other than 0.
- Note#2
-
Specify this value when the following DB Connectors are used:
DBConnector_HiRDB_Type4_CP.rar
- Note#3
-
If the DB Connector that is set for dbcon-nodisplayname is to be used for other functions, this value must include the number of concurrently executable functions.
- Note
-
Set up the information required for connecting to the database. For details on the set values, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide".
|
Settings |
Set value |
|---|---|
|
<display-name> tag |
DB Connector display name#1 |
|
databaseName property specified in the <config-property> tag |
Database name#2 |
|
<transaction-support> tag |
XATransaction |
|
LocalTransaction |
|
|
MaxPoolSize property specified in the <property> tag in the <connector-runtime> tag |
Value greater than the maximum number of concurrently executable instances of the DB adapter#3 |
- Note#1
-
You can also set up this value in the <linked-to> tag of the HITACHI Application Integrated Property File of the DB adapter. For details on the HITACHI Application Integrated Property File, see "3.3.5 Defining a DB adapter" in "Service Platform Reception and Adapter Definition Guide".
- Note#2
-
The set value differs depending on DB Connector to be used. For details on the set values, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide".
- Note#3
-
If the DB Connector that is specified for the DB adapter is to be used for other functions, this value must include the number of concurrently executable functions.
(9) Setting up Reliable Messaging
Set up Reliable Messaging. For details on the operations, see "3. System Setup" in "Reliable Messaging". To customize the properties among the setup operations, use the following methods:
(a) Setting up the configuration properties for Reliable Messaging
The following table lists and describes the configuration properties to be set up and the values to be specified. In the authentication information (User and Password), specify the user name and password of the connected user to be used by Reliable Messaging for accessing HiRDB or Oracle.
|
Property name |
Specified content |
Set value |
|---|---|---|
|
RMSystemName |
System name |
Specify a system name that is unique in the entire system to be integrated. |
|
RMLinkedDBConnectorName |
Display Name of DB Connector to be integrated |
Specify the display Name of DB Connector to be integrated. |
|
RMSHConnectFlag |
Existence of a shared queue for reception to be used when applications are integrated between multiple systems by using a shared queue |
When you use standard asynchronous reception (MDB (DB queue)), specify "true". When you do not use standard asynchronous reception (MDB (DB queue)), or when you are using a database in which a DB queue cannot be used, specify "false". |
|
RMTRConnectFlag |
Usage of transmit between queues |
Specify "true". |
|
RMMaxDeliveryNum |
Maximum delivery count |
Set up a value other than 0 (1 to 512) (recommended value: 10) |
|
RMDeadMessageQueueName |
Name of dead message queue |
Set up an identifier from 1 to 20 characters. Make sure you use the dead message queue. Use the dead message queue as the local queue. |
(b) Points to be considered
-
Do not change the value of the configuration property "RMWaitRestoration". Operate the property with the default value "true" for Reliable Messaging.
-
The dead message queue specified in the dead message queue name "RMDeadMessageQueueName" is a special queue to which the messages, where the delivery count has reached the maximum value and the service components are not invoked, are moved when you use asynchronous standard receptions (MDB (WS-R) and MDB (DB queue)) and asynchronous service adapters (MDB (WS-R) adapter and MDB (DB queue) adapter).
If the dead message queue name is not specified and the dead message queue is not created, note that the processing for invoking the service components is re-executed infinitely.
Create the queue to be used as the dead message queue after Reliable Messaging is set up and starts for the first time.
-
When you use Oracle as the database, you cannot use asynchronous standard reception (MDB (DB queue)) and asynchronous MDB (DB queue) adapter.
(10) Setting up the TP1 inbound adapter
When using TP1/ RPC reception, set up the TP1 inbound adapter. If the J2EE server has been set up, you can set up the adapter at any time.
For details on the set up of TP1 inbound adapter, see "4.12.2 Setting up a resource adapter" in "Application Server Common Container Functionality Guide". Note that to set up the TP1 inbound adapter, you must set up the HITACHI Connector property definition file.
(11) Setting up Service Coordinator-Manager
As and when required, see "2.4 Settings Related to the Operating Environment" to set up Service Coordinator-Manager.
(12) Setting up DB Connector (When Reliable Messaging is not used)
HCSC server uses DB Connector to connect to the database. There are cases in which database access is managed or not managed in the transaction depending on the processing timing and table types; therefore, you must prepare two DB Connectors, DB Connector whose transaction support type is XATransaction or LocalTransaction, and DB Connector whose transaction support type is NoTransaction.
Note that for DB Connector whose transaction support type is XATransaction or LocalTransaction; use DB Connector that can be integrated with Reliable Messaging in order to improve the processing performance.
Specify the display name for each DB Connector in "dbcon-xadisplayname" and "dbcon-nodisplayname" of the HCSC server setup definition file. For details on the HCSC server setup definition file, see "6.4.3 HCSC server setup definition file" in "Service Platform Reference Guide".
(a) Importing DB Connector
You must select the DB Connector to be imported after considering the usage conditions. The following table lists and describes how to select the RAR file to be imported.
|
Properties in the HCSC server setup definition file |
Used database |
RAR files to be imported |
|---|---|---|
|
dbcon-xadisplayname |
HiRDB |
|
|
Oracle |
|
|
|
dbcon-nodisplayname |
HiRDB |
DBConnector_HiRDB_Type4_CP.rar |
|
Oracle |
DBConnector_Oracle_CP.rar |
When a DB adapter is used, import DB Connector that is used by the DB adapter. The following table lists and describes how to select the RAR file to be imported.
For details on how to import DB Connector, see "4.2 Settings for connecting to the database" in "Application Server Application Setup Guide". For the property definitions, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide".
For details on the light transaction functionality, see "3.14.5 Light transaction" in "Application Server Common Container Functionality Guide". For details on how to set up the functionality, see "10.8.6 Setting up a transaction" in "Application Server Management Portal User Guide".
(b) Defining properties
After you import DB Connector, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide" to define the properties. However, you must specify the contents listed in the following table in the properties.
|
Settings |
Set value |
|
|---|---|---|
|
<display-name> tag |
DB Connector display name |
|
|
databaseName property specified in the <config-property> tag |
Database name#1 |
|
|
bufSize property specified in the <config-property> tag |
Value greater than the maximum message length used in the system#2 |
|
|
<transaction-support> tag |
When the light transaction functionality is not used |
XATransaction#3 |
|
When the light transaction functionality is used |
LocalTransaction#4 |
|
|
MaxPoolSize property specified in the <property> tag in the <connector-runtime> tag |
Value greater than the maximum number of concurrently executable business processes#5 |
|
- Note#1
-
The set value differs depending on DB Connector to be used. For details on the set values, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide". You must also set up the information required for connecting to the database together with this value.
- Note#2
-
Use the following DB Connectors. Specify these DB Connectors when REAL is specified in the LONGVARBINARY_Access property.
DBConnector_DABJ_XA.rar
DBConnector_DABJ_CP.rar
- Note#3
-
Specify this value for the following DB Connectors:
DBConnector_DABJ_XA.rar
DBConnector_Oracle_XA.rar
- Note#4
-
Specify this value for the following DB Connectors:
DBConnector_DABJ_CP.rar
DBConnector_Oracle_CP.rar
- Note#5
-
If the DB Connector that is set for dbcon-xadisplayname is to be used for other functions, this value must include the number of concurrently executable functions.
|
Settings |
Set value |
|
|---|---|---|
|
<display-name> tag |
DB Connector display name |
|
|
maxBinarySize property specified in the <config-property> tag |
Value greater than the maximum message length used in the system#1 |
|
|
<transaction-support> tag |
When the light transaction functionality is not used |
XATransaction#2 |
|
When the light transaction functionality is used |
LocalTransaction#3 |
|
|
MaxPoolSize property specified in the <property> tag in the <connector-runtime> tag |
Value greater than the maximum number of concurrently executable business processes#4 |
|
- Note#1
-
Specify this value when REAL is specified in the LONGVARBINARY_Access property. Make sure you specify a value other than 0.
- Note#2
-
Specify this value for the following DB Connector:
DBConnector_HiRDB_Type4_XA.rar
- Note#3
-
Specify this value for the following DB Connector:
DBConnector_HiRDB_Type4_CP.rar
- Note#4
-
If the DB Connector that is set for dbcon-xadisplayname is to be used for other functions, this value must include the number of concurrently executable functions.
- Note
-
Set up the information required for connecting to the database. For details on the set values, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide".
|
Settings |
Set value |
|---|---|
|
<display-name> tag |
DB Connector display name |
|
databaseName property specified in the <config-property> tag |
Database name#1 |
|
bufSize property specified in the <config-property> tag |
Value greater than the maximum message length used in the system#2 |
|
<transaction-support> tag |
NoTransaction#3 |
|
MaxPoolSize property specified in the <property> tag in the <connector-runtime> tag |
1 or a greater value#4 |
- Note#1
-
The set value differs depending on database to be used. For details on the set values, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide". You must also set up the information required for connecting to the database together with this value.
- Note#2
-
Use the following DB Connectors. Specify these DB Connectors when REAL is specified in the LONGVARBINARY_Access property.
DBConnector_DABJ_CP.rar
- Note#3
-
Specify this value when the following DB Connectors are used:
DBConnector_DABJ_CP.rar
DBConnector_Oracle_CP.rar
- Note#4
-
If the DB Connector that is set for dbcon-nodisplayname is to be used for other functions, this value must include the number of concurrently executable functions.
|
Settings |
Set value |
|---|---|
|
<display-name> tag |
DB Connector display name |
|
maxBinarySize property specified in the <config-property> tag |
Value greater than the maximum message length used in the system#1 |
|
<transaction-support> tag |
NoTransaction#2 |
|
MaxPoolSize property specified in the <property> tag in the <connector-runtime> tag |
1 or a greater value#3 |
- Note#1
-
Specify this value when REAL is specified in the LONGVARBINARY_Access property. Make sure you specify a value other than 0.
- Note#2
-
Specify this value when the following DB Connectors are used:
DBConnector_HiRDB_Type4_CP.rar
- Note#3
-
If the DB Connector that is set for dbcon-nodisplayname is to be used for other functions, this value must include the number of concurrently executable functions.
- Note
-
Set up the information required for connecting to the database. For details on the set values, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide".
|
Settings |
Set value |
|---|---|
|
<display-name> tag |
DB Connector display name#1 |
|
databaseName property specified in the <config-property> tag |
Database name#2 |
|
<transaction-support> tag |
XATransaction |
|
LocalTransaction |
|
|
MaxPoolSize property specified in the <property> tag in the <connector-runtime> tag |
Value greater than the maximum number of concurrently executable instances of the DB adapter#3 |
- Note#1
-
You can also set up this value in the <linked-to> tag of the HITACHI Application Integrated Property File of the DB adapter. For details on the HITACHI Application Integrated Property File, see "3.3.5 Defining a DB adapter" in "Service Platform Reception and Adapter Definition Guide".
- Note#2
-
The set value differs depending on DB Connector to be used. For details on the set values, see "4.1 HITACHI Connector Property file" in "Application Server Application and Resource Definition Reference Guide".
- Note#3
-
If the DB Connector that is specified for the DB adapter is to be used for other functions, this value must include the number of concurrently executable functions.
