3.1.1 Flow of systemsetup

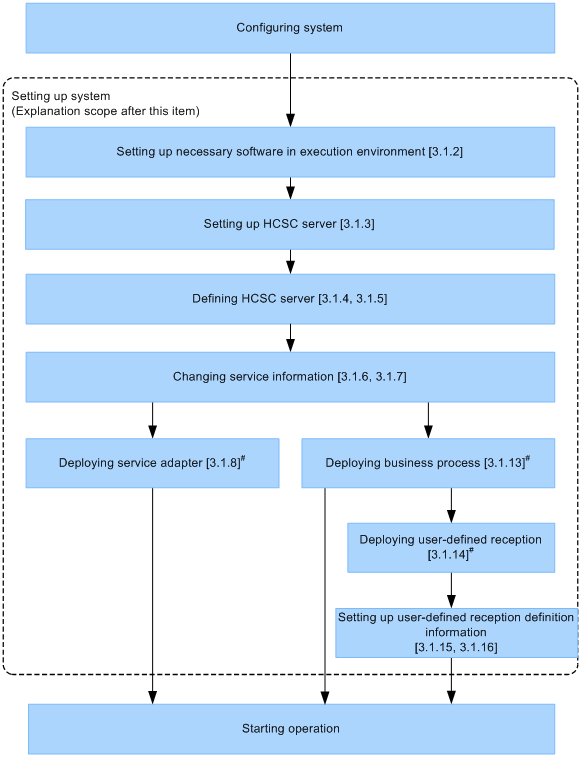

The following figure shows the flow of system setup. Note that to set up the system by using the Easy Setup functionality for the production environment, see "3.5 Easy Setup of production environment".
|
|
![[Figure]](GRAPHICS/ZC030100.GIF)
- Note#
-
You can also execute these operations in a batch. In this case, the packaging and deployment definition of the HCSC components is executed before the HCSC components are deployed, and the components are started after the HCSC components are deployed.
However, batch execution is performed during system development or from unit testing to integration testing. For details, see "7.5 Batch execution of the process for deploying HCSC components on the HCSC Server and then starting " in "Service Platform Basic Development Guide".
The following paragraphs describe the processes in the figure:
- Important note
-
-
Before deploying the service adapters, business processes, and user-defined receptions, make sure you import and refresh the repository.
-
Depending on the flow of processing during operations and the measures to be taken when errors occur, you must specify some settings before the operations start. For details, see "2.7.1 Invoking service components of an HCSC server from TP1 using standard synchronous reception" in Service Platform Overview, and "7. Troubleshooting" in this manual.
-
In UNIX and when the Component Container administrator is changed, unify the Service Coordinator administrator. For details, see Appendix A. Changing the Service Coordinator administrator (in UNIX).
-
