10.4.5 Checking the status of an ID group job

Among the jobs whose destination is set to an ID group, execution status for the following types of jobs can be checked in the Job Status window.

Install package
Send package, allow client users to choose

The following sections describe how to check the status of a job whose destination is set to an ID group.

Organization of this subsection

(1) Displaying the job status for each ID-management relay computer
(2) Displaying execution status for each managed computer
(3) Important notes on checking the status of an ID group job

(1) Displaying the job status for each ID-management relay computer

To check the execution status for each relay system that is managing ID group jobs:

In the Job Status window, clear the View ID Job Agents check box in the View menu.

Double click an ID group job.

The ID group is displayed under the job.

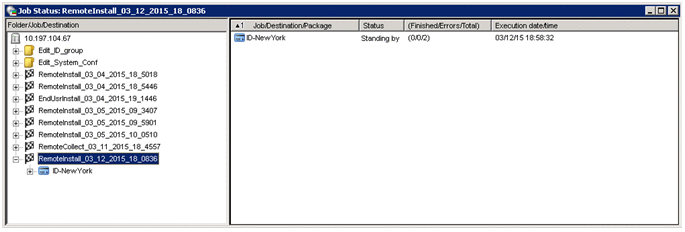

Figure 10‒30: ID group is displayed under a job in the Job Status window

Double click the ID group.

Under the ID group, the relay system managing the ID group appears. A package name is displayed in the Job/Destination/Package pane on the right.

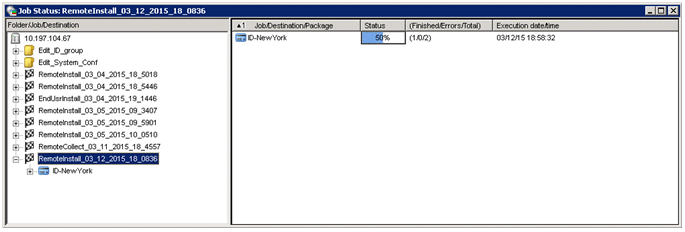

Figure 10‒31: The relay system is displayed under an ID group in the Job Status window

(a) Types of execution status for ID group jobs

The table below shows the types of execution status for ID group jobs that are displayed in the Job Status window when the View ID Job Agents check box is cleared.

For the types of execution status for ID group jobs that are displayed in the Job Status window when the View ID Job Agents check box is selected, see 10.4.3(3)(a) Types of job execution status.

Table 10‒5: Types of execution status for ID group jobs
Job execution status	Status	Color representing the status	Description
Waiting for execution	0%	White	The job was created, but waiting to be transferred from the managing server.
Registering	Registering	White	The job is being transferred to an ID-management relay computer. The job is being transferred from a manager to an ID-management relay computer.
Standing by	Standing by	White	The job is being transferred from an ID-management relay computer to a managed computer, or the job is running.
Finished	Finished	Green	The package was deleted by a relay system.
Waiting for execution	0%	Red	An error occurred during the execution.

(b) Transition of the status of an ID group job

The following figure shows the transition of the execution status of an ID group job when the View ID Job Agents check box is cleared.

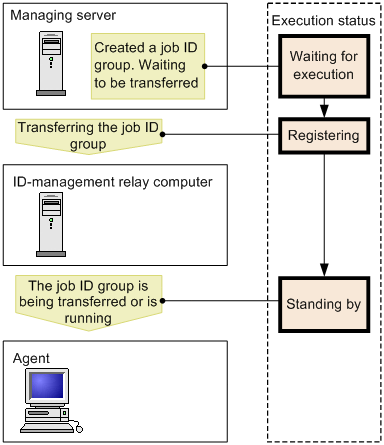

Figure 10‒32: Transition of the execution status of an ID group job

To Page Top

(2) Displaying execution status for each managed computer

This section describes how to check execution status on the managed computers for an ID group job.

Select View, and enable the View ID Job Agents in the Job Status window.

Double click an ID group job.

The ID group is displayed under the job.

Figure 10‒33: ID group is displayed under a job in the Job Status window

Double click the ID group.

The managed computers that belong to the ID group are displayed under the ID group.

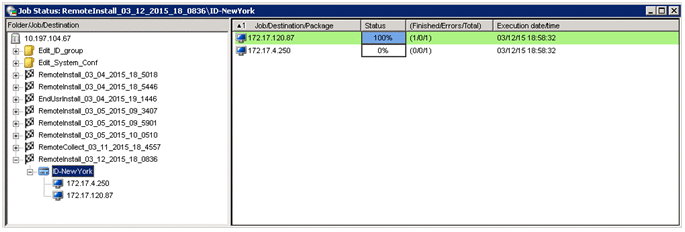

Figure 10‒34: Managed computers are displayed under the ID group in the Job Status window

Click a managed computer.

The job status on the selected managed computer is displayed in the right pane.

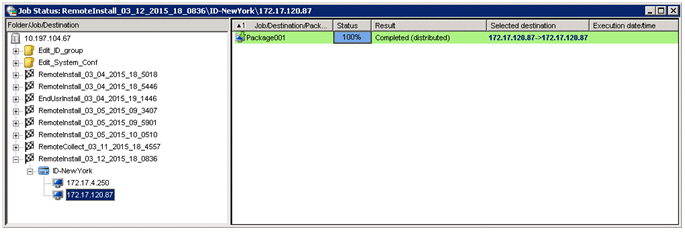

Figure 10‒35: The job status on the selected managed computer is displayed in the Job Status window

Double clicking a package opens a Detailed Information dialog box.

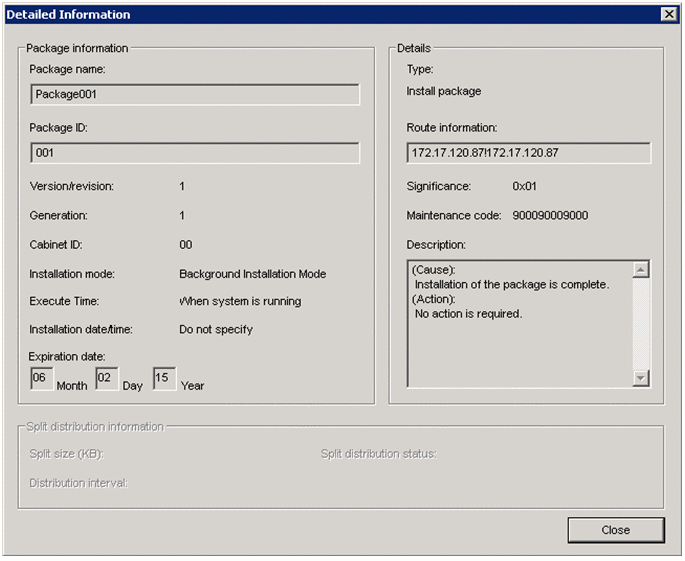

Figure 10‒36: Detailed Information dialog box

To Page Top

(3) Important notes on checking the status of an ID group job

Note the following when you check the status of an ID group job:

The managing server cannot display the status of the a job on which a communication error has occurred between the relay system managing the ID group and a managed computer.
