2.4.3 Linking with Active Directory

(1) Searching for devices in Active Directory

You can search for computers managed in Active Directory domains and root OUs and register them as management targets. We recommend that you use this method if your organization already uses Active Directory to manage computers.

The following figure shows an overview of searching Active Directory for devices.

Options for device discovery

You can use the following methods to search for devices registered in Active Directory.

Immediate

JP1/IT Desktop Management 2 connects to Active Directory and searches for devices, acquiring device information for the devices it discovers. Use this option when you first install JP1/IT Desktop Management 2 or when you want changes to Active Directory information to be immediately reflected in the JP1/IT Desktop Management 2 database. You can begin a search from the Active Directory link under Discovery Condition Configuration in the Device Discovery view in the Setting module.

Tip

If you cancel the search before it finishes, any computer information and group information that has been acquired to that point is incorporated into the database.

Scheduled

Regular searches take place according to the discovery settings specified for Active Directory. During this process, device information is acquired for discovered devices. The discovery schedule is determined by the values in Start At, Repeat Interval (daily, weekly, or monthly), and Repeat in the Settings module. By default, discovery takes place daily at 23:00.

Tip

If the search is interrupted or cannot take place at the scheduled time because the service is stopped, the system is shut down, or for some other reason, it will take place at the next scheduled start time.

If the search is interrupted, the process begins again for all computers the next time the service starts. Even if several search attempts have failed, this process takes place only once.

You can check the status of the search in the Last Discovery Log window accessed from the Discovery view in the Settings module. To notify the administrator by email when the process is finished, set a Notice of Discovery Completion in the Discovery view.

Removing managed devices

When you delete a computer from Active Directory, the corresponding information is not deleted from JP1/IT Desktop Management 2. To remove a computer that was discovered from Active Directory, remove it manually from the JP1/IT Desktop Management 2 database.

Discovery conflicts

The discovery of devices registered in Active Directory can sometimes conflict with other forms of discovery.

Conflicts with other Active Directory searches

If Active Directory is already being searched when a search is scheduled to start, the latter process is canceled until the next scheduled start time.

Conflicts with network searches

If a network search is already in progress, the Active Directory search takes place as normal. If both processes discover the same device, the results of network discovery using administrative shares and SNMP take priority over the results of Active Directory discovery, and the results of Active Directory discovery take priority over the results of network discovery using ARP and ICMP.

Related Topics:

• (4) Importing departmental group configurations from Active Directory

To Page Top

(2) Setting connection destinations for Active Directory searches

Before you can use Active Directory to search for and discover devices, you need to specify the connection-target Active Directory server and the root OU of the domains you want to search.

You can specify multiple connection targets, each consisting of an Active Directory address and a root OU. Set a number of connection targets equivalent to the number of Active Directory servers and root OUs where you want to discover devices.

The following are examples of setting connection targets for Active Directory searches.

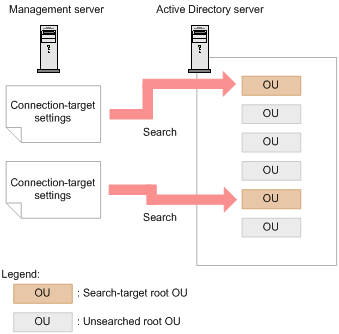

When connecting to one Active Directory server and discovering devices in multiple root OUs

Although the management server only connects to one Active Directory server, it searches for devices in multiple root OUs. This means that you need to create a number of connection destination settings equivalent to the number of root OUs.

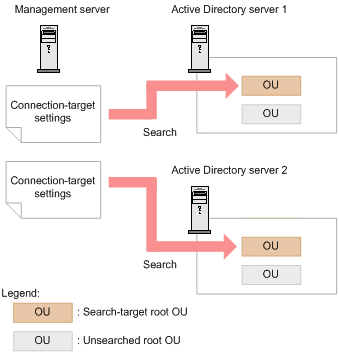

When connecting to several Active Directory servers

When searching for devices on several Active Directory servers, you need to create a connection destination setting for each Active Directory server.

Important

When you perform the search for Active Directory, you must grant a user ID (specified in the Active Directory window) the Read permission for all objects that belongs to the specified root OU and for all objects that are referenced. If the user ID is not granted the Read permission, device information and group information may not be correctly obtained when you perform the search for Active Directory.

To Page Top

(3) Device information that can be acquired from Active Directory

The following table lists the device information you can obtain from an Active Directory server.

System information

Device information item		Source		Contents
		Object name (LDAP)	Attribute name (LDAP)
Device type		computer	operatingSystem	PC is set for client-type OSs. For server-type OSs, server is set.
Computer information	Computer name	computer	sAMAccountName	Acquires the computer name of the computer.
	Host name	computer	dNSHostName	Acquires the DNS name of the computer if one is assigned.
		computer	sAMAccountName	Acquires the computer name of the computer if no DNS name is assigned.
OS information	OS	computer	operatingSystem	Acquires the name of the OS.
	OS service pack or version	computer	operatingSystemServicePack	Acquires information about the OS service pack or version.
Network information	IP address	--	--	Uses DNS to resolve an IP address from the host name.
	MAC address	--	--	Uses ARP to acquire a MAC address from the IP address.

Legend: --: Although this device information can be acquired from Active Directory, it does not appear on the source Active Directory server.

You can also acquire the information in the following table:

Device information item	Description
Registered Date/Time	For a newly discovered device, the date and time when the device was discovered is acquired. When updating device information, the existing date and time is left unchanged.
Last Modified Date/Time	If the device has been modified, the date and time when the device was modified is acquired. No date and time is acquired if the device information has not been modified.
Mode	If the Auto-Manage Discovered Nodes option is selected and the device has a product license, Managed is set. If the Auto-Manage Discovered Nodes option is selected and the device does not have a product license, Discovered is set. If the Auto-Manage Discovered Nodes option is not selected, Discovered is set.
Management Type	Agentless Management (Authentication Successful) is set.
Connection settings	Unknown is set.
Device Status	Unknown is set.
Management Status	Agent not Installed is set.
Last Alive Confirmation Date/Time	The date and time when the server last connected to the Active Directory and found the device.

Common management items

Shared management items	Source		Contents
	Object name (LDAP)	Attribute name (LDAP)
Department	computer	distinguishedName#1	Acquires the department with which the device is associated.
Location	computer	location	Acquires the location of the device.
User Name	User or InetOrgPerson#2	displayname	Acquires the user name of the device.
Account	User or InetOrgPerson#2	userPrincipalName	Acquires the account name of the device.
E-mail	User or InetOrgPerson#2	mail	Acquires the e-mail address of the user of the device.
Phone	User or InetOrgPerson#2	telephoneNumber	Acquires the telephone number of the user of the device.

#1: Organization unit (OU) values in attributes are subjected to conversion before being registered in the common management item. For example, if the attribute value is CN=PC001,OU=2U,OU=Design1G,OU=DesignDivision,DC=domain,DC=local, then DesignDivision/Design1G/2U is registered as the department.

#2: The User or InetOrgPerson object associated with the managedBy attribute of the computer object.

Added management items

You can use the following methods to relate information retrieved from Active Directory to added management items.

Legend: Y: Template provided. N: No template provided.

Item specification

A method that uses supplied templates to specify objects in the Active Directory database.

For example: Name (Computer)

Customized

A process whereby the administrator specifies the object names managed by Active Directory and the LDAP attribute names.

Added management items are acquired as character string data.

The following table shows the objects you can acquire for each entity specified when acquiring information from Active Directory.

Specifiable entity	Associated object	Description
Computer	Computer	Used to manage computer information.
Organizational unit (OU)	Organization Unit (OU)	Contains Computer, User, and other values of Organization Unit. This information is used to record the department and location of a device, and to acquire information about the organizational unit (OU) to which a computer belongs.
User	User	Used to acquire information about the administrator of a computer.
	InetOrgPerson#	A type of user. This object is used to acquire information about the administrator of a computer.

#: In Windows 2000, you must apply the InetOrgPerson Kit to use this object.

The following table lists the information that can be acquired from the Computer object.

Item name	LDAP attribute name	Template provided
Name (Computer)	sAMAccountName	Y
DNS Host Name	dNSHostName	Y
Description	description	Y
Name	operatingSystem	N
Version	operatingSystemVersion	N
Service Pack	operatingSystemServicePack	N
Location	location	Y
Name (User)	managedBy	Y
Office Location	--#	N
Country	--#	N
State	--#	N
City	--#	N
Address	--#	N
Phone	--#	N
FAX	--#	N
Canonical name of object	distinguishedName	N

#: Shows the corresponding attribute value for the User or inetOrgPerson object whose value is the same as Name (User). For details on the LDAP attribute names used to acquire this information, see the tables later in this section that show the information that can be acquired from the User and InetOrgPerson objects.

The following table lists the information that can be acquired from an Organization Unit (OU) object.

Property name	LDAP attribute name	Template provided
Country	co	Y
Zip code	postalCode	N
State	st	N
City	l	N
Address	street	N
Description	description	N
Name	managedBy	Y
Link to group policy object	gPLink	N

The following table lists the information that can be acquired from a User object.

Item name	LDAP attribute name	Template provided
Last Name	sn	Y
First Name	givenName	Y
Initials	initials	Y
Display Name	displayName	Y
Description	description	Y
Office Location	physicalDeliveryOfficeName	Y
Phone	telephoneNumber	Y
E-Mail	mail	Y
Web Page	wWWHomePage	Y
Country	co	Y
Zip code	postalCode	Y
State	st	Y
City	l	Y
P. O. Box	postOfficeBox	Y
Address	streetAddress	Y
Logon name	userPrincipalName	Y
Logon name (Windows 2000 or earlier)	sAMAccountName	N
Log on to	userWorkstations	N
User profile profile path	profilePath	N
User profile logon script	scriptPath	N
Home folder Local path	homeDirectory	N
Home folder Connect	homeDrive	N
Home phone	homePhone	Y
Pager	pager	Y
Mobile	mobile	Y
FAX	facsimileTelephoneNumber	Y
IP Phone	ipPhone	Y
Notes	info	Y
Company	company	Y
Department	department	Y
Job title	title	Y
Manager Name	manager	Y
Report Direct	directReports	Y

The following table lists the information that can be acquired from an InetOrgPerson object.

Item name	LDAP attribute name	Template provided
Last Name	sn	Y
First Name	givenName	Y
Initials	initials	Y
Display Name	displayName	Y
Description	description	Y
Office Location	physicalDeliveryOfficeName	Y
Phone	telephoneNumber	Y
Email	mail	Y
Web Page	wWWHomePage	Y
Country	co	Y
Zip code	postalCode	Y
State	st	Y
City	l	Y
P. O. Box	postOfficeBox	Y
Address	streetAddress	Y
Logon name	userPrincipalName	Y
Logon name (Windows 2000 or earlier)	sAMAccountName	N
Log on to	userWorkstations	N
User profile profile path	profilePath	N
User profile logon script	scriptPath	N
Home folder Local path	homeDirectory	N
Home folder Connect	homeDrive	N
Home Phone	homePhone	Y
Pager	pager	Y
Mobile	mobile	Y
FAX	facsimileTelephoneNumber	Y
IP Phone	ipPhone	Y
Notes	info	Y
Company	company	Y
Department	department	Y
Job Title	title	Y
Manager Name	manager	Y
Report Direct	directReports	Y

Important

Although you can specify attributes that acquire information from items not mentioned in these tables, operation is not guaranteed in these circumstances.

For a detailed description of device information, see the following sections:

• (1) Types of device information you can collect

• (2) Device status information that can be collected

• (3) System information that can be collected

• (4) Hardware information

• (5) Installed software information

• (6) Security information

• (7) Shared management items for asset information and device information

To Page Top

(4) Importing departmental group configurations from Active Directory

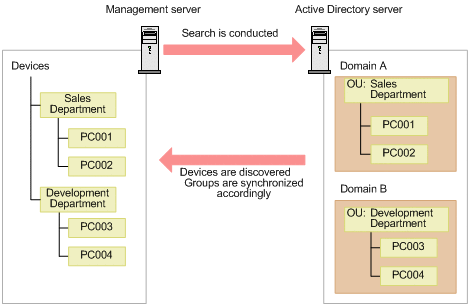

By importing information about the structure of organizational units (OU) from Active Directory, you can synchronize the department hierarchy maintained by JP1/IT Desktop Management 2 with the Active Directory OUs. By actively maintaining the department group configuration managed by Active Directory, you can centrally manage the configuration of managed devices.

JP1/IT Desktop Management 2 imports information about organizational units as part of the search process.

When you specify an organizational unit (root OU) that you want to import from Active Directory, the group configuration for its subordinate OUs is automatically created in the corresponding department group. To import information about department group hierarchies from Active Directory, select Get Department Hierarchy Information in the Active Directory view accessed from the General menu. When this check box is selected, the manager collects department group information when it accesses Active Directory to search for devices. For details on searching Active Directory for devices, see (1) Searching for devices in Active Directory.

The following table shows the effect that importing organizational units (OUs) from Active Directory has on the JP1/IT Desktop Management 2 group configuration.

Active Directory organizational unit (OU)	JP1/IT Desktop Management 2 department group configuration
	Present	Not present
Present	If the name is different, the group name is updated accordingly.	The group is added.
Not present	The group is removed.	No action taken.

Note that changing the department group configuration in JP1/IT Desktop Management 2 does not affect the organizational units (OU) registered on the Active Directory server.

Important

After the import process, do not manually add, change, or remove any part of a department group configuration that is synchronized with Active Directory. Any such changes will be overwritten when organizational unit (OU) information is next imported.

If a managed device belongs to a group that is synchronized with an Active Directory OU, the group affiliation of the device changes in line with the Active Directory OU. If the group to which the device belongs is removed, the device is reassigned to the Unknown group.

Tip

If you specify an upper-level domain and its lower-level domain simultaneously in a domain name attribute, the manager imports information for the organizational unit (OU) of the upper-level domain, which includes the information for lower-level domains.

To Page Top

(5) Cautionary notes for Active Directory linkage

Note the following when linking with Active Directory:

• You cannot acquire information from an organizational unit (OU) that does not contain at least one computer.

• Even if a computer is registered in Active Directory, you cannot acquire device information if the computer is not a JP1/IT Desktop Management 2 management target.

• Only character string data can be acquired from Active Directory.

• You cannot use certain single-byte symbols and tab characters in the name of an OU in Active Directory.^#

#: Do not use the following symbols: !, ", %, ', *, /, : (colon), <, >, ?, @, \, |, +, =, , (comma), or ; (semicolon). The linkage function might not operate correctly if an OU name contains any of these characters.
